SECURITHERM time flow shower panel

Ref. 79230415
Thermostatic time flow
SECURITHERM time flow shower panel

Presentation

DESCRIPTION

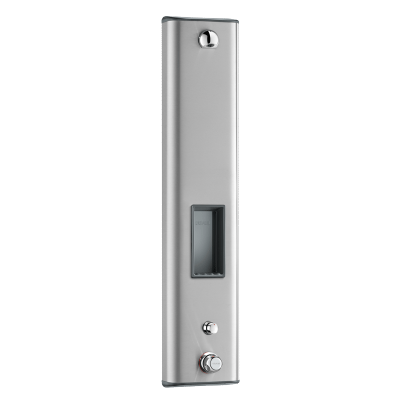

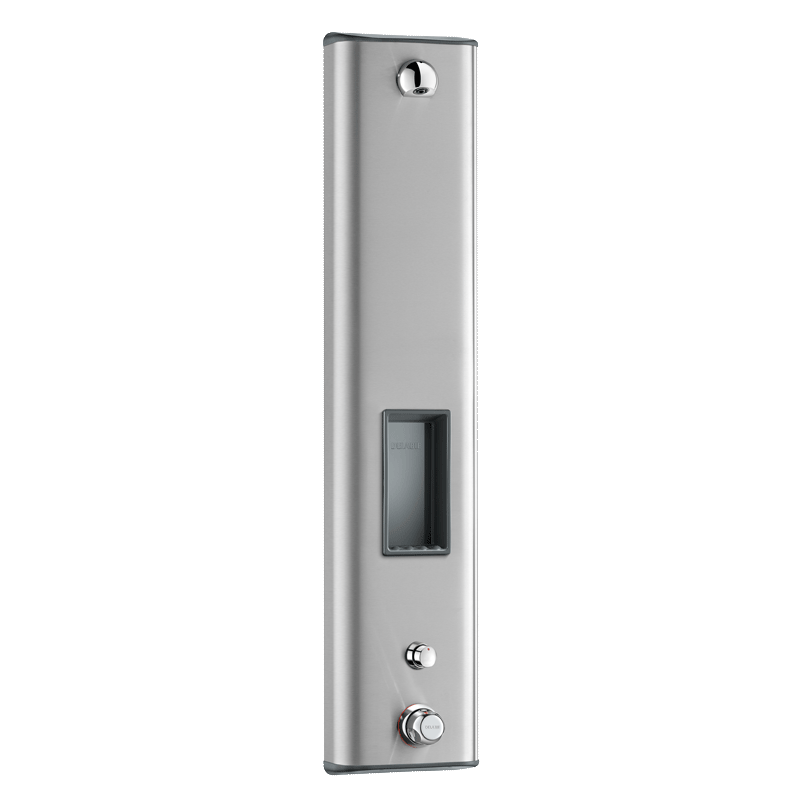

SECURITHERM time flow shower panel

Ref. 79230415
Thermostatic time flow shower panel:
Large model satin stainless steel shower panel for wall mounted, exposed installation.
Top inlet via in-line stopcocks and Ø 15mm conical inlets.
SECURITHERM thermostatic shower mixer.
Adjustable temperature control from cold water up to 41°C.
Anti-scalding safety: automtaic shut-off if cold or hot water supply fails.
Thermal shocks are possible.
Soft-touch operation.
Time flow ~30 seconds.
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant, fixed, ROUND shower head with automatic flow rate regulation.
Integrated soap dish.
Concealed fixings.
Filters and non-return valves.
Suitable for people with reduced mobility
30-year warranty.

ADVANTAGES

Confort - Ergonomie - Déclenchement souple

Thermostatic temperature regulation

Sécurité anti-brûlure

Instant shut-off if cold water fails

Economie d'eau

80% water savings

Anti-vandalisme

Stainless steel panel, brass controls

Characteristics

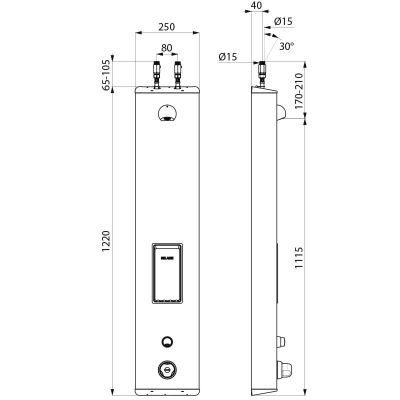

TECHNICAL CHARACTERISTICS

SECURITHERM time flow shower panel

Ref. 79230415
Connector M½'' Ø 15mm
Technology Time flow
Height 1220mm
Depth 100mm
Width 250mm
Flow rate 6 lpm
Temperature limiter Thermostatic
Finish Stainless steel
Warranty 30-Year

Downloads

DOWNLOADS

SECURITHERM time flow shower panel

Ref. 79230415

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

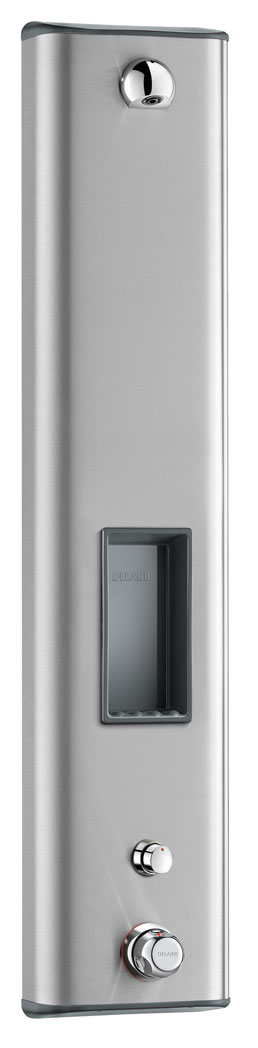

792303 M1/2" top inlet + inline stopcocks, without soap dish
792304 M1/2" top inlet + inline stopcocks, with soap dish
792313 Concealed inlet via M½" flexibles, without soap dish
792314 Concealed inlet via M½" flexibles, with soap dish

VARIANTS

792303 M1/2" top inlet + inline stopcocks, without soap dish
792304 M1/2" top inlet + inline stopcocks, with soap dish
792313 Concealed inlet via M½" flexibles, without soap dish
792314 Concealed inlet via M½" flexibles, with soap dish
