DESCRIPTION

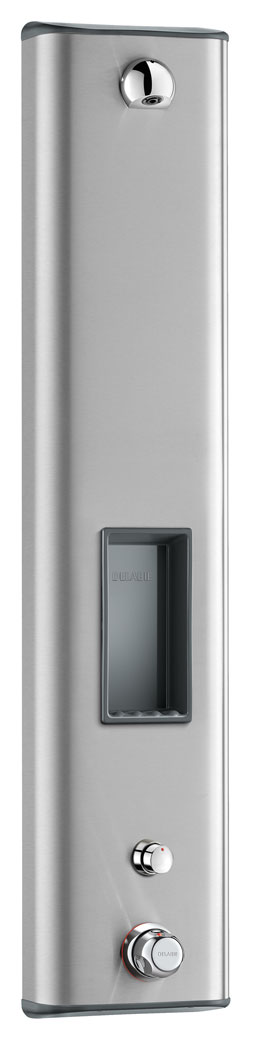

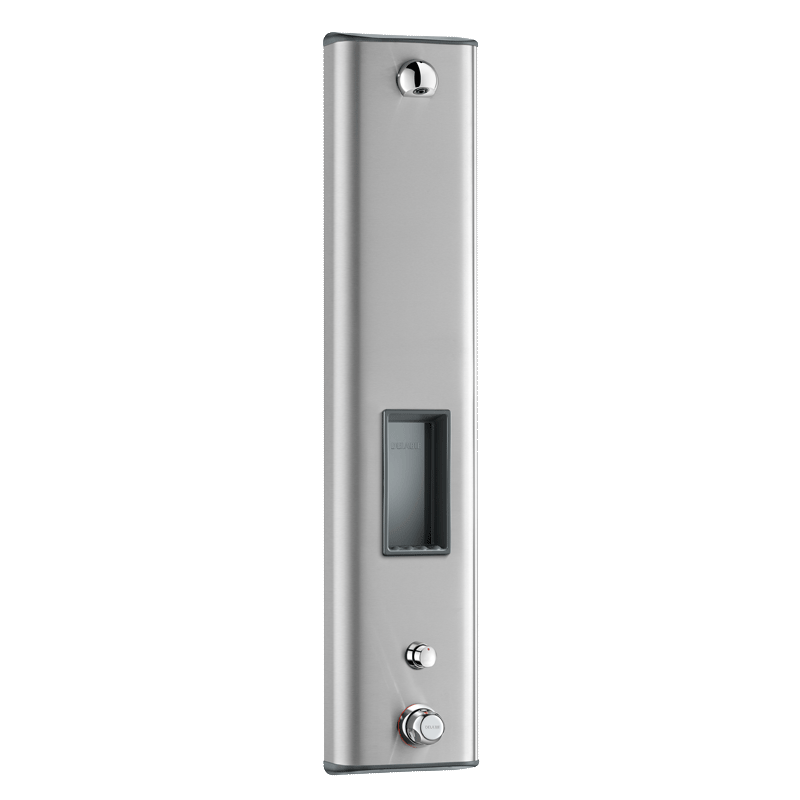

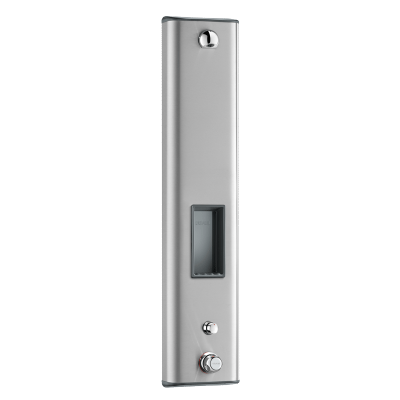

SECURITHERM shower panel
Ref. 792304Thermostatic time flow shower panel:
Large model satin stainless steel shower panel for wall-mouted, exposed installation.
Top inlet via in-line stopcocks M½".
SECURITHERM thermostatic shower mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding failsafe: automatic shut-off if cold water fails.
Anti-cold showers function: automatic shut-off if hot water fails.
Thermal shocks are possible.
Soft-touch operation.
Chrome-plated, tamperproof, scale-resistant, fixed, ROUND shower head with automatic flow rate regulation.
Time flow ~30 seconds.
Flow rate 6 lpm at 3 bar.
Integrated soap dish.
Concealed fixings.
Filters and non-return valves.
Shower panel suitable for people with reduced mobility.
30-year warranty.
Large model satin stainless steel shower panel for wall-mouted, exposed installation.
Top inlet via in-line stopcocks M½".
SECURITHERM thermostatic shower mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding failsafe: automatic shut-off if cold water fails.
Anti-cold showers function: automatic shut-off if hot water fails.
Thermal shocks are possible.
Soft-touch operation.
Chrome-plated, tamperproof, scale-resistant, fixed, ROUND shower head with automatic flow rate regulation.
Time flow ~30 seconds.
Flow rate 6 lpm at 3 bar.
Integrated soap dish.
Concealed fixings.
Filters and non-return valves.
Shower panel suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES
Themostatic control
Instant shut-off if cold water fails
80% water savings
Aluminium panel, brass controls

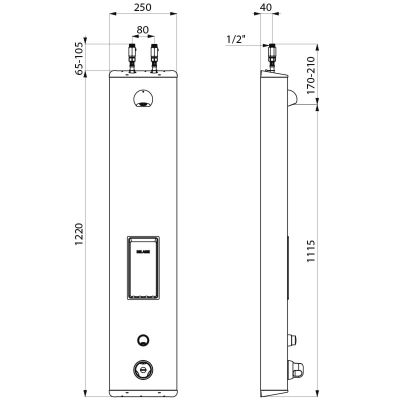

TECHNICAL CHARACTERISTICS
SECURITHERM shower panel
Ref. 792304Connector | M½" |
Technology | Time flow |
Height | 1220mm |
Depth | 100mm |
Width | 250mm |
Flow rate | 6 lpm |
Temperature limiter | Thermostatic |
Finish | Stainless steel |
Certificates | |
Warranty |
VARIANTS
792303 | M1/2" top inlet + inline stopcocks, without soap dish | ||
---|---|---|---|
79230415 | Top Ø 15mm compression fittings with inline stopcocks, with soap dish | ||
792313 | Concealed inlet via M½" flexibles, without soap dish | ||
792314 | Concealed inlet via M½" flexibles, with soap dish |
