DESCRIPTION

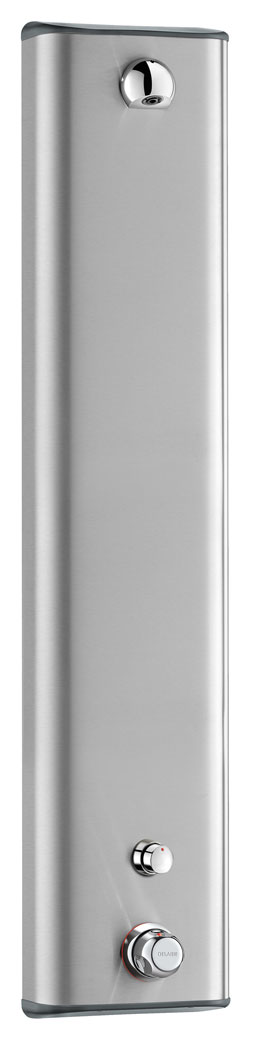

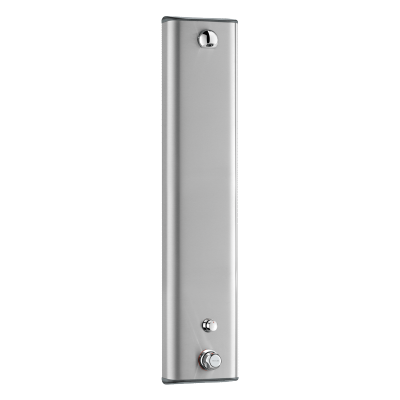

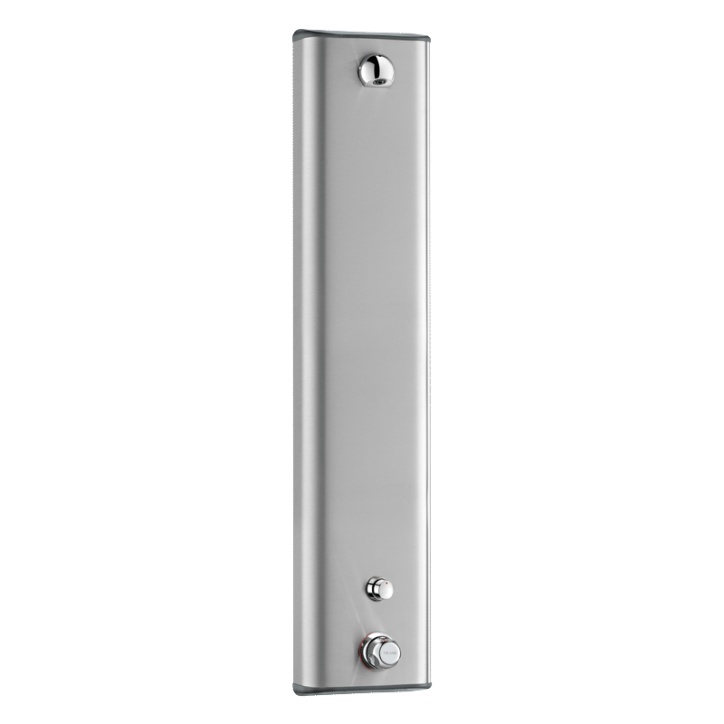

SECURITHERM time flow shower panel
Ref. 792303Thermostatic time flow shower panel:
Large model stainless steel shower panel for wall-mounted, exposed installation.
Top inlet via in-line stopcocks M½".
SECURITHERM thermostatic shower mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding failsafe: automatic shut-off if cold water fails.
Anti-cold showers function: automatic shut-off if hot water fails.
Thermal shocks are possible.
Soft-touch operation.
Chrome-plated, tamperproof, scale-resistant, fixed, ROUND shower head with automatic flow rate regulation.
Time flow ~30 seconds.
Flow rate 6 lpm at 3 bar.
Concealed fixings.
Filters and non-return valves.
Shower panel suitable for people with reduced mobility.
30-year warranty.
Large model stainless steel shower panel for wall-mounted, exposed installation.
Top inlet via in-line stopcocks M½".
SECURITHERM thermostatic shower mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding failsafe: automatic shut-off if cold water fails.
Anti-cold showers function: automatic shut-off if hot water fails.
Thermal shocks are possible.
Soft-touch operation.
Chrome-plated, tamperproof, scale-resistant, fixed, ROUND shower head with automatic flow rate regulation.
Time flow ~30 seconds.
Flow rate 6 lpm at 3 bar.
Concealed fixings.
Filters and non-return valves.
Shower panel suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES
![Confort - Ergonomie - Déclenchement souple](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/3/0/9/2/2903-13-eng-US/confort.png)
Thermostatic control
![Sécurité anti-brûlure](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/1/4/1/3/3141-12-eng-US/antibrulure.png)
Instant shut-off if cold water fails
![Economie d'eau](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/9/5/9/2/2959-12-eng-US/economie-deau.png)
80% water savings
![Anti-vandalisme](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/7/8/8/2/2887-12-eng-US/antivandalisme.png)
Stainless steel panel, brass controls

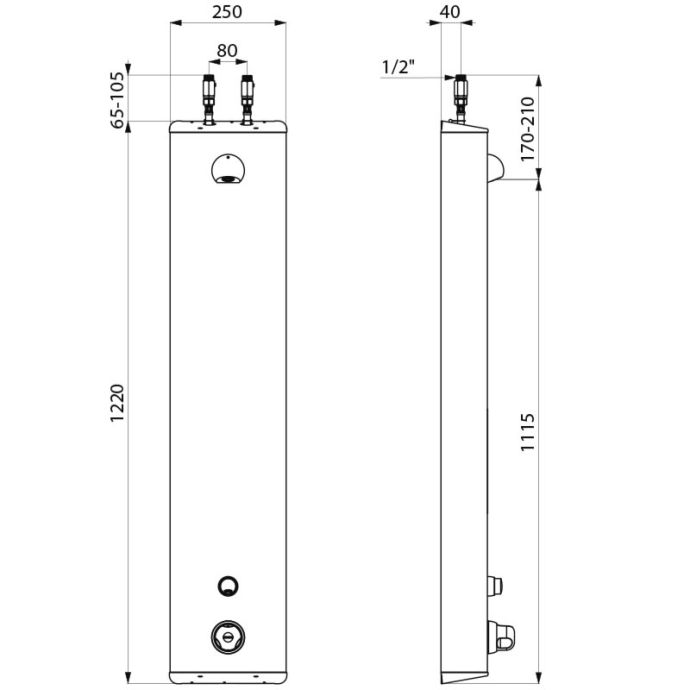

TECHNICAL CHARACTERISTICS
SECURITHERM time flow shower panel
Ref. 792303Connector | M½" |
Technology | Time flow |
Height | 1,220mm |
Depth | 100mm |
Width | 250mm |
Flow rate | 6 lpm |
Temperature limiter | Thermostatic |
Finish | Stainless steel |
Certificates |
![]() ![]() ![]() |
Warranty | ![]() |
VARIANTS
792304 | M1/2" top inlet + inline stopcocks, with soap dish | ||
---|---|---|---|
79230415 | Top Ø 15mm compression fittings with inline stopcocks, with soap dish | ||
792313 | Concealed inlet via M½" flexibles, without soap dish | ||
792314 | Concealed inlet via M½" flexibles, with soap dish |
VARIANTS
792304 | M1/2" top inlet + inline stopcocks, with soap dish | ||
---|---|---|---|
79230415 | Top Ø 15mm compression fittings with inline stopcocks, with soap dish | ||
792313 | Concealed inlet via M½" flexibles, without soap dish | ||
792314 | Concealed inlet via M½" flexibles, with soap dish |
