DESCRIPTION

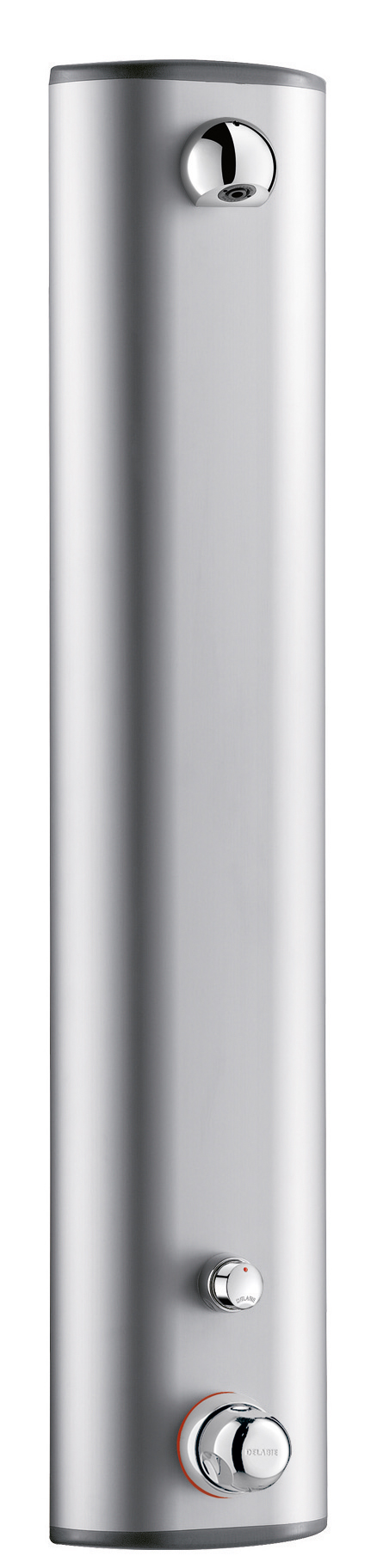

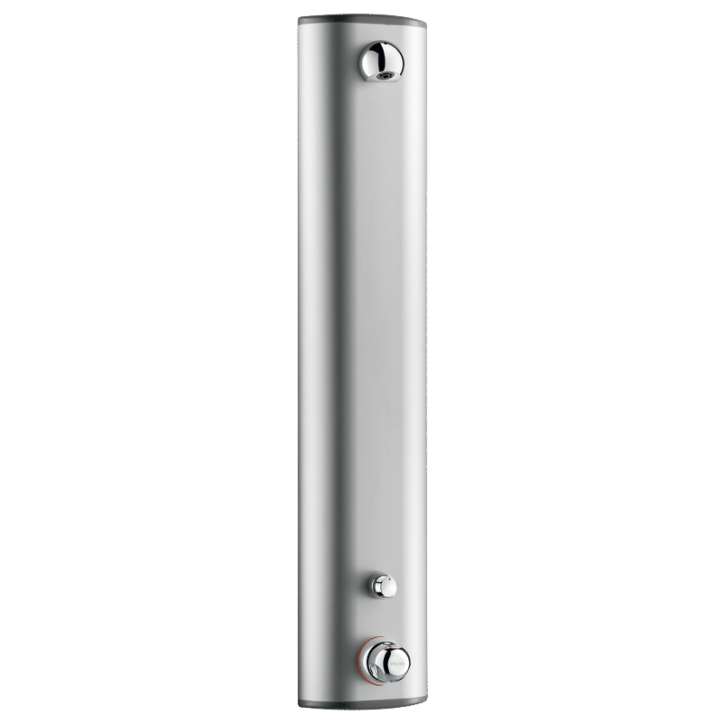

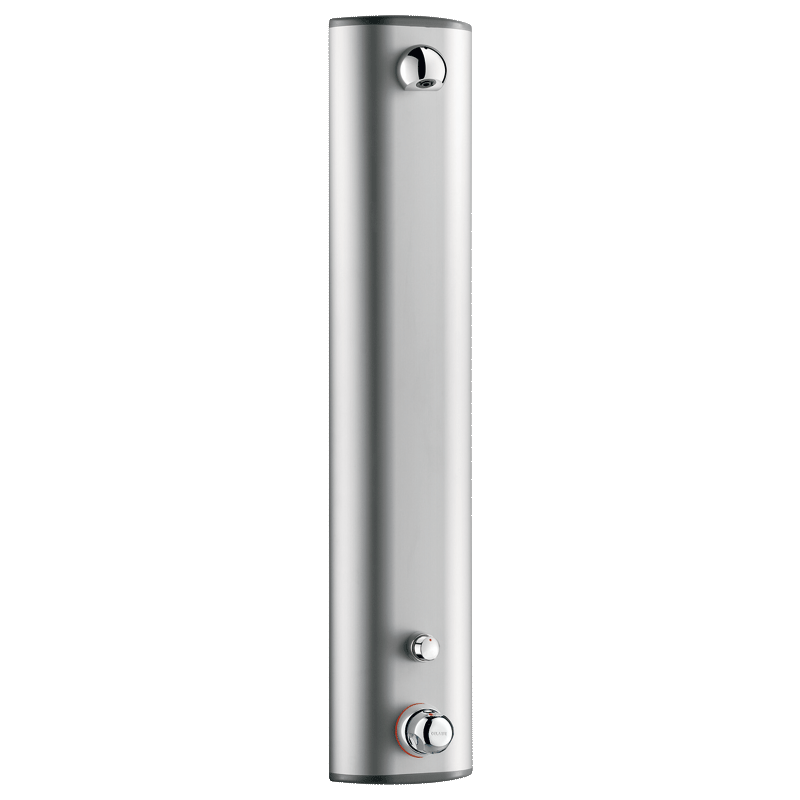

SECURITHERM shower panel
Ref. 79230015Time flow thermostatic shower panel:
Anodised aluminium shower panel for wall-mounted, exposed installation.
Top inlet via in-line stopcocks and conical Ø 15mm inlets.
SECURITHERM thermostatic shower mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C
Anti-scalding safety: automatic shut-off if cold or hot water supply fails.
Anti-cold showers function: automatic shut-off if hot water fails.
Thermal shocks are possible.
Soft-touch operation.
Chrome-plated, tamperproof, scale-resistant, fixed, ROUND shower head with automatic flow rate regulation.
Time flow shower valve ~30 seconds.
Flow rate 6 lpm at 3 bar.
Concealed fixings.
Filters and non-return valves.
Time flow shower panel suitable for people with reduced mobility.
30-year warranty.
Anodised aluminium shower panel for wall-mounted, exposed installation.
Top inlet via in-line stopcocks and conical Ø 15mm inlets.
SECURITHERM thermostatic shower mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C
Anti-scalding safety: automatic shut-off if cold or hot water supply fails.
Anti-cold showers function: automatic shut-off if hot water fails.
Thermal shocks are possible.
Soft-touch operation.
Chrome-plated, tamperproof, scale-resistant, fixed, ROUND shower head with automatic flow rate regulation.
Time flow shower valve ~30 seconds.
Flow rate 6 lpm at 3 bar.
Concealed fixings.
Filters and non-return valves.
Time flow shower panel suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES
Themostatic control
Instant shut-off if cold water supply fails
80% water savings
Aluminium body, brass controls

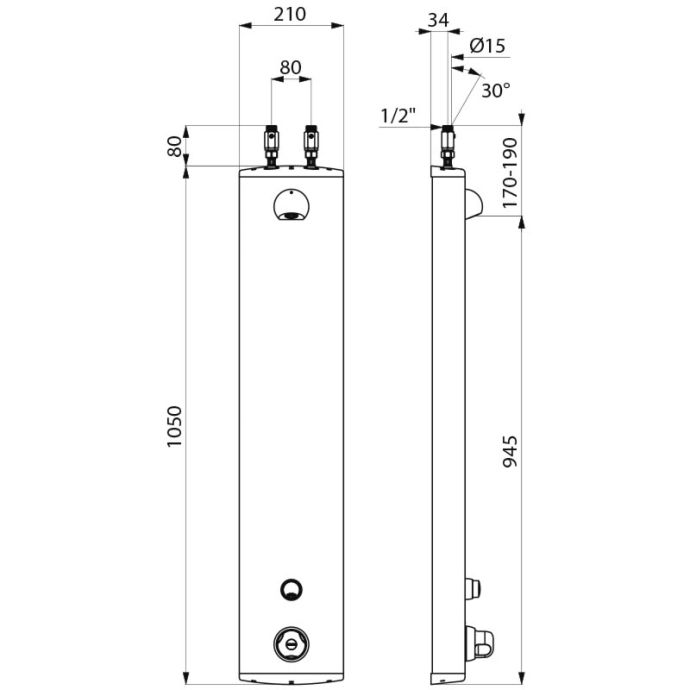

TECHNICAL CHARACTERISTICS
SECURITHERM shower panel
Ref. 79230015| Connector | M½'' Ø 15mm |
| Technology | Time flow |
| Height | 1050mm |
| Depth | 65mm |
| Width | 210mm |
| Flow rate | 6 lpm |
| Temperature limiter | Thermostatic |
| Finish | Aluminium |
| Certificates |
|
| Warranty |
|
VARIANTS
| 792300 | M1/2" top inlet + inline stopcocks | ||
|---|---|---|---|
| 792305 | M1/2" top inlet + inline stopcocks, with soap dish | ||
| 792310 | Concealed inlet via M½" flexibles | ||
| 792310UK | M½" connection for concealed flexibles, UK version |
Associated products
Adjustable height floor trap
For tiles or concrete floors
Ref. 682001UK
Cut-to-size extension
For aluminium shower panel
Ref. 790152
Wall-mounted soap dish
Chrome-plated bright finish
Ref. 710501
VARIANTS
| 792300 | M1/2" top inlet + inline stopcocks | ||
|---|---|---|---|
| 792305 | M1/2" top inlet + inline stopcocks, with soap dish | ||
| 792310 | Concealed inlet via M½" flexibles | ||
| 792310UK | M½" connection for concealed flexibles, UK version |
