DESCRIPTION

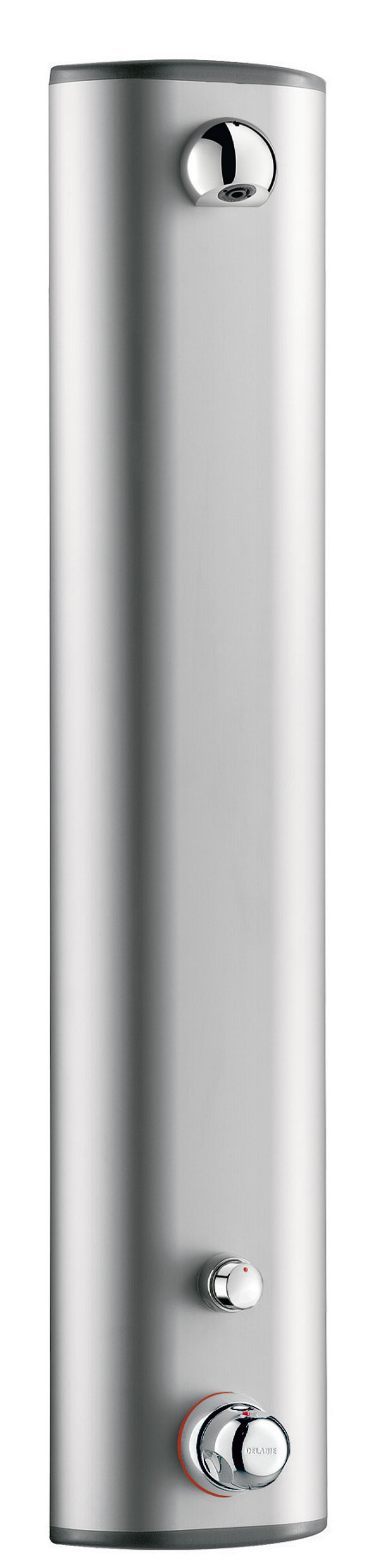

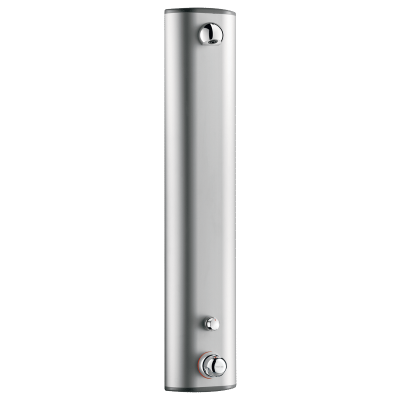

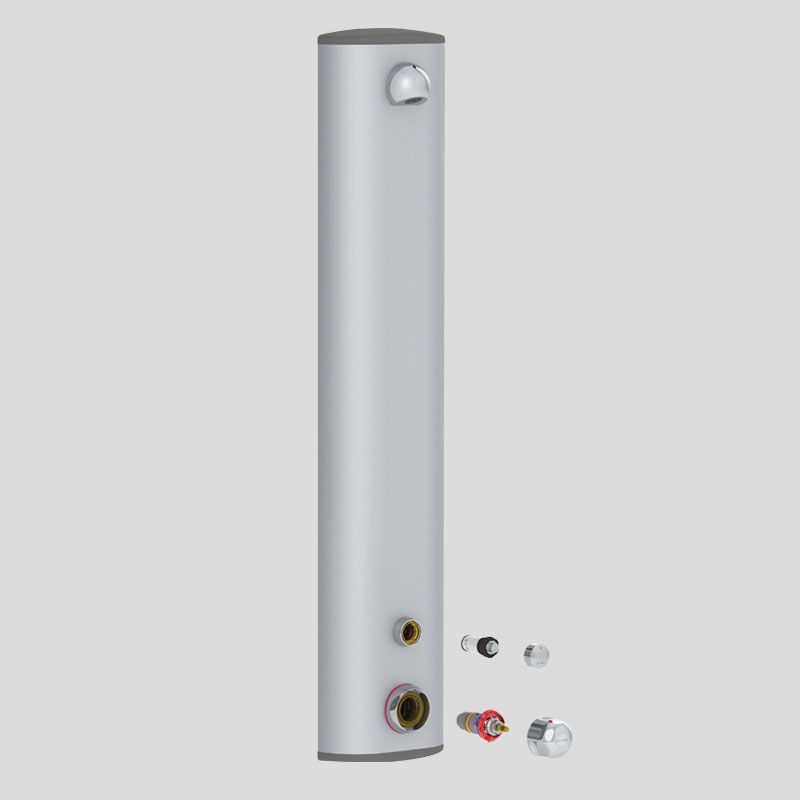

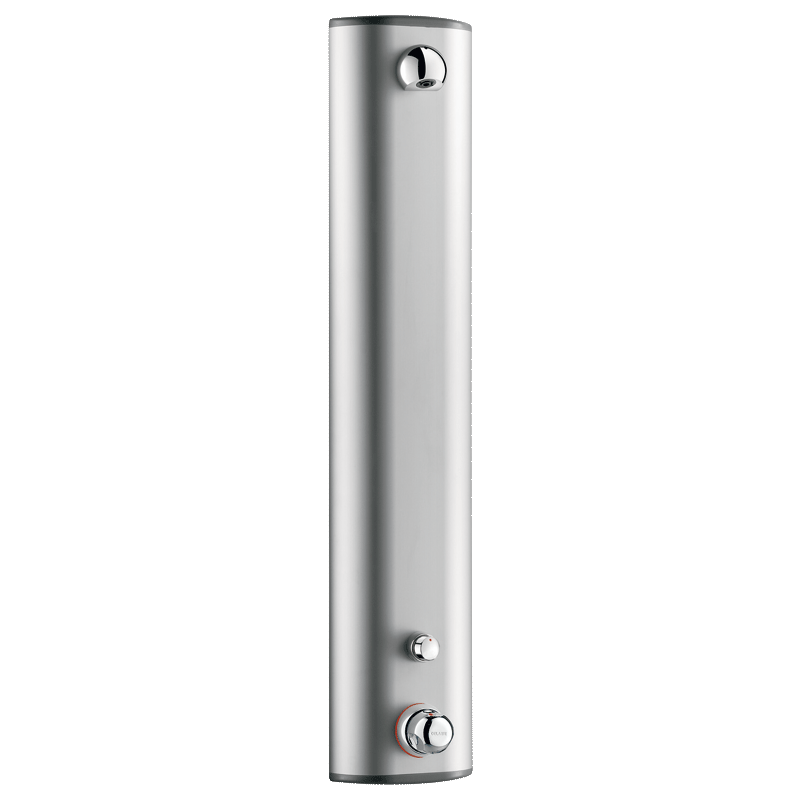

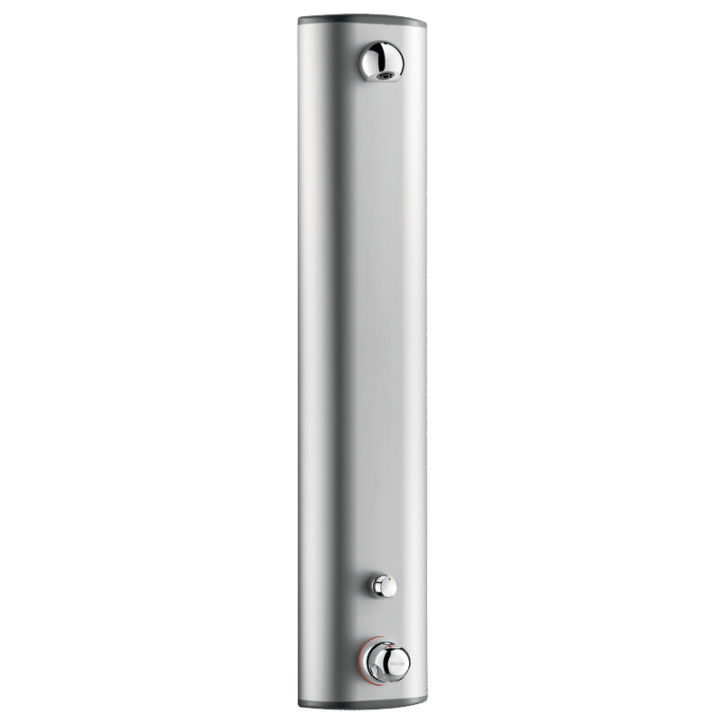

SECURITHERM shower panel
Ref. 792300Thermostatic time flow shower panel:
Anodised aluminium shower panel for wall-mounted, exposed installation.
Top inlet via in-line stopcocks M½".
SECURITHERM thermostatic shower mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding failsafe: automatic shut-off if cold water fails.
Anti-cold showers function: automatic shut-off if hot water fails.
Thermal shocks are possible.
Soft-touch operation.
Chrome-plated, tamperproof, scale-resistant fixed, ROUND shower head with automatic flow rate regulation.
Time flow ~30 seconds.
Flow rate 6 lpm at 3 bar.
Concealed fixings.
Filters and non-return valves.
Time flow shower panel suitable for people with reduced mobility.
30-year warranty.
Anodised aluminium shower panel for wall-mounted, exposed installation.
Top inlet via in-line stopcocks M½".
SECURITHERM thermostatic shower mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding failsafe: automatic shut-off if cold water fails.
Anti-cold showers function: automatic shut-off if hot water fails.
Thermal shocks are possible.
Soft-touch operation.
Chrome-plated, tamperproof, scale-resistant fixed, ROUND shower head with automatic flow rate regulation.
Time flow ~30 seconds.
Flow rate 6 lpm at 3 bar.
Concealed fixings.
Filters and non-return valves.
Time flow shower panel suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES
Thermostatic control
Instant shut-off if cold water fails
80% water savings
Panel made from aluminium and controls from brass

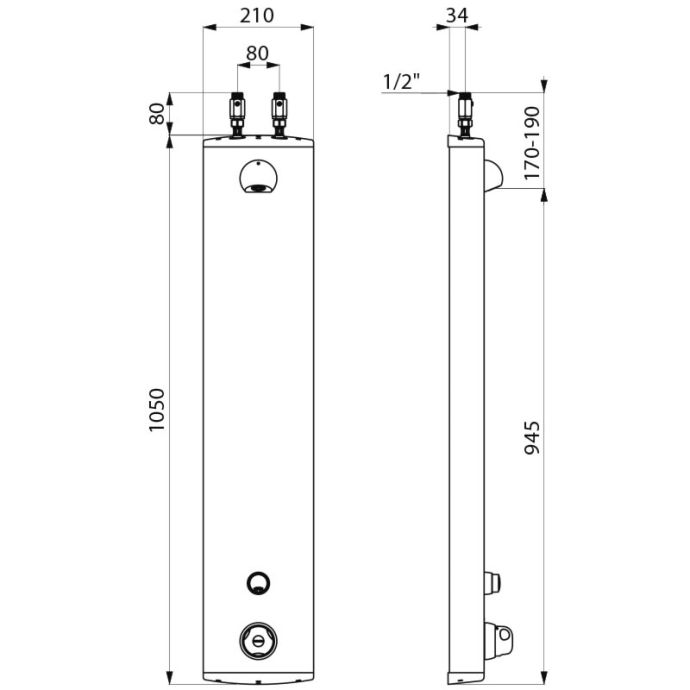

TECHNICAL CHARACTERISTICS
SECURITHERM shower panel
Ref. 792300| Connector | M½" |
| Technology | Time flow |
| Height | 1050mm |
| Depth | 65mm |
| Width | 210mm |
| Flow rate | 6 lpm |
| Temperature limiter | Thermostatic |
| Finish | Aluminium |
| Certificates |
|
| Warranty |
|
| Repairability |  |
Spare parts

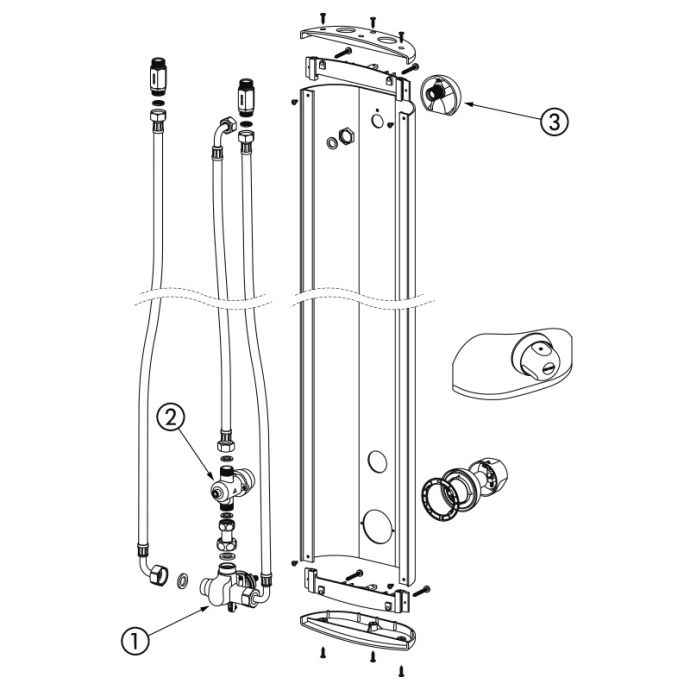

SPARE PARTS
SECURITHERM shower panel
Ref. 792300
| 1. | 743792 |
|
Thermostatic cartridge for showers |
| 2. | 743743 |
|
Shower cartridge |
| 3. | 714BE |
|
Recessed nozzle |
VARIANTS
| 79230015 | Top Ø 15mm compression fittings with inline stopcocks | ||
|---|---|---|---|
| 792305 | M1/2" top inlet + inline stopcocks, with soap dish | ||
| 792310 | Concealed inlet via M½" flexibles | ||
| 792310UK | M½" connection for concealed flexibles, UK version |
Associated products
Adjustable height floor trap
For tiles or concrete floors
Ref. 682001UK
Cut-to-size extension
For aluminium shower panel
Ref. 790152
Wall-mounted soap dish
Chrome-plated bright finish
Ref. 710501
VARIANTS
| 79230015 | Top Ø 15mm compression fittings with inline stopcocks | ||
|---|---|---|---|
| 792305 | M1/2" top inlet + inline stopcocks, with soap dish | ||
| 792310 | Concealed inlet via M½" flexibles | ||
| 792310UK | M½" connection for concealed flexibles, UK version |
