Mechanical shower panel

Ref. 79130015
Mechanical
Mechanical shower panel

Presentation

DESCRIPTION

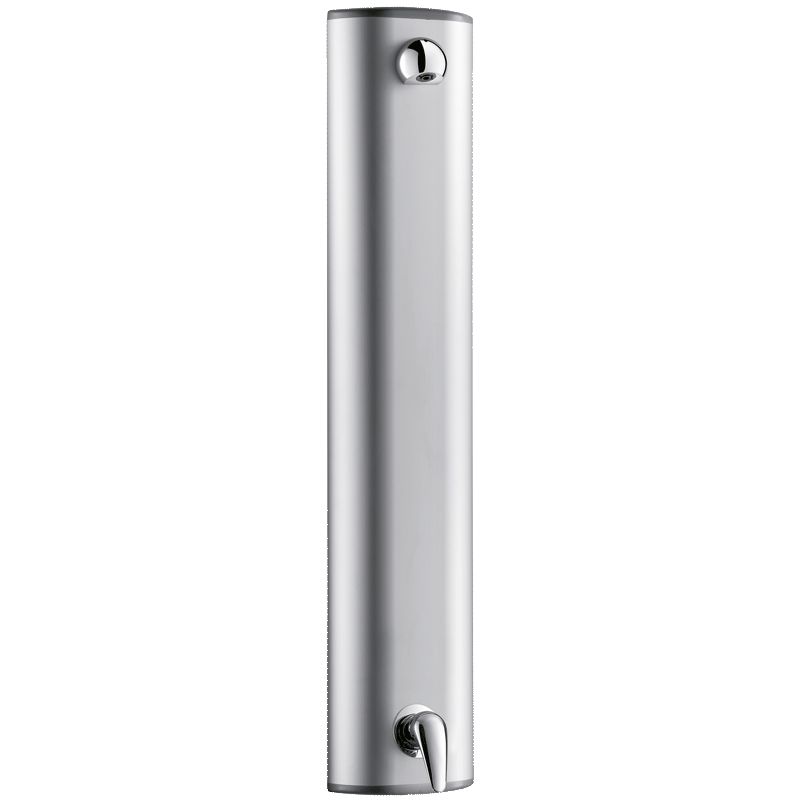

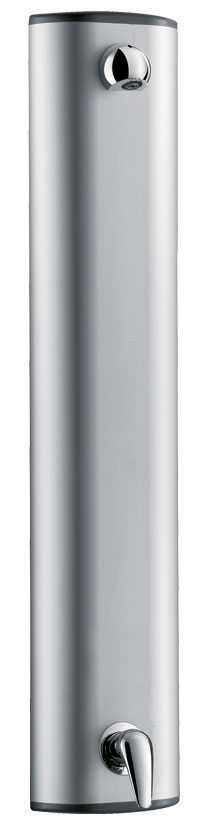

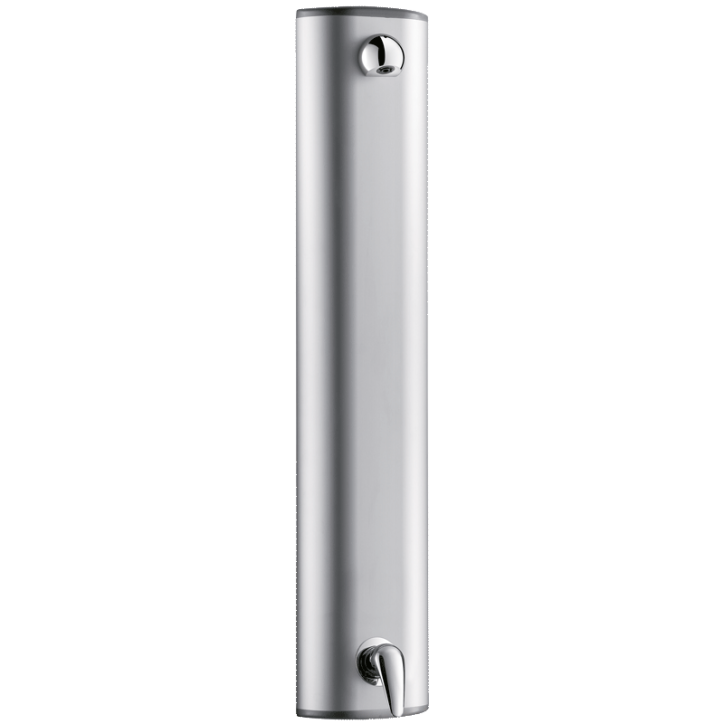

Mechanical shower panel

Ref. 79130015
Mechanical shower panel with single control mixer and fixed shower head:
Anodised aluminium shower panel for wall-mounted, exposed installation.
Top inlet via in-line stopcocks and conical Ø 15mm inlets.
Non-time flow mechanical mixer.
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
Concealed fixings.
Filters.
Suitable for people with reduced mobility.
30-year warranty.

ADVANTAGES

Economie d'eau

70% water savings

Anti-vandalisme

Aluminium body, brass controls

Confort - Ergonomie - Déclenchement souple

Temperature selection on mixer

Characteristics

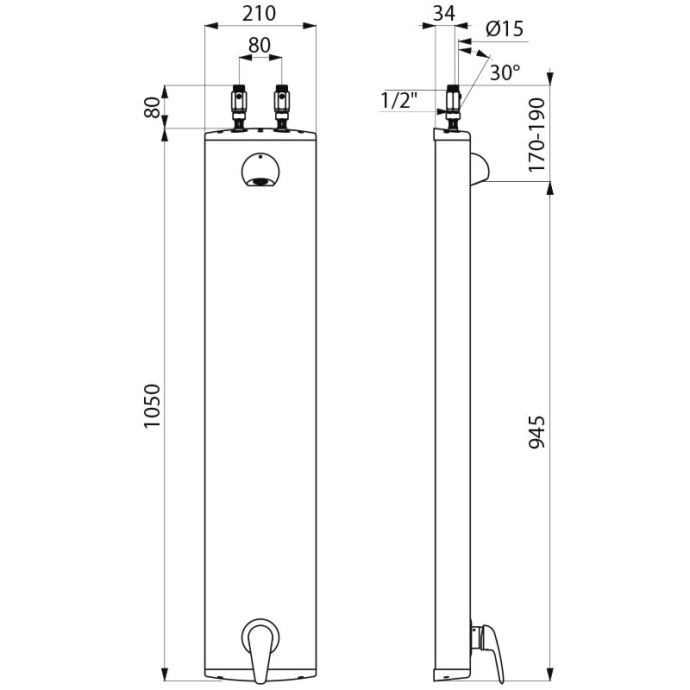

TECHNICAL CHARACTERISTICS

Mechanical shower panel

Ref. 79130015
Connector M½" Ø 15mm
Technology Non-time flow
Height 1,050mm
Depth 65mm
Width 210mm
Flow rate 6 lpm
Finish Aluminium
Warranty 30-Year
Mechanical shower panel
Ref. 79130015

Downloads

DOWNLOADS

Mechanical shower panel

Ref. 79130015

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

791300 M1/2" top inlet with inline stopcocks
