Mechanical shower panel

Ref. 791300
Mechanical
See variants See variants
Mechanical shower panel

Presentation

DESCRIPTION

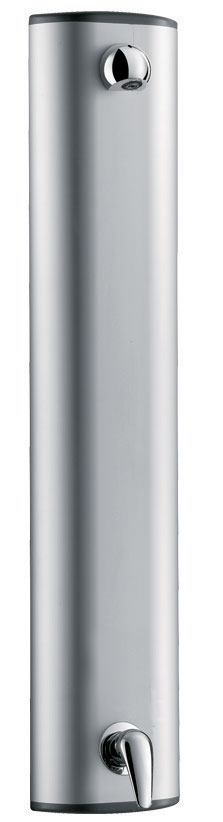

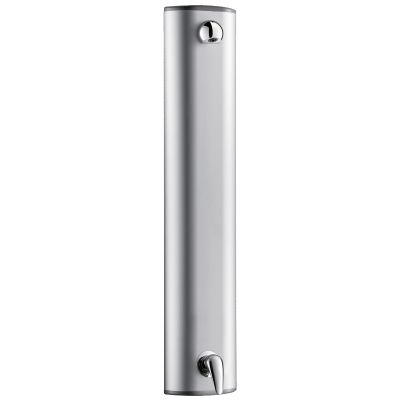

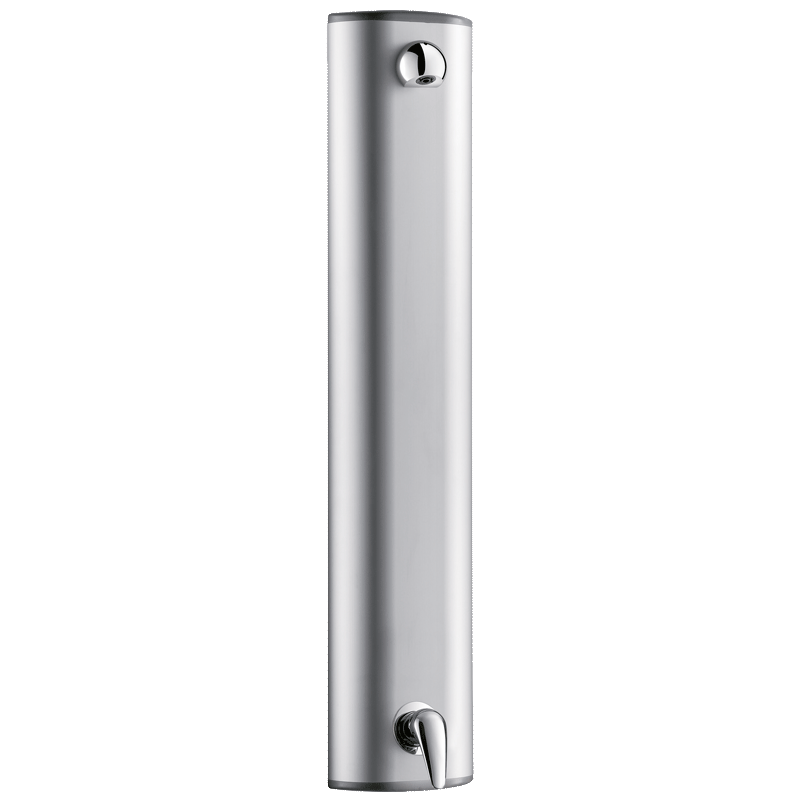

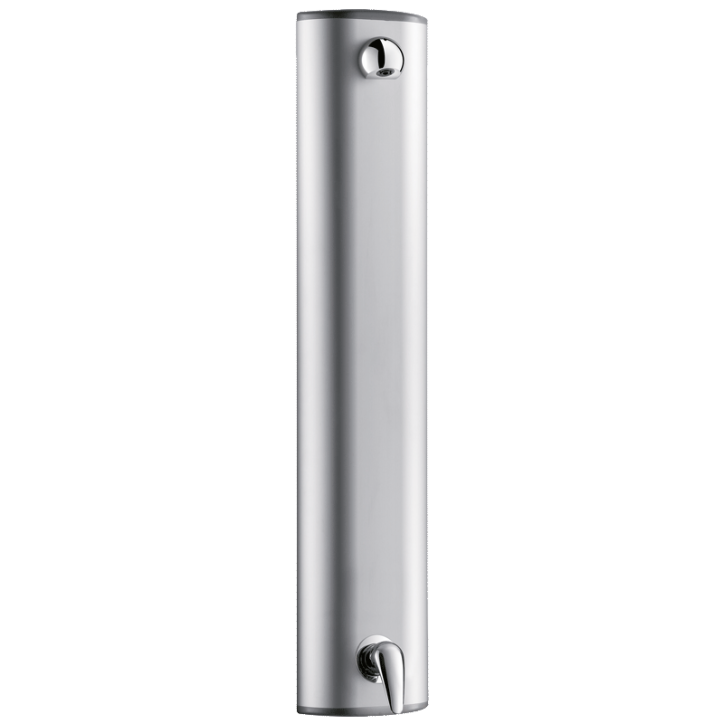

Mechanical shower panel

Ref. 791300
Aluminium shower panel with single control mixer and fixed shower head:
Anodised aluminium shower panel for wall-mounted, exposed.
Top inlet via in-line stopcocks M½".
Mechanical mixer without time flow.
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
Concealed fixings.
Filters.
Suitable for people with reduced mobility.
30-year warranty.

ADVANTAGES

Economie d'eau

70% water savings

Anti-vandalisme

Aluminium panel, brass controls

Confort - Ergonomie - Déclenchement souple

Temperature control on mixer

Characteristics

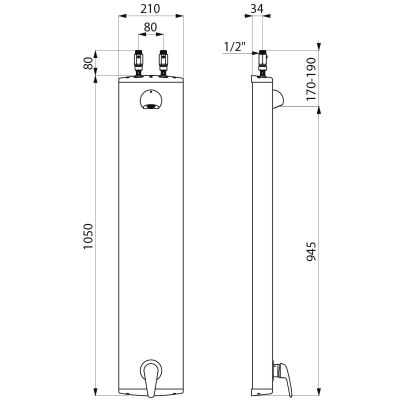

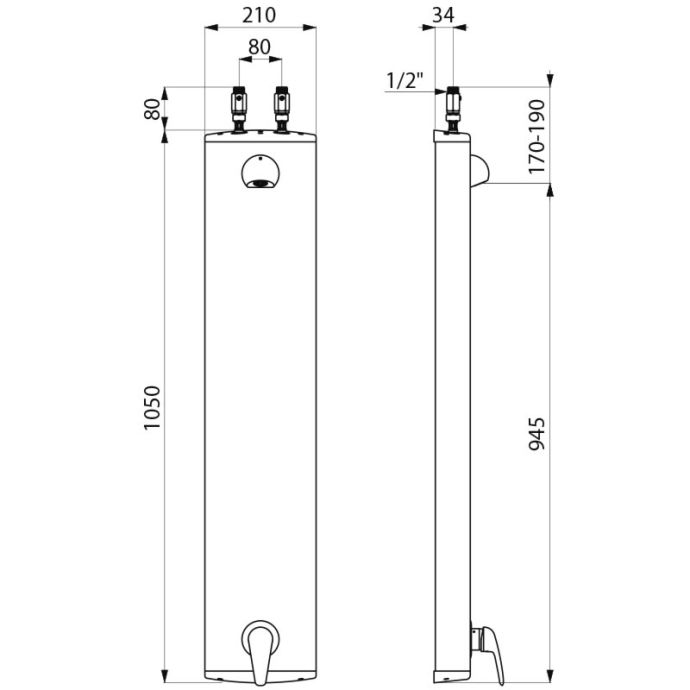

TECHNICAL CHARACTERISTICS

Mechanical shower panel

Ref. 791300
Connector M½"
Technology Non-time flow
Height 1,050mm
Depth 65mm
Width 210mm
Flow rate 6 lpm
Finish Aluminium
Certificates ACS Logo PZH Logo DoP
Warranty 30-Year
Mechanical shower panel
Ref. 791300

Downloads

DOWNLOADS

Mechanical shower panel

Ref. 791300

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

79130015 Top Ø 15mm compression fittings with inline stopcocks
