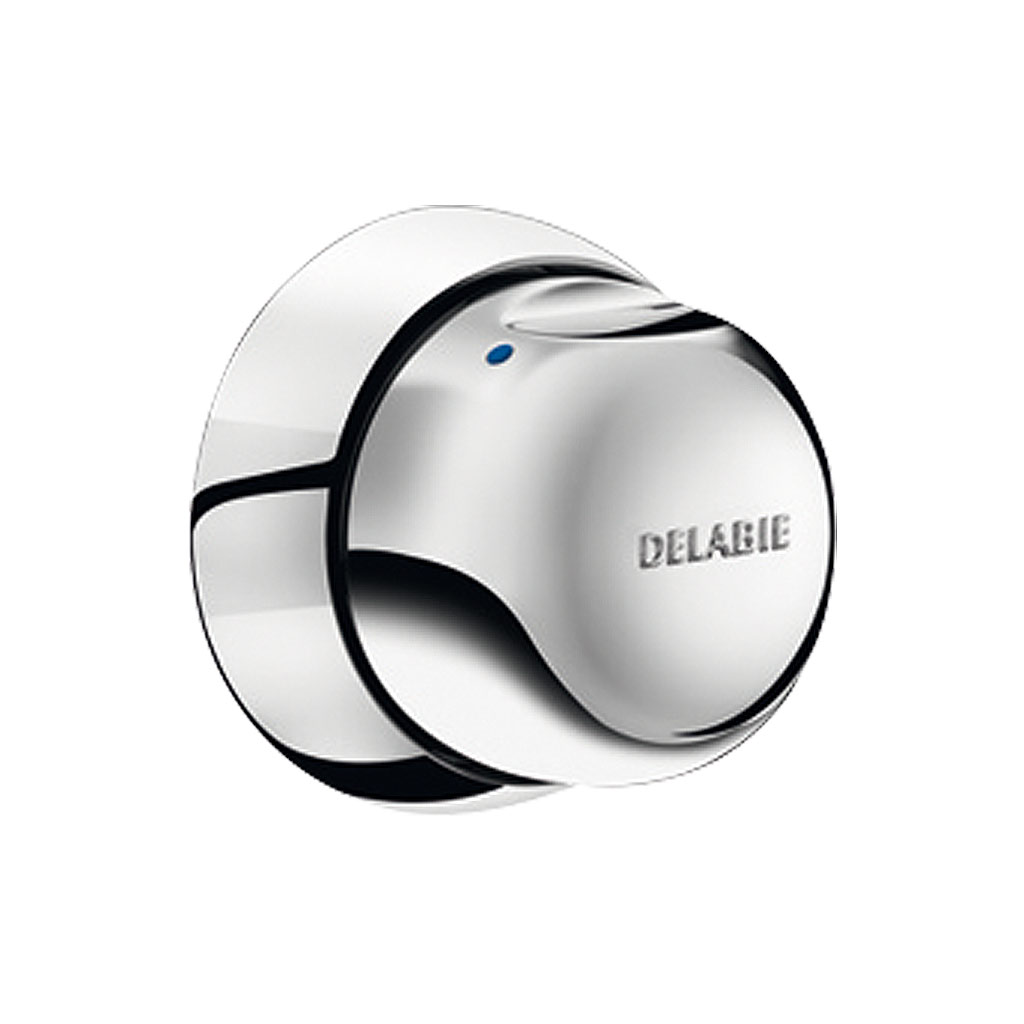

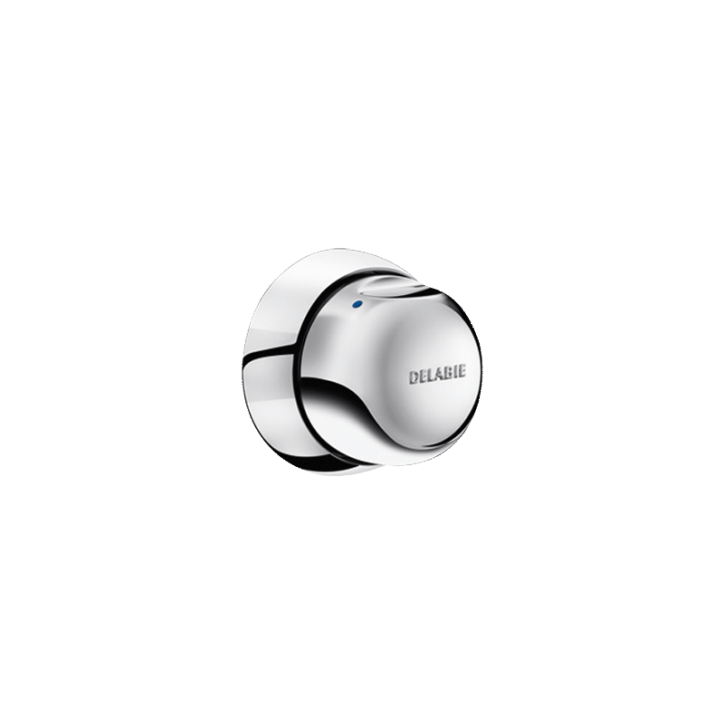

TEMPOMIX time flow shower mixer

Ref. 790970
Single control time flow
TEMPOMIX time flow shower mixer

Presentation

DESCRIPTION

TEMPOMIX time flow shower mixer

Ref. 790970
Exposed time flow shower mixer:
TEMPOMIX ¾" single control mixer.
For panels 1 - 10mm.
Temperature control and operation via the push-button.
Maximum temperature limiter (can be adjusted by the installer).
Soft-touch operation.
Time flow ~30 seconds.
Flow rate 12 lpm at 3 bar, can be adjusted.
Chrome-plated solid brass.
Integrated non-return valves and filters.
Chrome-plated metal push-button.
30-year warranty.

ADVANTAGES

Endurance - Fiabilité

System tested to over 500,000 operations

Confort - Ergonomie - Déclenchement souple

Soft-touch operation

Characteristics

TECHNICAL CHARACTERISTICS

TEMPOMIX time flow shower mixer

Ref. 790970
Connector ¾"
Technology Time flow
Flow rate 12 lpm
Certificates ACS Logo Belgaqua DVGW Logo PZH Logo DoP Logo HKWSD
Warranty 30-Year

Downloads

DOWNLOADS

Mitigeur de douche temporisé TEMPOMIX

Ref. 790970

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

790000 inline unions 90mm centres, M3/4"
790874 Elbow unions 150mm centres, M3/4"
790975 For panels from 8 to 16mm, M3/4"

VARIANTS

790000 inline unions 90mm centres, M3/4"
790874 Elbow unions 150mm centres, M3/4"
790975 For panels from 8 to 16mm, M3/4"
