DESCRIPTION

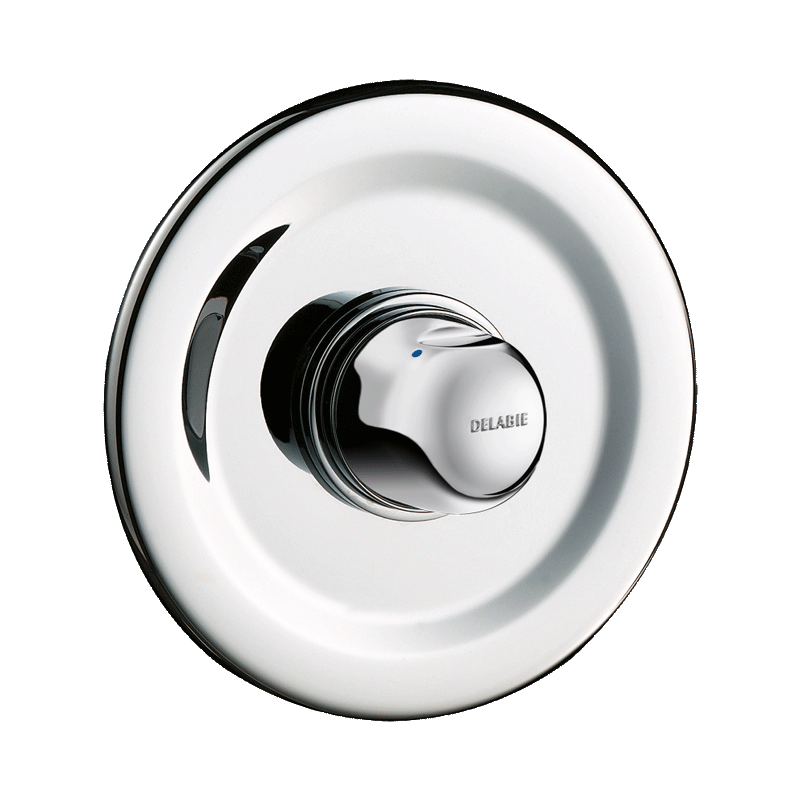

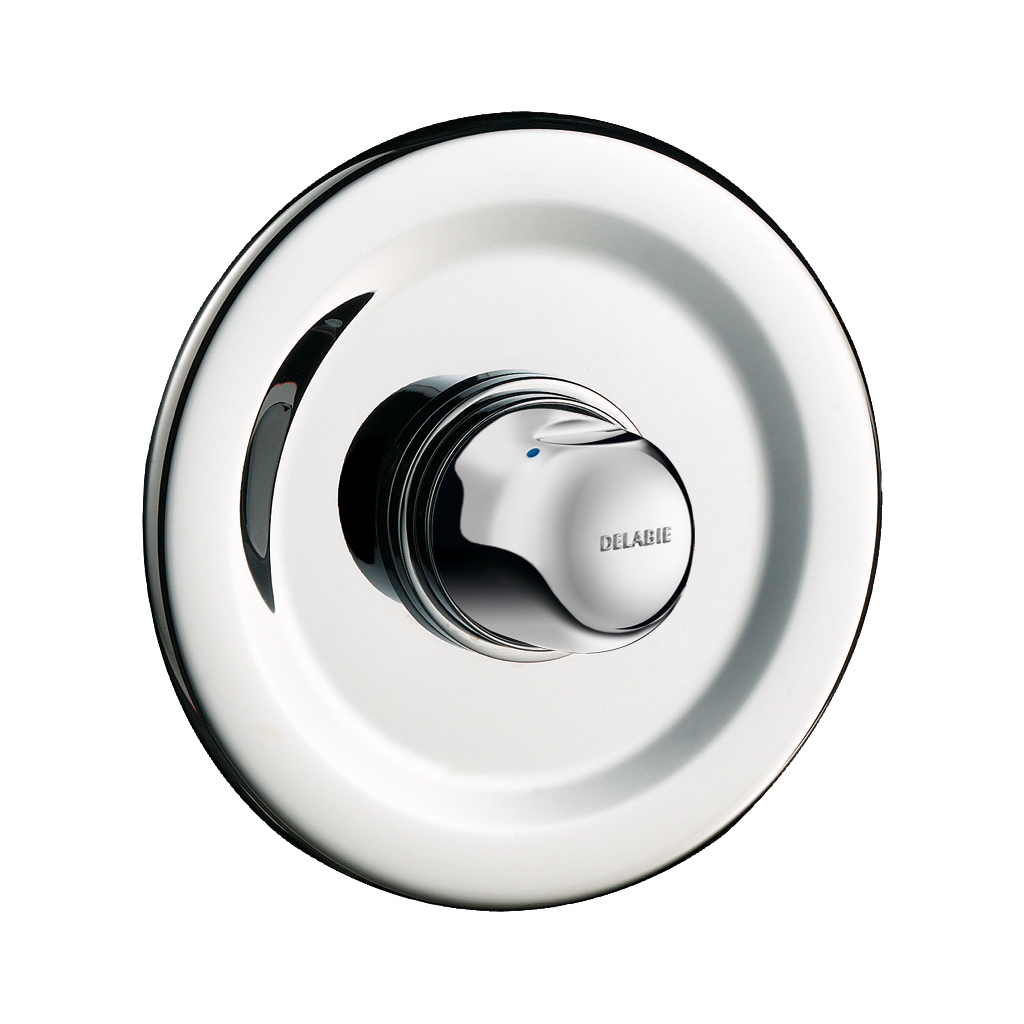

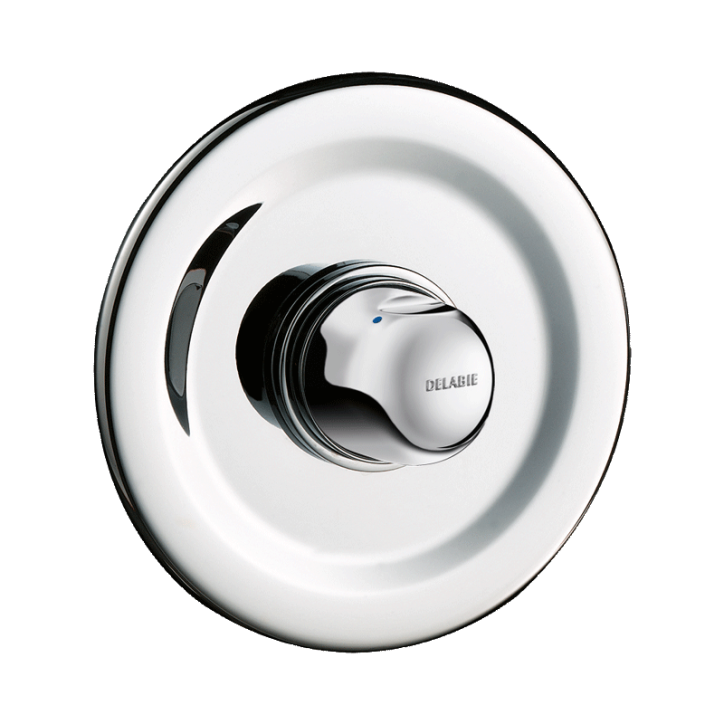

TEMPOMIX time flow shower mixer
Ref. 790927Recessed time flow shower mixer:
Chrome-plated metal wall plate Ø 195mm.
Standard recessing housing.

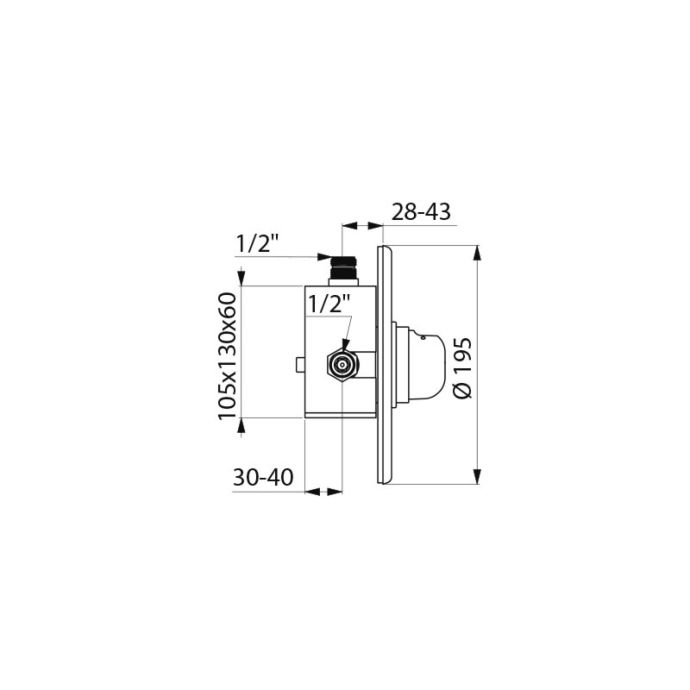

Recessing depth can be adjusted from 28 - 43mm.
TEMPOMIX ¾" single control mixer.
Ligature-resistant collar.
Temperature control and operation via the push-button.
Maximum temperature limiter (can be adjusted by the installer).
Time flow ~30 seconds.
Flow rate 12 lpm at 3 bar.
M½" connectors for Ø 14mm copper tubes.
Chrome-plated metal control.
Integrated non-return valves and filters.
30-year warranty.
This model does not have a waterproof recessing box. The installer must ensure that the recessing area is waterproof and any leaks or condensates can drain away (see installation guide).
Chrome-plated metal wall plate Ø 195mm.
Standard recessing housing.
Recessing depth can be adjusted from 28 - 43mm.
TEMPOMIX ¾" single control mixer.
Ligature-resistant collar.
Temperature control and operation via the push-button.
Maximum temperature limiter (can be adjusted by the installer).
Time flow ~30 seconds.
Flow rate 12 lpm at 3 bar.
M½" connectors for Ø 14mm copper tubes.
Chrome-plated metal control.
Integrated non-return valves and filters.
30-year warranty.
This model does not have a waterproof recessing box. The installer must ensure that the recessing area is waterproof and any leaks or condensates can drain away (see installation guide).
ADVANTAGES
![Anti-vandalisme](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/7/8/8/2/2887-12-eng-US/antivandalisme.png)
Wall recessed installation
![Endurance - Fiabilité](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/3/7/9/2/2973-12-eng-US/endurance.png)
Time flow system tested to over 500,000 operations
![Confort - Ergonomie - Déclenchement souple](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/3/0/9/2/2903-13-eng-US/confort.png)
Soft-touch operation
TECHNICAL CHARACTERISTICS
TEMPOMIX time flow shower mixer
Ref. 790927Connector | ½" |
Technology | Time flow |
Flow rate | 12 lpm |
Certificates |
![]() ![]() ![]() ![]() ![]() |
Warranty | ![]() |
VARIANTS
790925 | M½" connection Ø 15mm for copper tails, st st plate Ø 195, 12 lpm |
---|
VARIANTS
790925 | M½" connection Ø 15mm for copper tails, st st plate Ø 195, 12 lpm |
---|
