DESCRIPTION

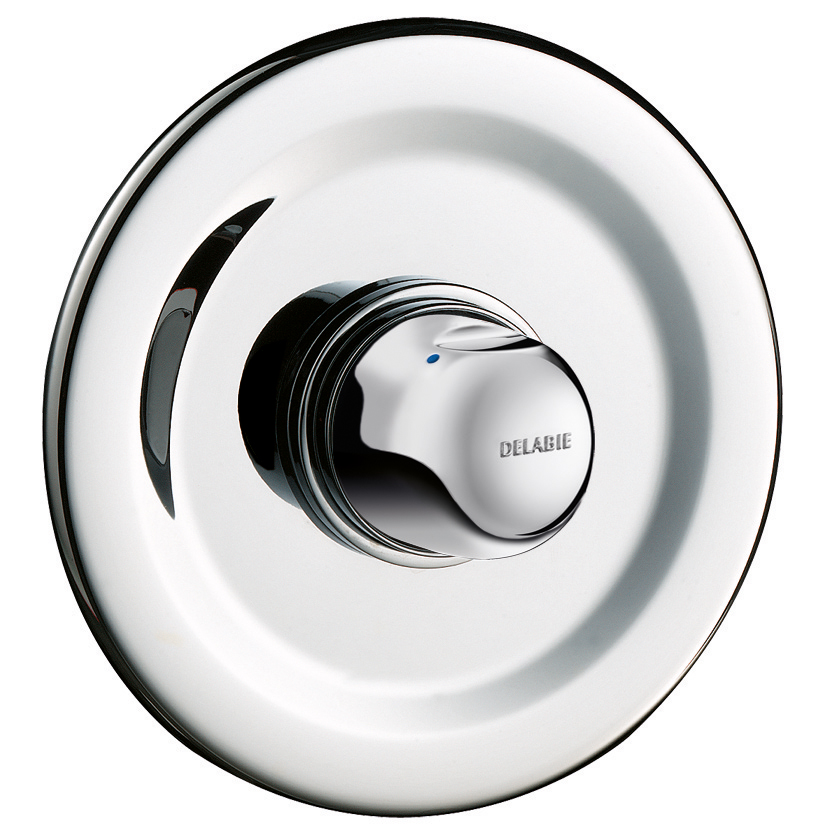

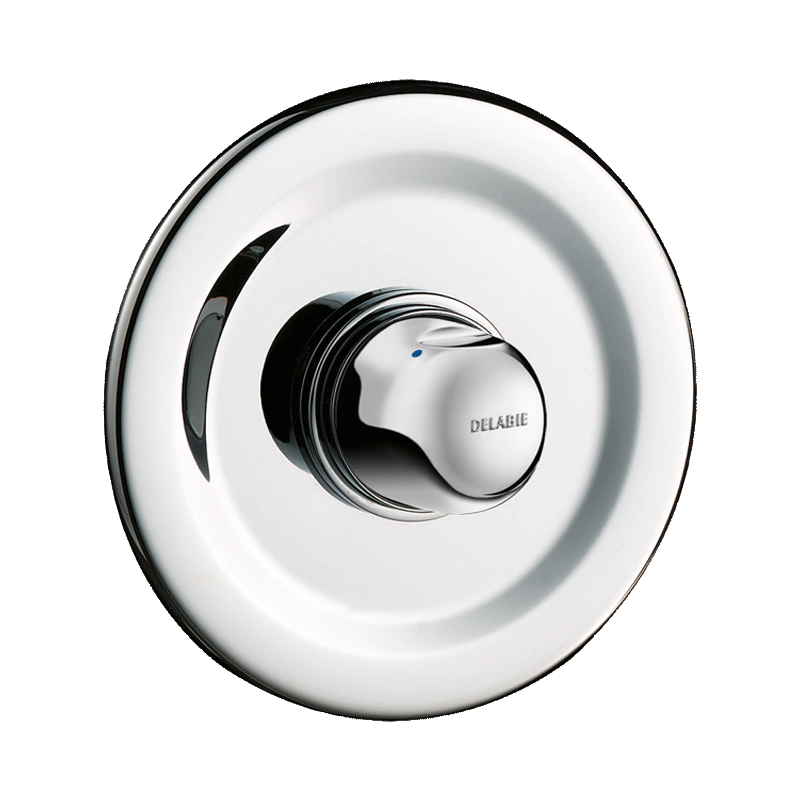

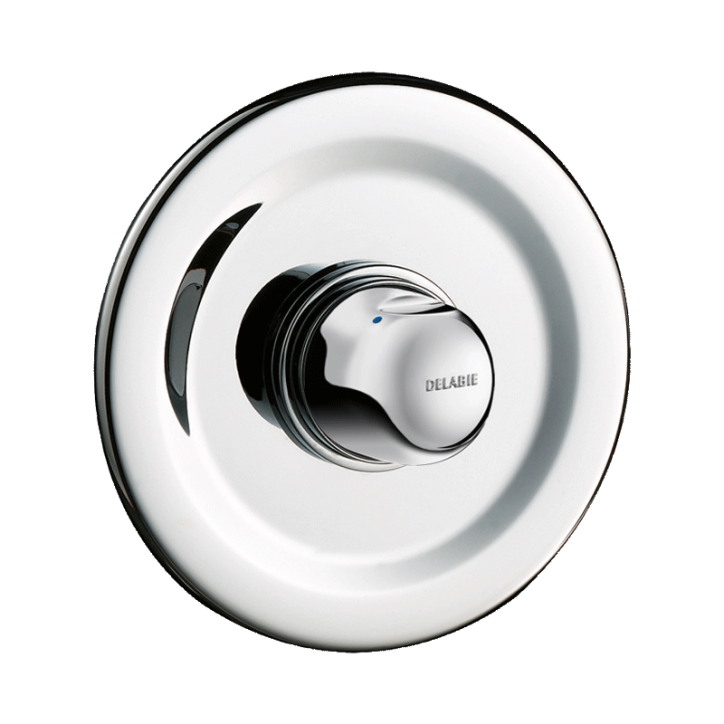

TEMPOMIX time flow shower mixer
Ref. 790925Recessed time flow shower kit:
Chrome-plated Ø 195mm wall plate.
Standard recessing housing.

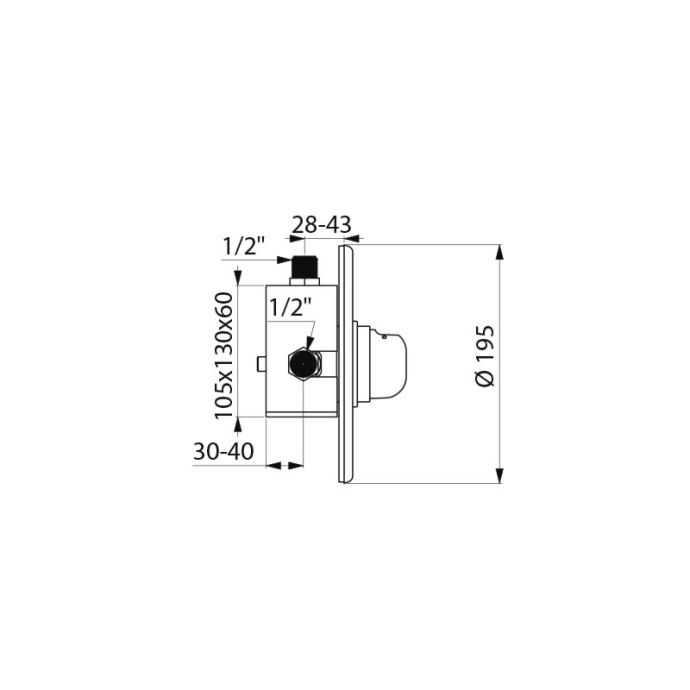

Recessing depth adjustable from 28 - 43mm.
TEMPOMIX ¾" single control mixer.
Ligature-resistant collar.
Temperature control and operation via the push-button.
Maximum temperature limiter (can be adjusted by the installer).
Time flow ~30 seconds, soft-touch operation.
Flow rate 12 lpm at 3 bar.
M½" connectors for Ø 15mm copper tubes.
Integrated non-return valves and filters.
Chrome-plated metal control.
30-year warranty.
As this model does not come with waterproof recessing housing the installer must ensure the watertightness of the recessing area and allow for run-off of leaks and condensation (see installation guide).
Chrome-plated Ø 195mm wall plate.
Standard recessing housing.
Recessing depth adjustable from 28 - 43mm.
TEMPOMIX ¾" single control mixer.
Ligature-resistant collar.
Temperature control and operation via the push-button.
Maximum temperature limiter (can be adjusted by the installer).
Time flow ~30 seconds, soft-touch operation.
Flow rate 12 lpm at 3 bar.
M½" connectors for Ø 15mm copper tubes.
Integrated non-return valves and filters.
Chrome-plated metal control.
30-year warranty.
As this model does not come with waterproof recessing housing the installer must ensure the watertightness of the recessing area and allow for run-off of leaks and condensation (see installation guide).
ADVANTAGES
![Anti-vandalisme](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/7/8/8/2/2887-12-eng-US/antivandalisme.png)
Recessed wall installation
![Endurance - Fiabilité](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/3/7/9/2/2973-12-eng-US/endurance.png)
Time flow system tested to 500,000+ operations
![Confort - Ergonomie - Déclenchement souple](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/3/0/9/2/2903-13-eng-US/confort.png)
Soft-touch operation
TECHNICAL CHARACTERISTICS
TEMPOMIX time flow shower mixer
Ref. 790925Connector | M1/2'' Ø 15mm |
Technology | Time flow |
Flow rate | 12 lpm |
Certificates |
![]() ![]() ![]() ![]() |
Warranty | ![]() |
VARIANTS
790927 | Mixer & waterproof housing, M1/2", st st. escutcheon Ø 195mm, 12 lpm |
---|
VARIANTS
790927 | Mixer & waterproof housing, M1/2", st st. escutcheon Ø 195mm, 12 lpm |
---|
