TEMPOMIX time flow shower mixer

Ref. 790874
Single control time flow

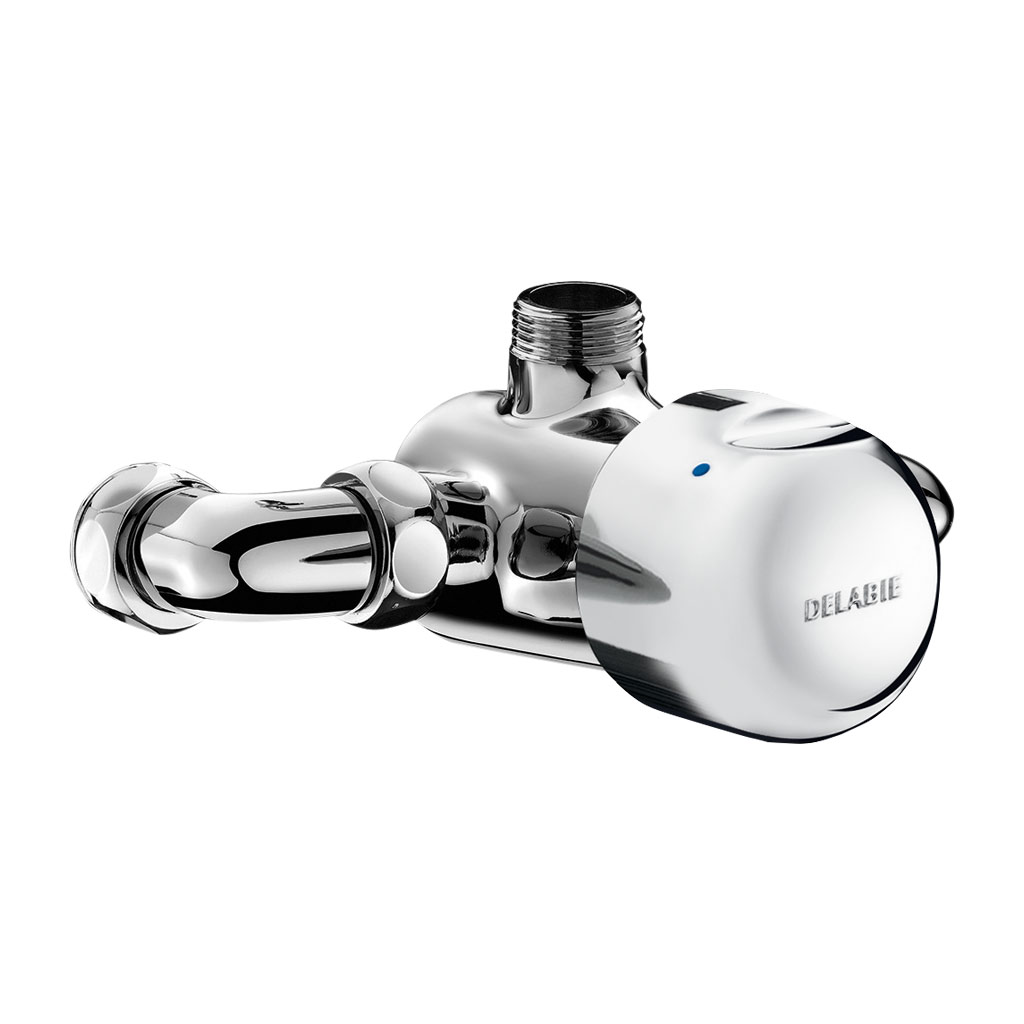

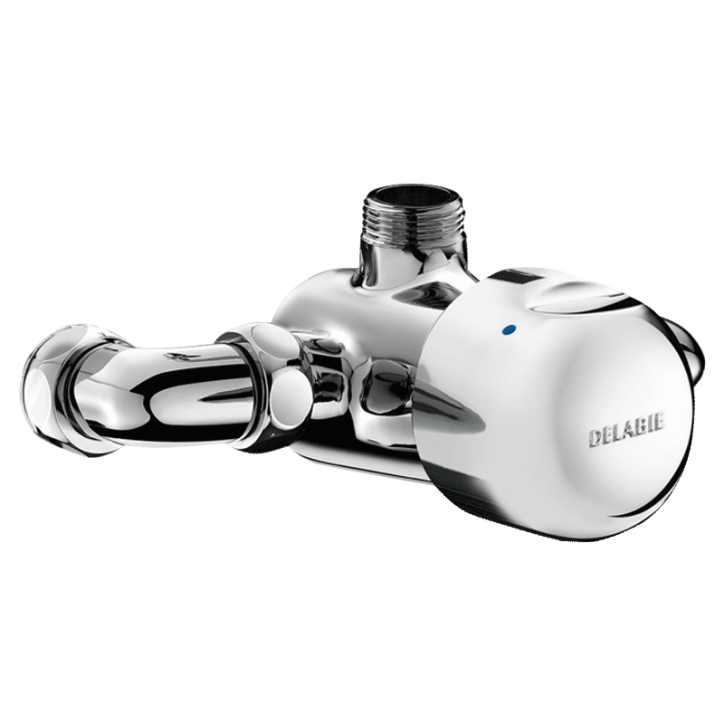

TEMPOMIX time flow shower mixer

Presentation

DESCRIPTION

TEMPOMIX time flow shower mixer

Ref. 790874
Time flow shower mixer for exposed installation:
TEMPOMIX ¾" single control mixer.
For wall-mounted installation.
Temperature control and operation via the push-button.
Maximum temperature limiter (adjustable by the installer).
Soft-touch operation.
Time flow ~30 seconds.
Flow rate 12 lpm at 3 bar, can be adjusted.
Chrome-plated solid brass body.
Integrated non-return valves and filters.
Chrome-plated metal push-button.
Elbow unions, 150mm centres.
30-year warranty.

ADVANTAGES

Endurance - Fiabilité

System tested to over 500,000 operations

Maintenance aisée - Installation aisée

Elbow union

Confort - Ergonomie - Déclenchement souple

Soft-touch operation

Characteristics

TECHNICAL CHARACTERISTICS

TEMPOMIX time flow shower mixer

Ref. 790874

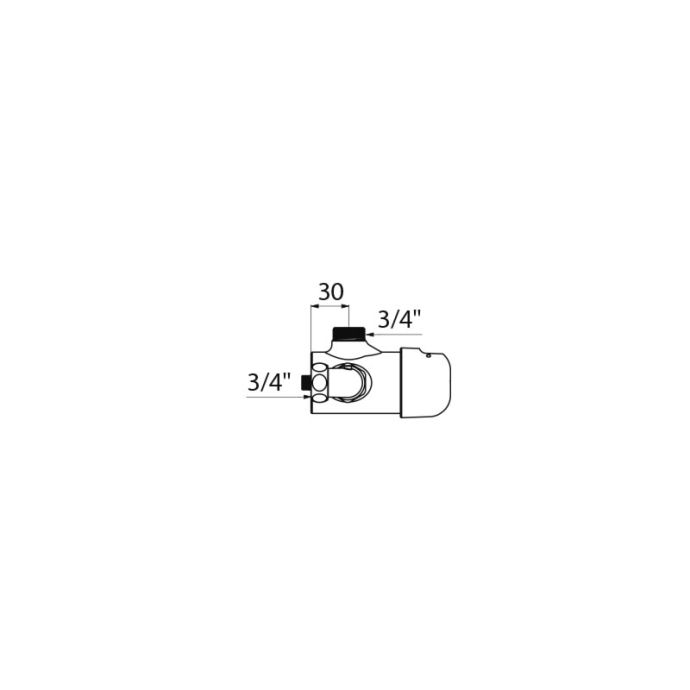

Connector ¾"
Technology Time flow
Flow rate 12 lpm
Certificates ACS Logo Belgaqua Logo PZH Logo DoP
Warranty 30-Year

Downloads

DOWNLOADS

Mitigeur de douche temporisé TEMPOMIX

Ref. 790874

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

790000 inline unions 90mm centres, M3/4"
790970 For panels from 1 to 10mm, M3/4"
790975 For panels from 8 to 16mm, M3/4"

VARIANTS

790000 inline unions 90mm centres, M3/4"
790970 For panels from 1 to 10mm, M3/4"
790975 For panels from 8 to 16mm, M3/4"
