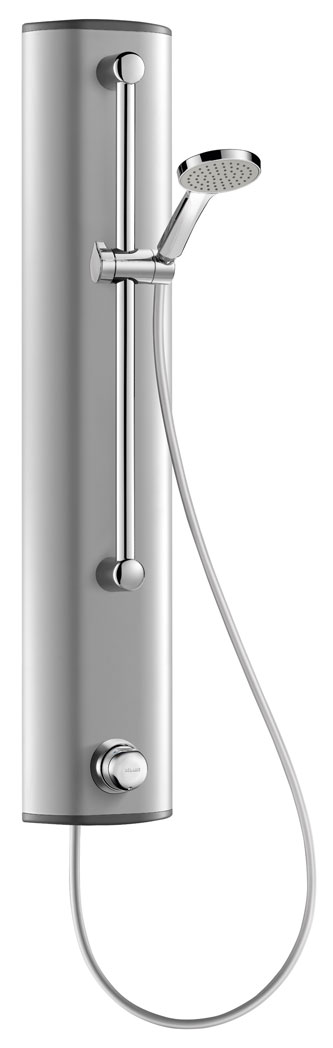

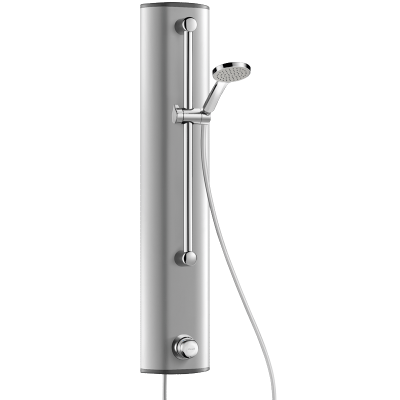

TEMPOMIX time flow shower panel

Ref. 79035015
Time flow single control
See variants See variants
TEMPOMIX time flow shower panel

Presentation

DESCRIPTION

TEMPOMIX time flow shower panel

Ref. 79035015
Time flow shower panel with handset:
Anodised aluminium shower panel for wall-mounted, exposed installation.
Top inlet via in-line stopcocks and conical Ø 15mm inlets.
TEMPOMIX mixer with adjustable maximum temperature limiter.
Soft-touch operation.
Time flow ~30 seconds.
Sliding handset on chrome-plated rail with flexible hose.
Concealed fixings.
Filters and non-return valves.
30-year warranty.

ADVANTAGES

Economie d'eau

80% water savings

Confort - Ergonomie - Déclenchement souple

Temperature selection on mixer

Confort - Ergonomie - Déclenchement souple

Handset is removable

Anti-vandalisme

Aluminium body, brass controls

Characteristics

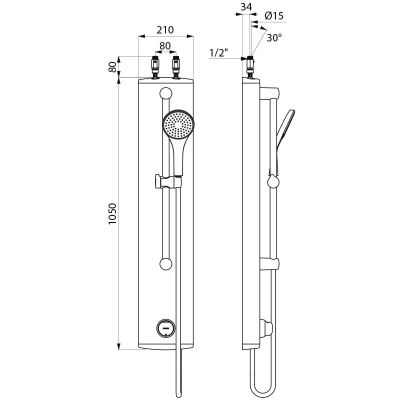

TECHNICAL CHARACTERISTICS

TEMPOMIX time flow shower panel

Ref. 79035015
Connector M½" Ø 15mm
Technology Time flow
Height 1,050mm
Depth 65mm
Width 210mm
Finish Aluminium
Warranty 30-Year
TEMPOMIX time flow shower panel
Ref. 79035015

Downloads

DOWNLOADS

TEMPOMIX time flow shower panel

Ref. 79035015

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

790350 M1/2" top inlet + inline stopcocks, without soap dish

Associated products

VARIANTS

790350 M1/2" top inlet + inline stopcocks, without soap dish
