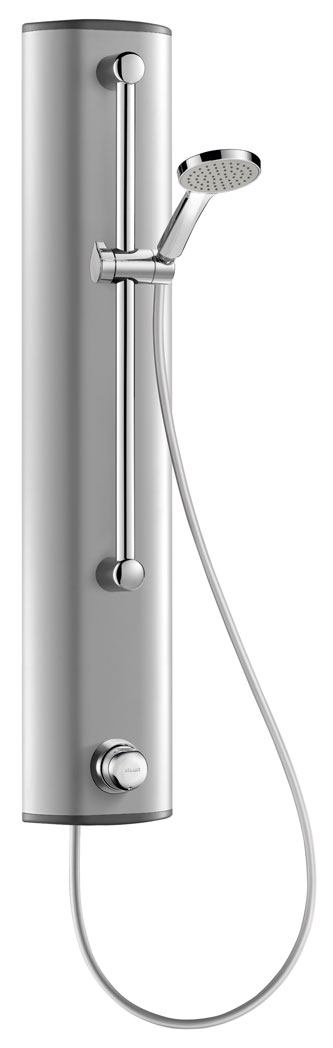

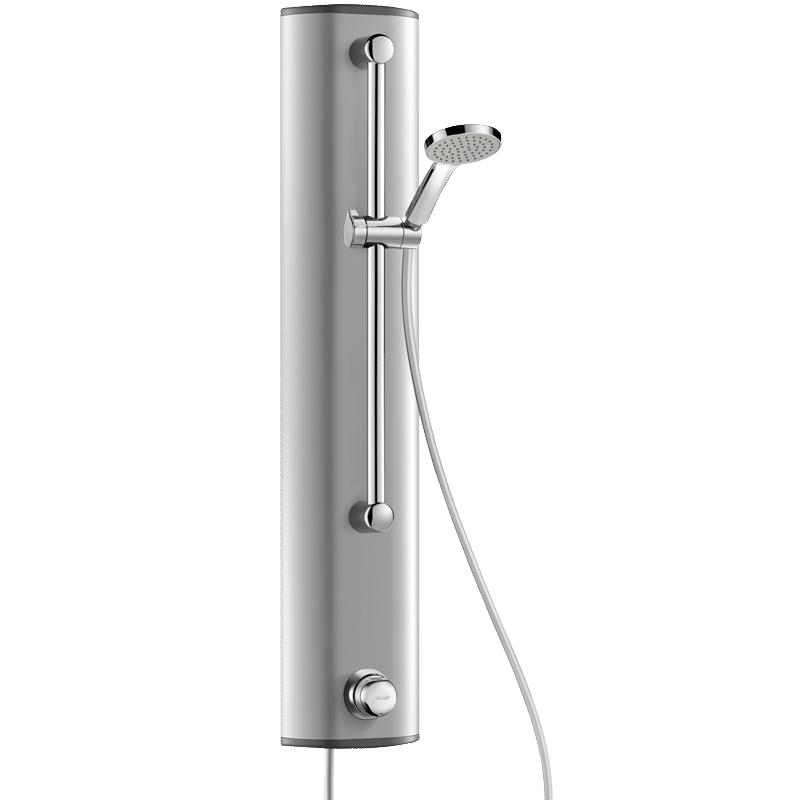

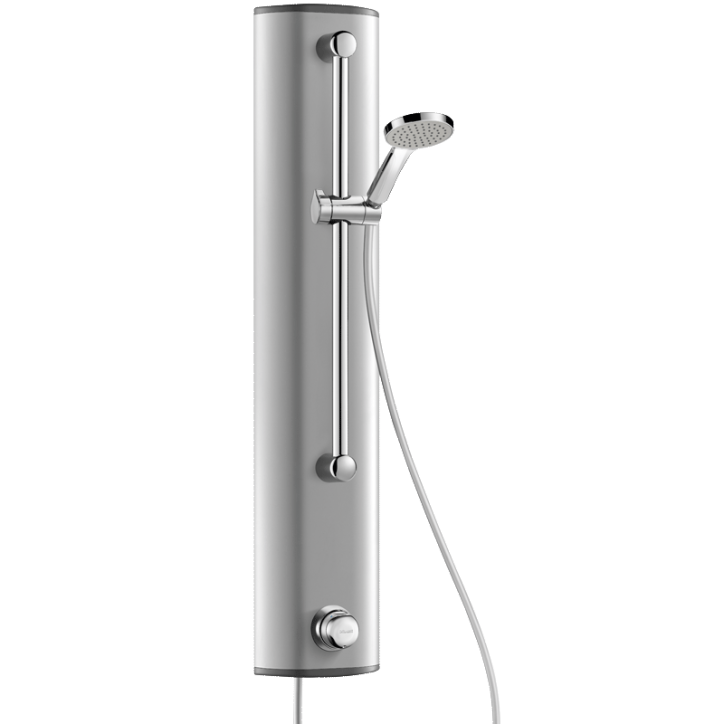

TEMPOMIX time flow shower panel

Ref. 790350
Time flow single control
See variants See variants
TEMPOMIX time flow shower panel

Presentation

DESCRIPTION

TEMPOMIX time flow shower panel

Ref. 790350
Time flow aluminium shower panel with handset:
Anodised aluminium shower panel for wall-mounted, exposed installation.
Top inlet supply with in-line stopcocks M½".
TEMPOMIX mixer with adjustable maximum temperature limiter.
Soft-touch operation.
Time flow ~30 seconds.
Flow rate 11 lpm at 3 bar dynamic pressure.
Sliding handset on chrome-plated rail with flexible hose.
Concealed fixings.
Filters and non-return valves.
This product is compatible with thermal and chemical shocks in accordance with current guidelines.
30-year warranty.

ADVANTAGES

Economie d'eau

80% water savings

Confort - Ergonomie - Déclenchement souple

Temperature control on the mixer

Confort - Ergonomie - Déclenchement souple

Handset is removable

Anti-vandalisme

Aluminium panel, brass controls

Characteristics

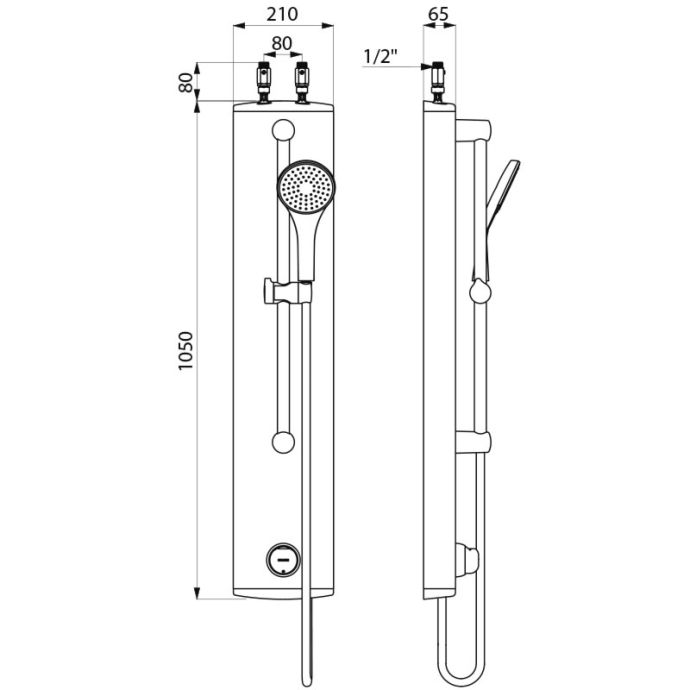

TECHNICAL CHARACTERISTICS

TEMPOMIX time flow shower panel

Ref. 790350
Connector M½"
Technology Time flow
Height 1.05mm
Depth 65mm
Width 210mm
Flow rate 11 lpm
Finish Aluminium
Certificates ACS Logo Belgaqua Logo PZH Logo DoP
Warranty 30-Year
TEMPOMIX time flow shower panel
Ref. 790350

Downloads

DOWNLOADS

TEMPOMIX time flow shower panel

Ref. 790350

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

79035015 Top Ø 15mm compression fittings with inline stopcocks, without soap dish
