TEMPOMIX time flow shower panel

Ref. 79030015
Time flow single control
TEMPOMIX time flow shower panel

Presentation

DESCRIPTION

TEMPOMIX time flow shower panel

Ref. 79030015
Time flow shower panel with fixed shower head:
Anodised aluminium shower panel for wall-mounted, exposed installation.
Top inlet via in-line stopcocks and conical Ø 15mm inlets.
TEMPOMIX shower mixer with adjustable maximum temperature limiter.
Time flow ~30 seconds, soft-touch operation.
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant, fixed, ROUND shower head with automatic flow rate regulation.
Concealed fixings.
Filters and non-return valves.
Shower panel suitable for people with reduced mobility.
30-year warranty.

ADVANTAGES

Economie d'eau

80% water savings

Confort - Ergonomie - Déclenchement souple

Temperature selection on mixer

Anti-vandalisme

Aluminium body, brass controls

Characteristics

TECHNICAL CHARACTERISTICS

TEMPOMIX time flow shower panel

Ref. 79030015

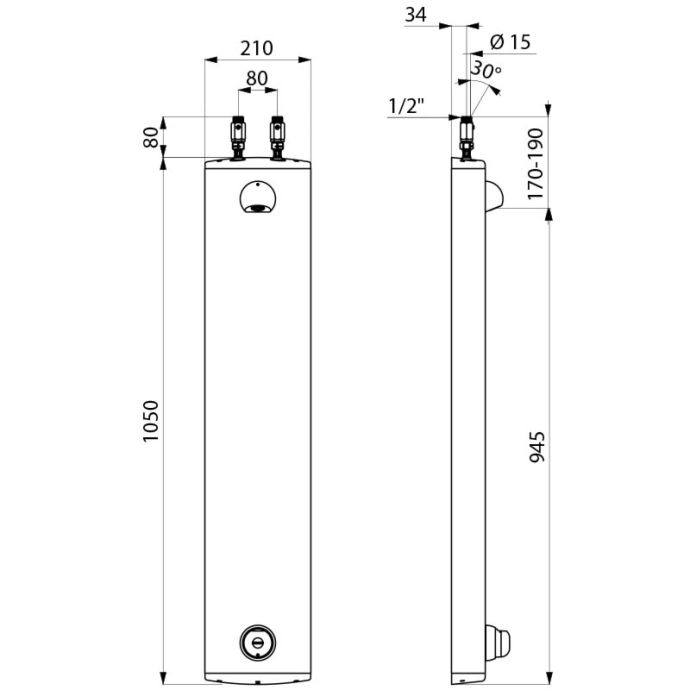

Connector M1/2'' Ø 15mm
Technology Time flow
Height 1050mm
Depth 65mm
Width 210mm
Flow rate 6 lpm
Finish Aluminium
Warranty 30-Year
TEMPOMIX time flow shower panel
Ref. 79030015

Downloads

DOWNLOADS

Colonne de douche temporisée TEMPOMIX

Ref. 79030015

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

790305 M1/2" top inlet + inline stopcocks, with soap dish
790300 M1/2" top inlet + inline stopcocks, without soap dish
79030515 Top Ø 15mm compression fittings with inline stopcocks, with soap dish
790310 Concealed inlet via M½" flexibles, without soap dish
