DESCRIPTION

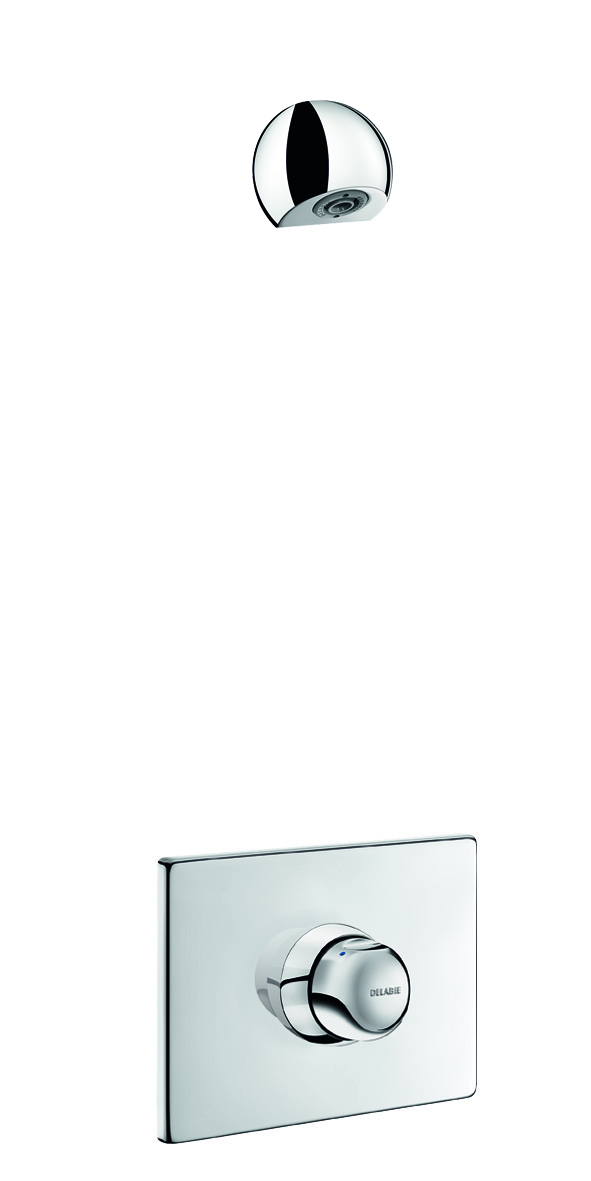

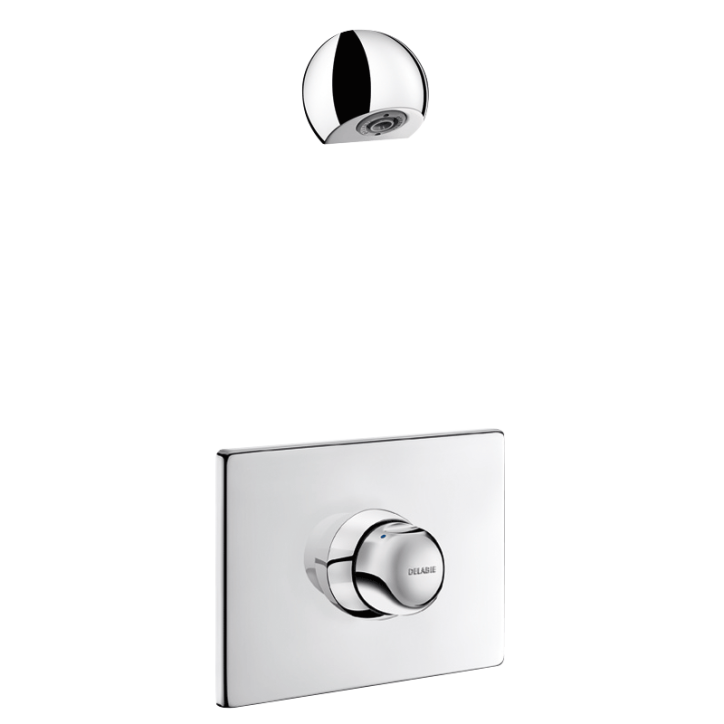

TEMPOMIX time flow shower mixer
Ref. 790219Recessed time flow shower mixer kit, kit 2/2 :
Tamperproof bright polished stainless steel wall plate 160 x 220mm.
TEMPOMIX ¾" single control mixer.
Ligature-resistant collar.
Temperature control and operation on the push-button.
Maximum temperature limiter (can be adjusted by the installer).
Time flow ~30 seconds, soft-touch operation.
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof ROUND shower head with scale-resistant nozzle and automatic flow rate regulation.
Concealed fixings, stopcocks M½".
Chrome-plated metal control.
Integrated non-return valves and filters.
30-year warranty.

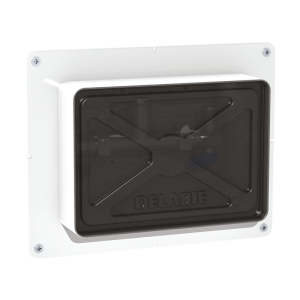

Order with waterproof housing ref. 790BOX
Tamperproof bright polished stainless steel wall plate 160 x 220mm.
TEMPOMIX ¾" single control mixer.
Ligature-resistant collar.
Temperature control and operation on the push-button.
Maximum temperature limiter (can be adjusted by the installer).
Time flow ~30 seconds, soft-touch operation.
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof ROUND shower head with scale-resistant nozzle and automatic flow rate regulation.
Concealed fixings, stopcocks M½".
Chrome-plated metal control.
Integrated non-return valves and filters.
30-year warranty.
Order with waterproof housing ref. 790BOX
ADVANTAGES

Flow rate 6 lpm

Installation recessed in wall

System tested to over 500,000 operations

Soft-touch operation

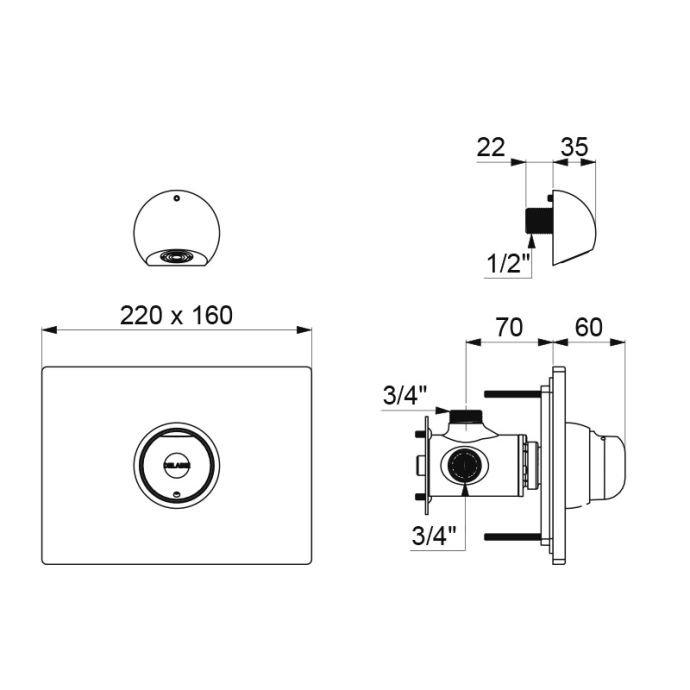

TECHNICAL CHARACTERISTICS
TEMPOMIX time flow shower mixer
Ref. 790219Connector | ½" |
Technology | Time flow |
Height | 160mm |
Depth | 130mm |
Width | 220mm |
Flow rate | 6 lpm |
Finish | Bright polished stainless steel |
Certificates |
![]() ![]() ![]() ![]() |
Warranty | ![]() |
