TEMPOMIX time flow shower panel

Ref. 790214
Time flow single control
TEMPOMIX time flow shower panel

Presentation

DESCRIPTION

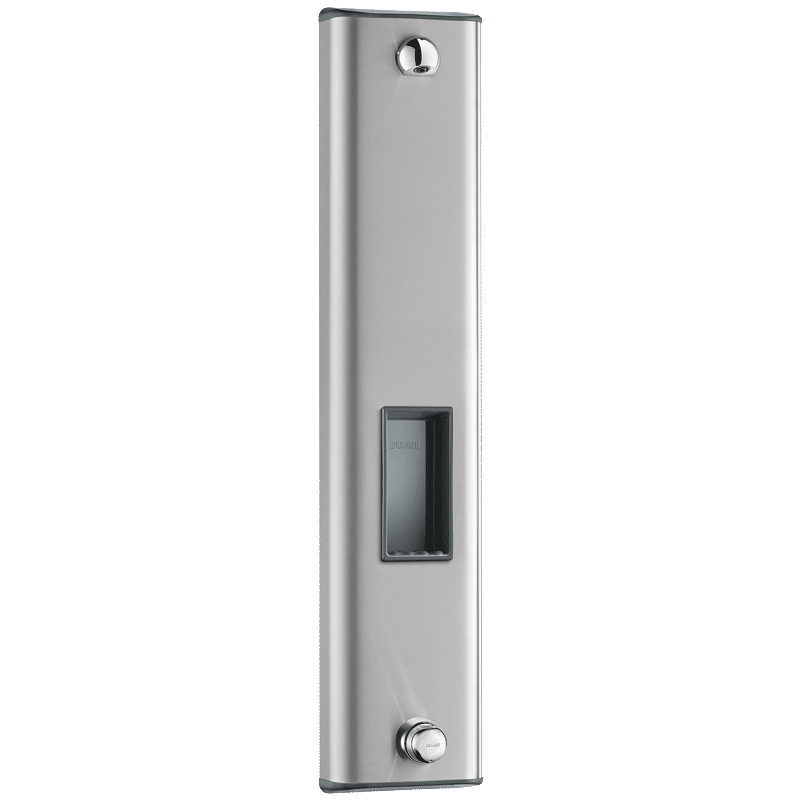

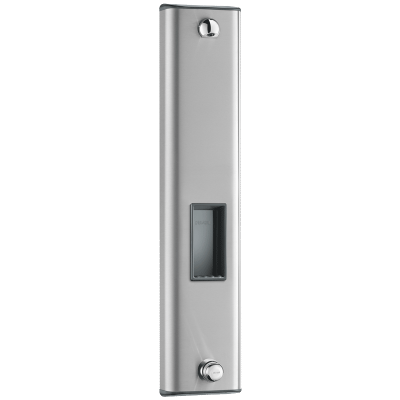

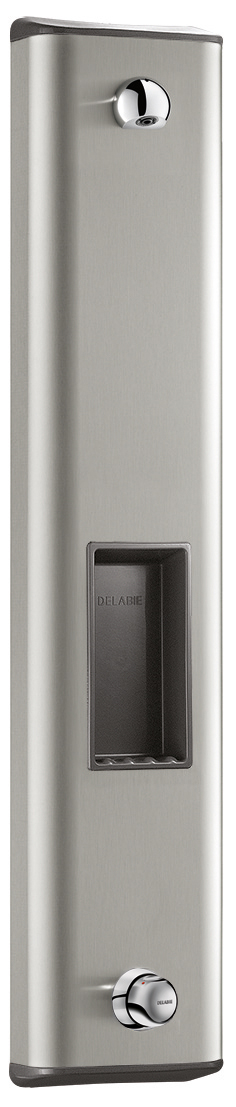

TEMPOMIX time flow shower panel

Ref. 790214
Time flow shower panel with fixed shower head:
Large model satin stainless steel panel for wall-mounted, exposed installation.
Concealed inlet via flexibles M½".
TEMPOMIX shower mixer with adjustable maximum temperature limiter.
Soft-touch operation.
Time flow ~30 seconds.
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant, fixed, ROUND shower head with automatic flow rate regulation.
Integrated soap dish.
Concealed fixings.
Filters and non-return valves.
Stopcocks.
Shower panel suitable for people with reduced mobility.
30-year warranty.

ADVANTAGES

Economie d'eau

80% water savings

Confort - Ergonomie - Déclenchement souple

Temperature control on the mixer

Anti-vandalisme

Aluminium panel, brass controls

Characteristics

TECHNICAL CHARACTERISTICS

TEMPOMIX time flow shower panel

Ref. 790214

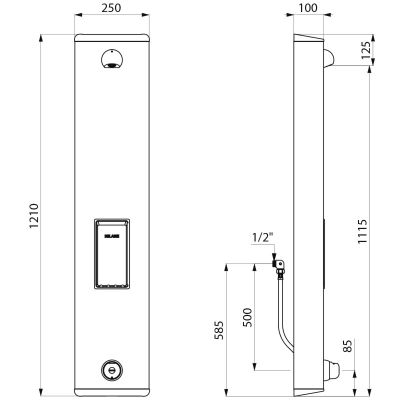

Connector M½"
Technology Time flow
Height 1,220mm
Depth 100mm
Width 250mm
Flow rate 6 lpm
Finish Stainless steel
Certificates ACS Logo DoP Logo PZH
Warranty 30-Year

Downloads

DOWNLOADS

TEMPOMIX time flow shower panel

Ref. 790214

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

790204 M1/2" top inlet with inline stopcocks

VARIANTS

790204 M1/2" top inlet with inline stopcocks
