DESCRIPTION

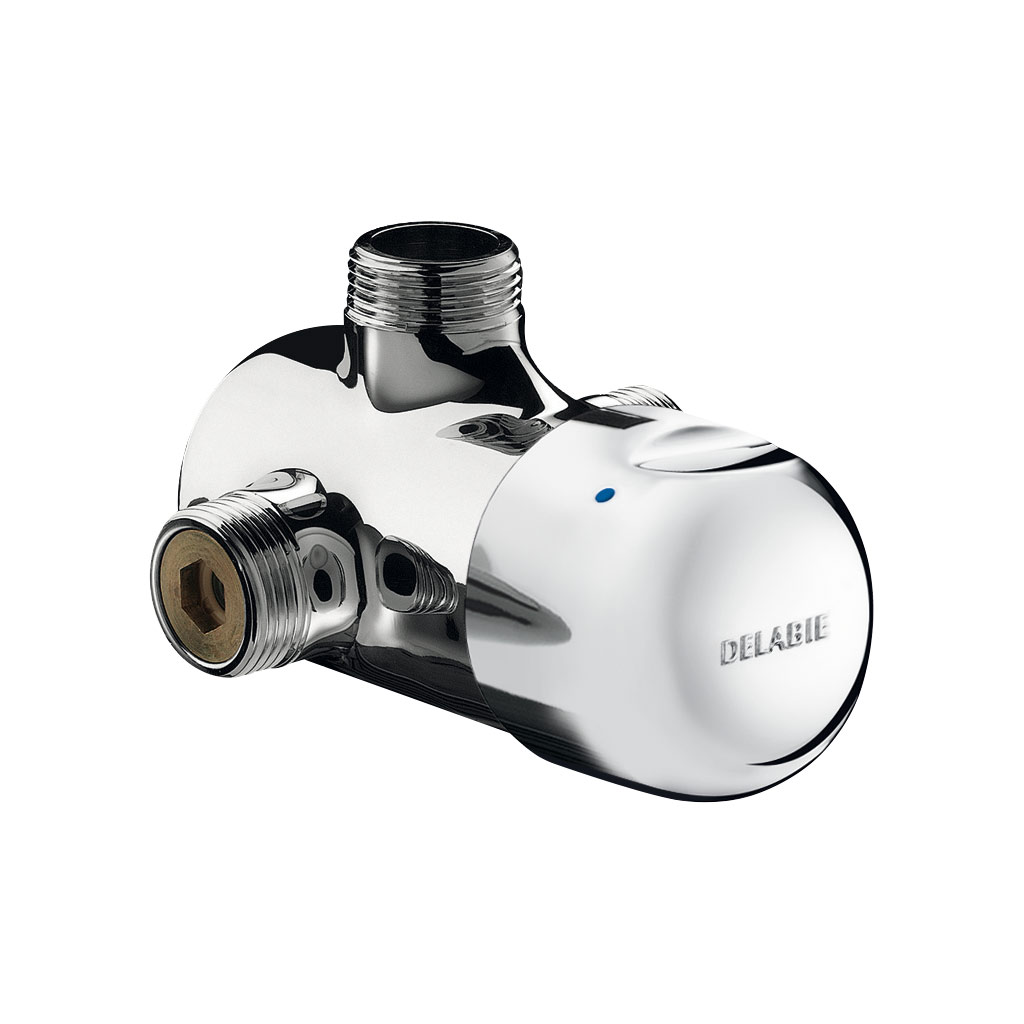

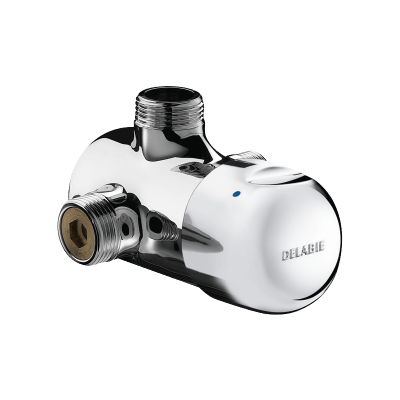

TEMPOMIX time flow shower mixer
Ref. 790000Time flow shower mixer for exposed installation:
TEMPOMIX ¾" single control mixer.
For wall-mounted installation.
Temperature control and operation via the push-button.
Maximum temperature limiter (can be adjusted by the installer).
Soft-touch operation.
Time flow ~30 seconds.
Flow rate 12 lpm at 3 bar, can be adjusted.
Chrome-plated solid brass body.
Integrated non-return valves and filters.
Chrome-plated metal push-button.
In-line unions, 90mm centres.
30-year warranty.
TEMPOMIX ¾" single control mixer.
For wall-mounted installation.
Temperature control and operation via the push-button.
Maximum temperature limiter (can be adjusted by the installer).
Soft-touch operation.
Time flow ~30 seconds.
Flow rate 12 lpm at 3 bar, can be adjusted.
Chrome-plated solid brass body.
Integrated non-return valves and filters.
Chrome-plated metal push-button.
In-line unions, 90mm centres.
30-year warranty.
ADVANTAGES
System tested to over 500,000 operations
Soft-touch operation
TECHNICAL CHARACTERISTICS
TEMPOMIX time flow shower mixer

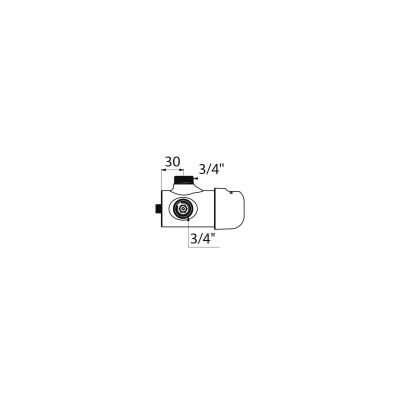

Ref. 790000| Connector | ¾" |
| Technology | Time flow |
| Flow rate | 12 lpm |
| Certificates |
|
| Warranty |
|
VARIANTS
| 790874 | Elbow unions 150mm centres, M3/4" | ||
|---|---|---|---|
| 790970 | For panels from 1 to 10mm, M3/4" | ||
| 790975 | For panels from 8 to 16mm, M3/4" |
Associated products
Adjustable height floor trap
For tiles or concrete floors
Ref. 682001UK
PREMIX COMPACT Thermostatic mixing valve
For mixed water 30 - 60°C
Ref. 733015
Wall-mounted soap dish
Chrome-plated bright finish
Ref. 710501
VARIANTS
| 790874 | Elbow unions 150mm centres, M3/4" | ||
|---|---|---|---|
| 790970 | For panels from 1 to 10mm, M3/4" | ||
| 790975 | For panels from 8 to 16mm, M3/4" |
