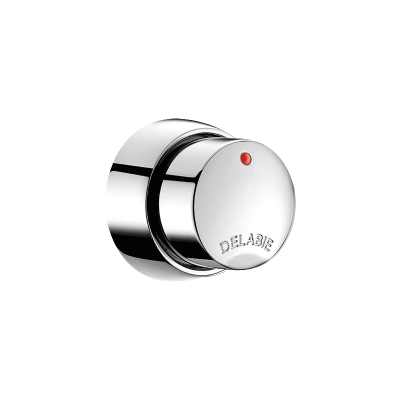

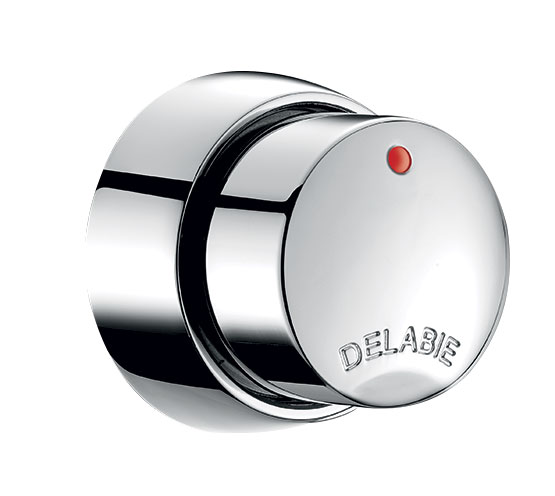

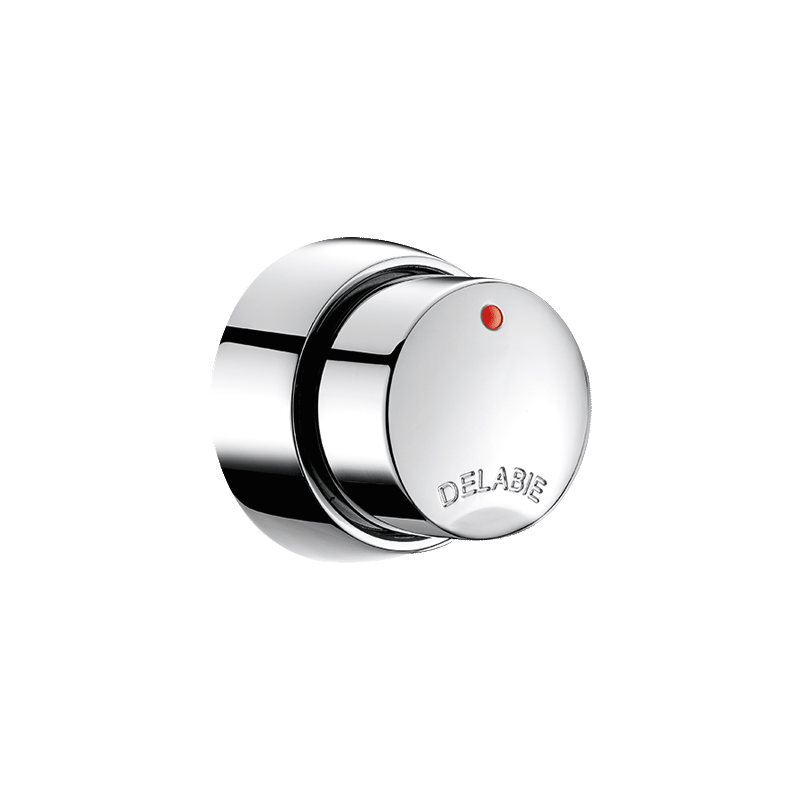

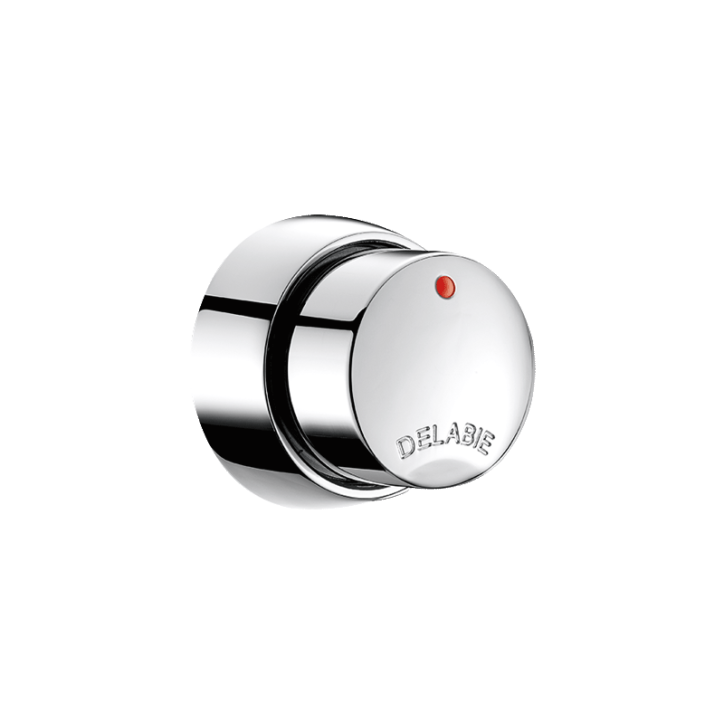

TEMPOSOFT 2 time flow shower valve

Ref. 749870
Time flow
TEMPOSOFT 2 time flow shower valve

Presentation

DESCRIPTION

TEMPOSOFT 2 time flow shower valve

Ref. 749870
Time flow shower valve for panels:
TEMPOSOFT 2 M½" time flow valve for mixed water supply.
For panels or dry walls 7mm max.
Soft-touch operation.
Time flow ~30 seconds.
Flow rate pre-set at 6 lpm at 3 bar, can be adjusted.
Solid brass body.
Suitable for people with reduced mobility.
30-year warranty.

This model does not have a waterproof recessing box. The installer must ensure that the recessing area is waterproof and any leaks or condensates can drain away (see installation guide).

ADVANTAGES

Confort - Ergonomie - Déclenchement souple

Soft-touch operation

Endurance - Fiabilité

System tested to over 500,000 operations

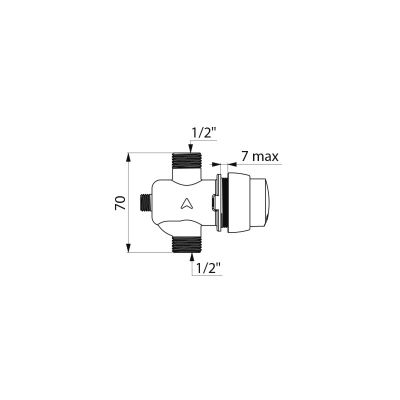

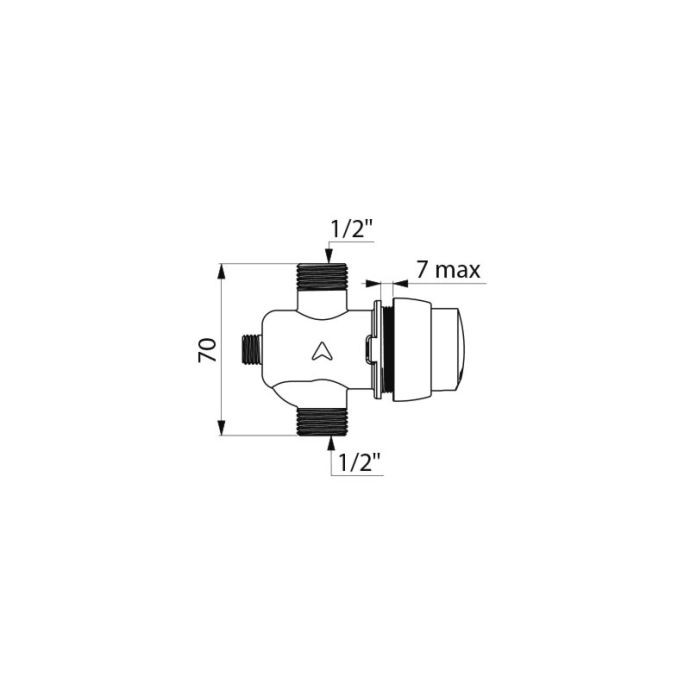

Characteristics

TECHNICAL CHARACTERISTICS

TEMPOSOFT 2 time flow shower valve

Ref. 749870
Connector ½"
Technology Time flow
Height 70mm
Flow rate 9 lpm
Certificates ACS Logo PZH Logo WRAS Logo DoP
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

TEMPOSOFT 2 time flow shower valve

Ref. 749870

To download one or several documents linked to this product, please select the type of file you require :

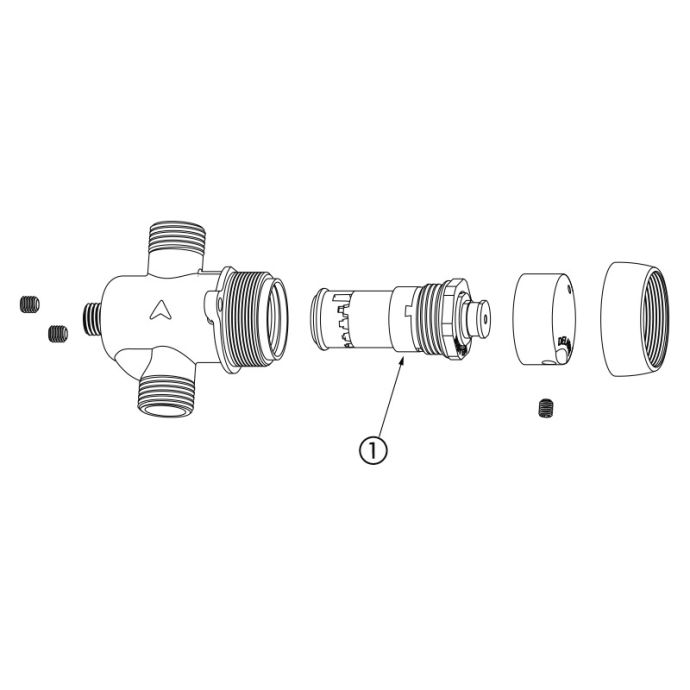

Spare parts

SPARE PARTS

TEMPOSOFT 2 time flow shower valve

Ref. 749870
1. 743743
Shower cartridge
