TEMPOSTOP time flow shower valve

Ref. 749770
Time flow
TEMPOSTOP time flow shower valve

Presentation

DESCRIPTION

TEMPOSTOP time flow shower valve

Ref. 749770
Time flow shower valve for panels:
TEMPOSTOP M3/4" time flow valve for mixed water supply.
For panel mounting, 2mm max.
Chrome-plated metal wall plate Ø 70mm.
Time flow ~30 seconds.
Flow rate 12 lpm at 3 bar, can be adjusted.
Solid brass body and push-button.
Rear locking ring.
30-year warranty.

ADVANTAGES

Endurance - Fiabilité

System tested to over 500,000 operations

Anti-vandalisme

Recessed, solid brass

Characteristics

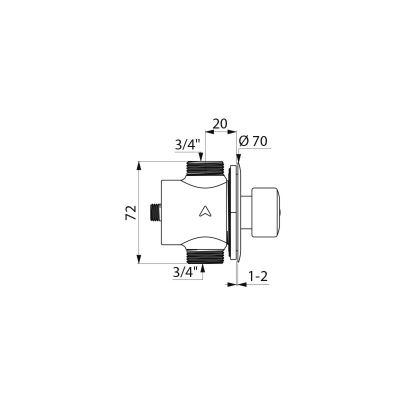

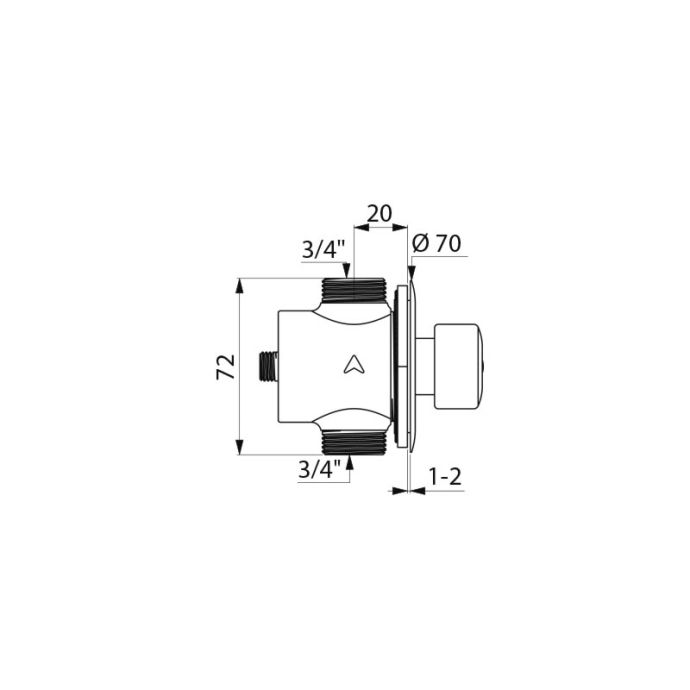

TECHNICAL CHARACTERISTICS

TEMPOSTOP time flow shower valve

Ref. 749770
Connector M3/4"
Technology Time flow
Height 72mm
Flow rate 12 lpm
Certificates ACS Logo PZH Logo DoP
Warranty 30-Year
TEMPOSTOP time flow shower valve
Ref. 749770

Downloads

DOWNLOADS

TEMPOSTOP time flow shower valve

Ref. 749770

To download one or several documents linked to this product, please select the type of file you require :

Associated products
