DESCRIPTION

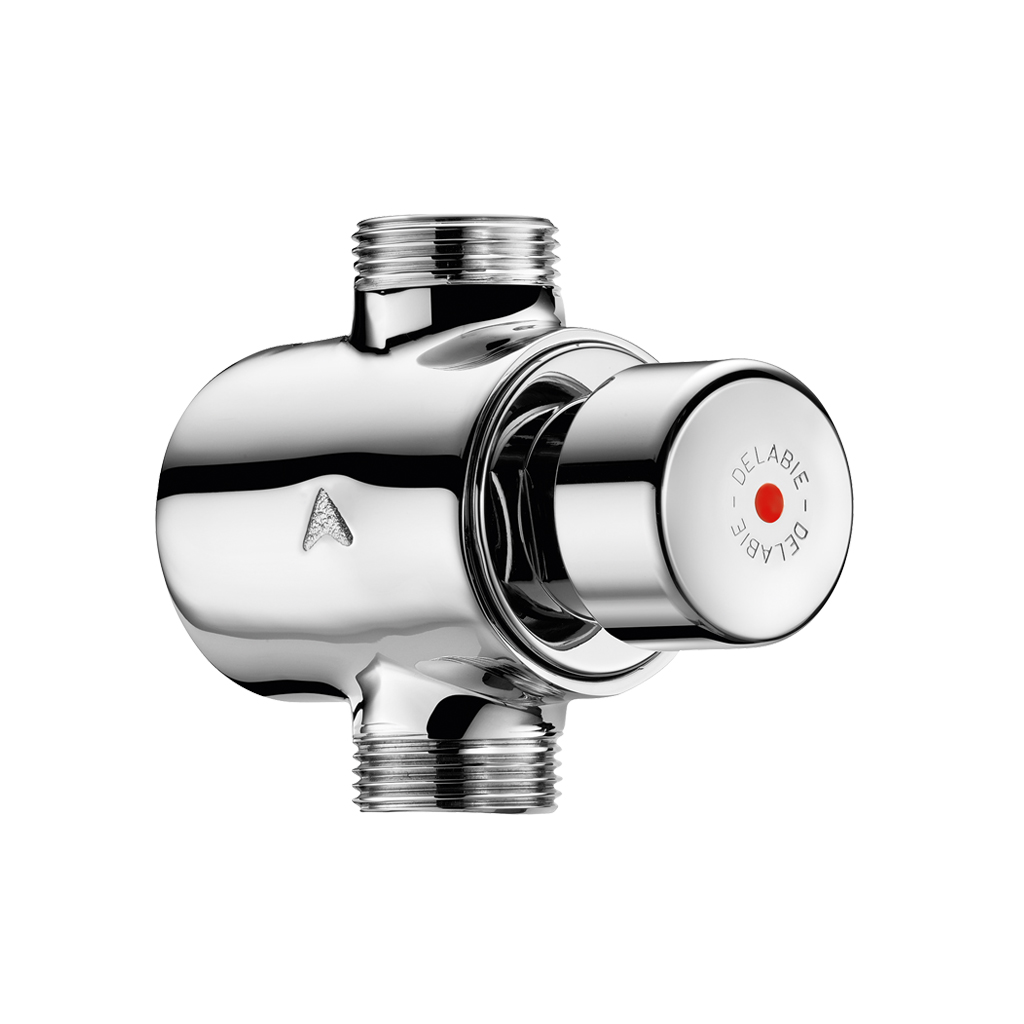

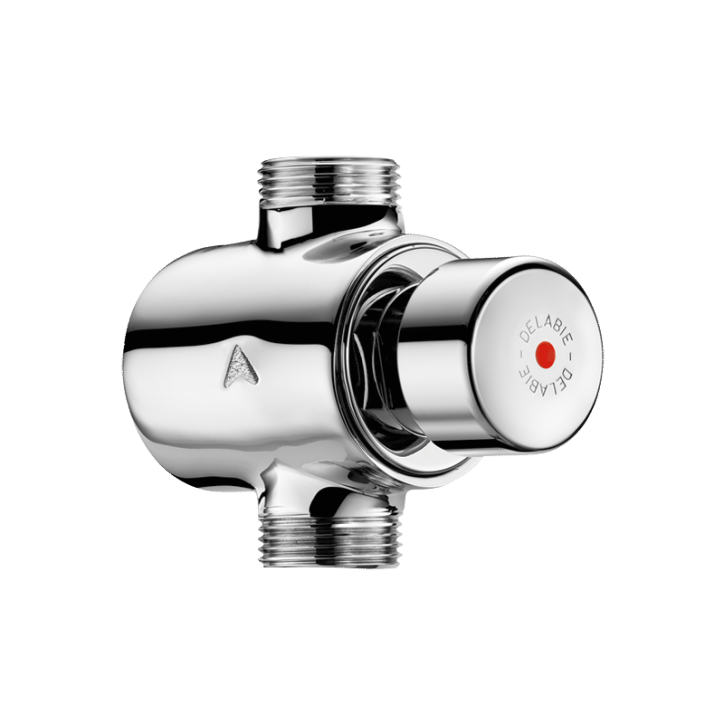

TEMPOSTOP time flow shower valve
Ref. 749700Time flow shower valve for exposed installation:
TEMPOSTOP M¾" time flow valve for in-line mixed water supply.
For wall-mounted exposed installation.
Time flow ~30 seconds.
Flow rate 12 lpm at 3 bar, with flow rate regulator.
Chrome-plated solid brass body and push-button.
30-year warranty.
TEMPOSTOP M¾" time flow valve for in-line mixed water supply.
For wall-mounted exposed installation.
Time flow ~30 seconds.
Flow rate 12 lpm at 3 bar, with flow rate regulator.
Chrome-plated solid brass body and push-button.
30-year warranty.
ADVANTAGES
System tested to over 500,000 operations
Chrome-plated solid brass
TECHNICAL CHARACTERISTICS
TEMPOSTOP time flow shower valve
Ref. 749700| Connector | ¾" |
| Technology | Time flow |

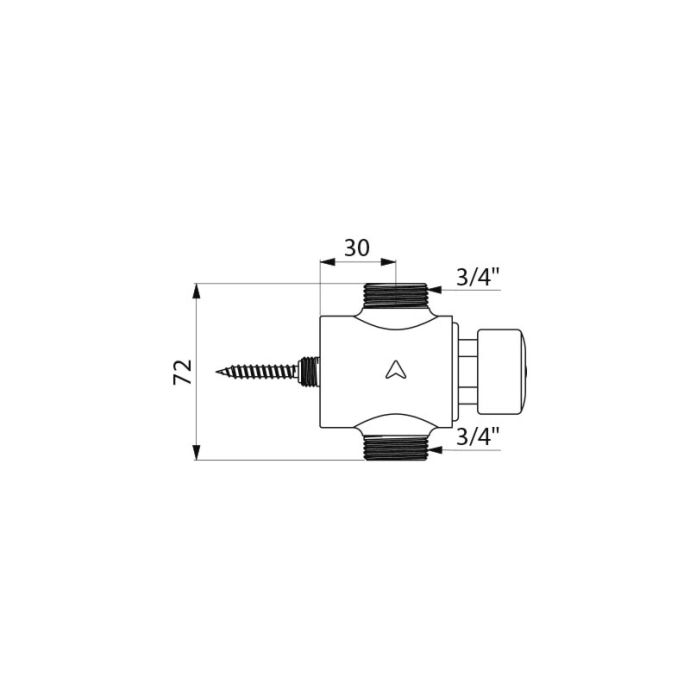

| Height | 72mm |
| Flow rate | 12 lpm |
| Certificates |
|
| Warranty |
|
VARIANTS
| 749000 | M3/4", inline inlet, 75 lpm | ||
|---|---|---|---|
| 749721 | Ø 15mm compression fittings, M3/4" outlet, inline inlet, 12 lpm |
Associated products
Adjustable height floor trap
For tiles or concrete floors
Ref. 682001UK
PREMIX COMPACT Thermostatic mixing valve
For mixed water 30 - 60°C
Ref. 733015

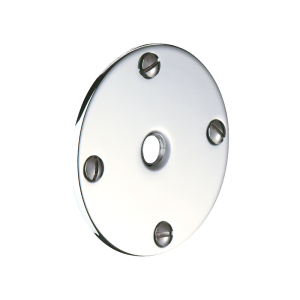

Reinforced wall plate
