TEMPOSOFT 2 time flow shower valve

Ref. 749428
Time flow

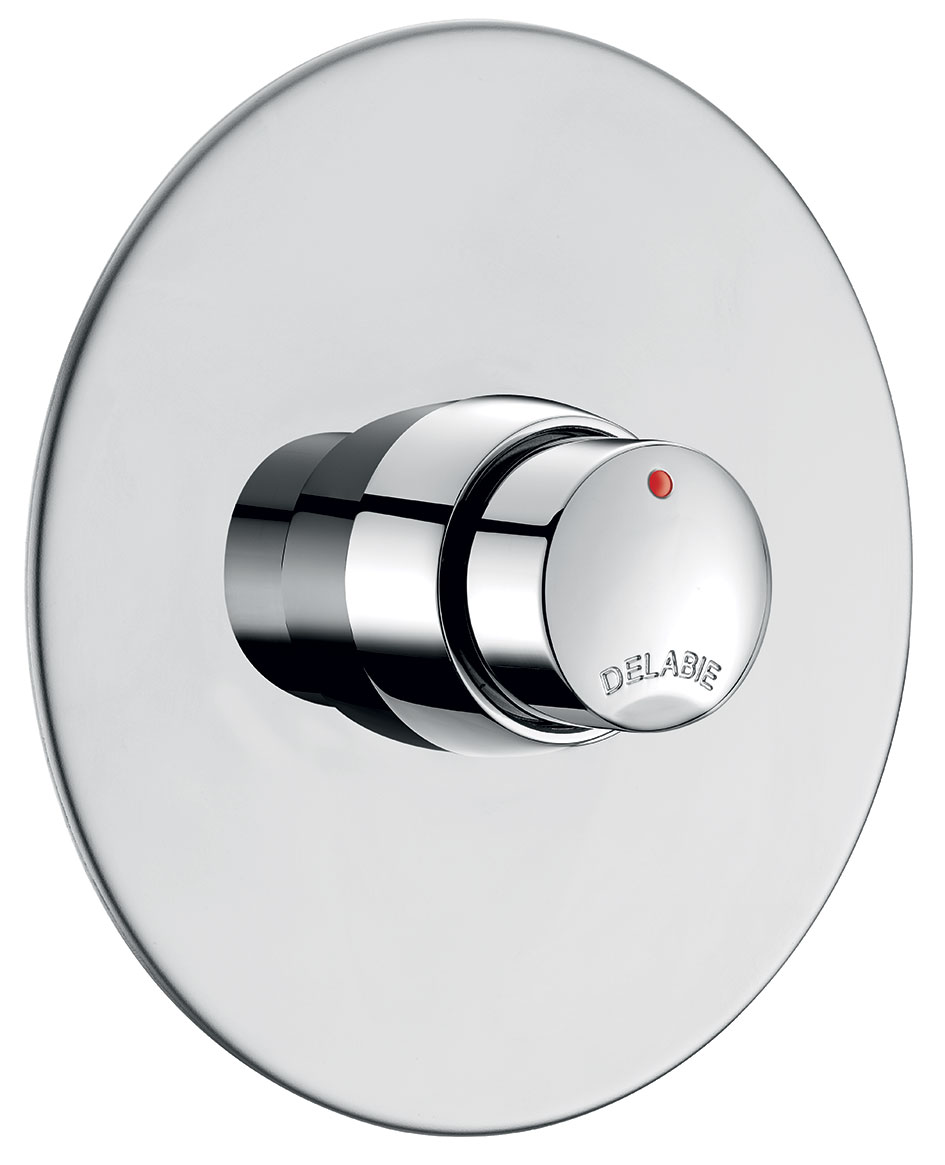

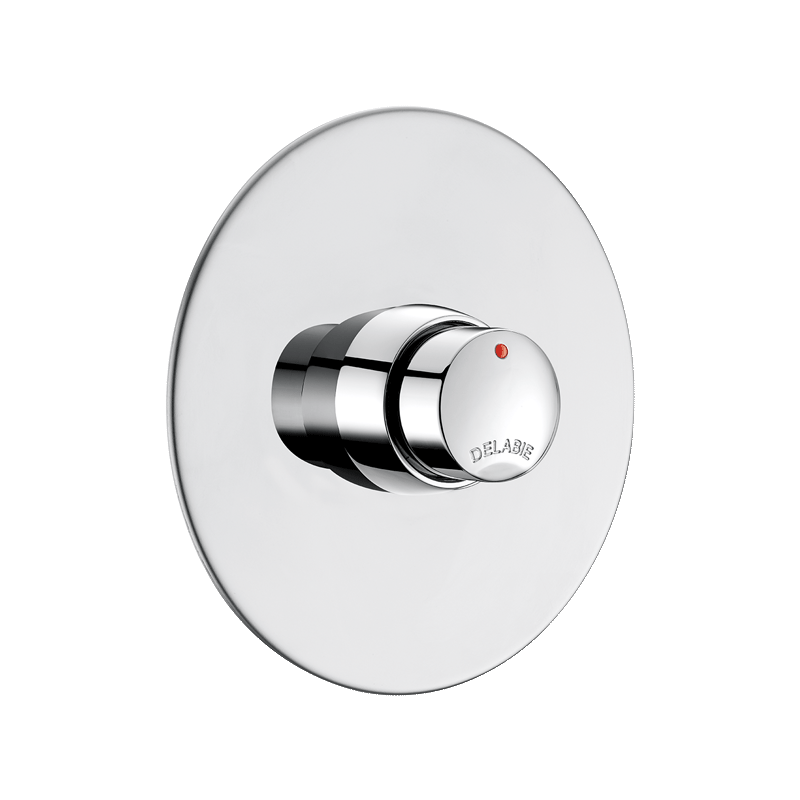

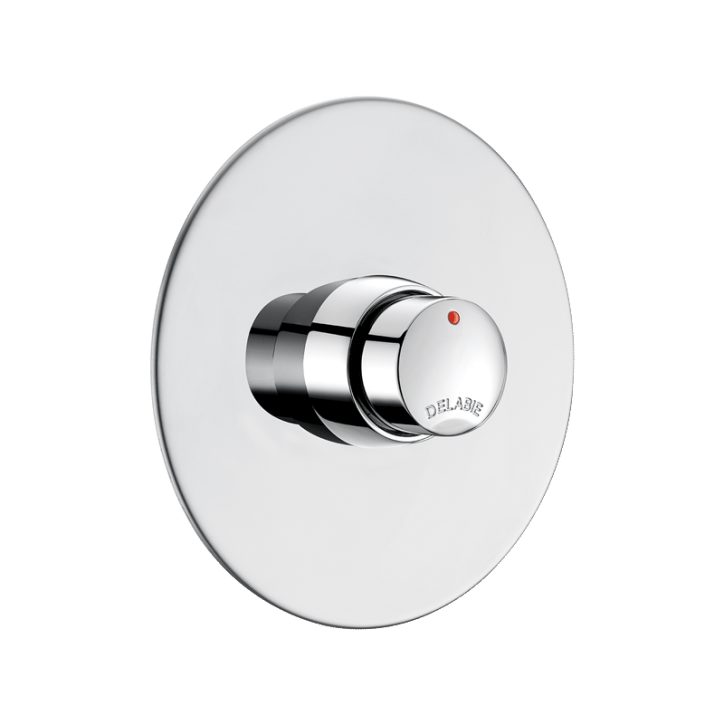

TEMPOSOFT 2 time flow shower valve

Presentation

DESCRIPTION

TEMPOSOFT 2 time flow shower valve

Ref. 749428
Time flow recessed shower valve:
TEMPOSOFT 2 M½" time flow valve for mixed water supply.
For recessed installation.
Bright polished 304 stainless steel wall plate Ø 130mm.
Recessing depth can be adjusted from 1 to 5mm
Soft-touch operation.
Time flow ~30 seconds.
Flow rate pre-set at 6 lpm at 3 bar can be adjusted.
Solid brass body.
Suitable for people with reduced mobility.
30-year warranty.

This model does not have a waterproof recessing box. The installer must ensure that the recessing area is waterproof and any leaks or condensates can drain away (see installation guide).

ADVANTAGES

Confort - Ergonomie - Déclenchement souple

Soft-touch operation

Endurance - Fiabilité

System tested to over 500,000 operations

Characteristics

TECHNICAL CHARACTERISTICS

TEMPOSOFT 2 time flow shower valve

Ref. 749428

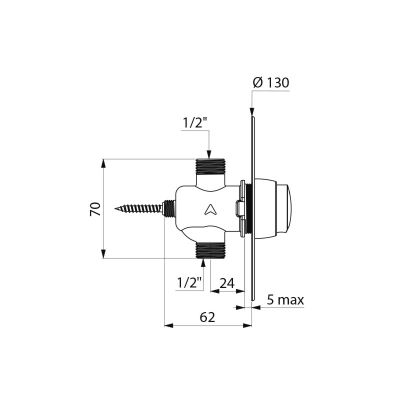

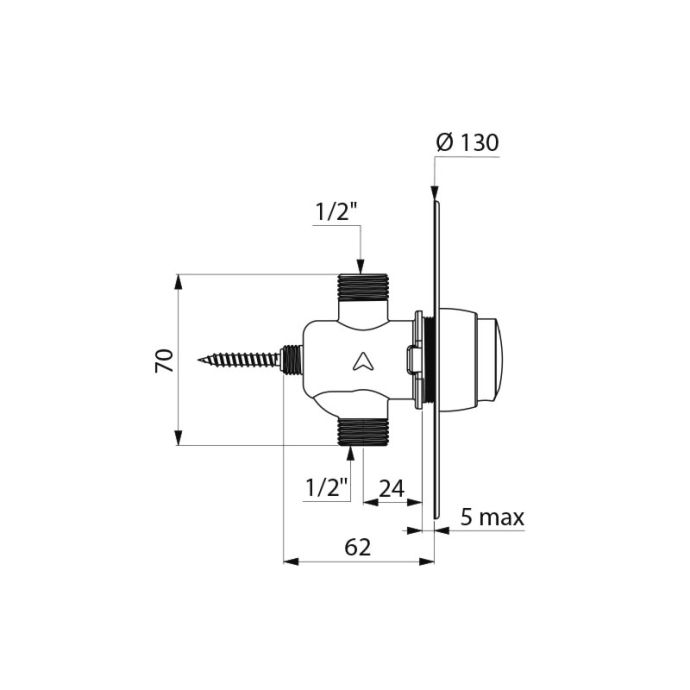

Connector ½"
Technology Time flow
Height 70mm
Flow rate 9 lpm
Certificates ACS Logo PZH Logo WRAS Logo DoP
Warranty 30-Year

Downloads

DOWNLOADS

Robinet de douche temporisé TEMPOSOFT 2

Ref. 749428

To download one or several documents linked to this product, please select the type of file you require :
