TEMPOSTOP time flow shower valve

Ref. 749128
Time flow
TEMPOSTOP time flow shower valve

Presentation

DESCRIPTION

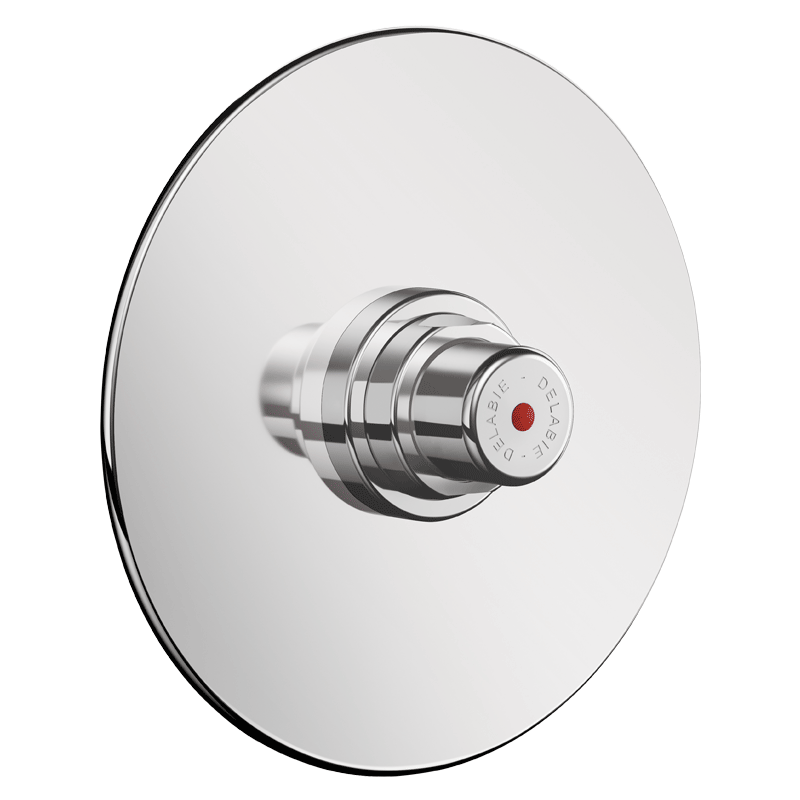

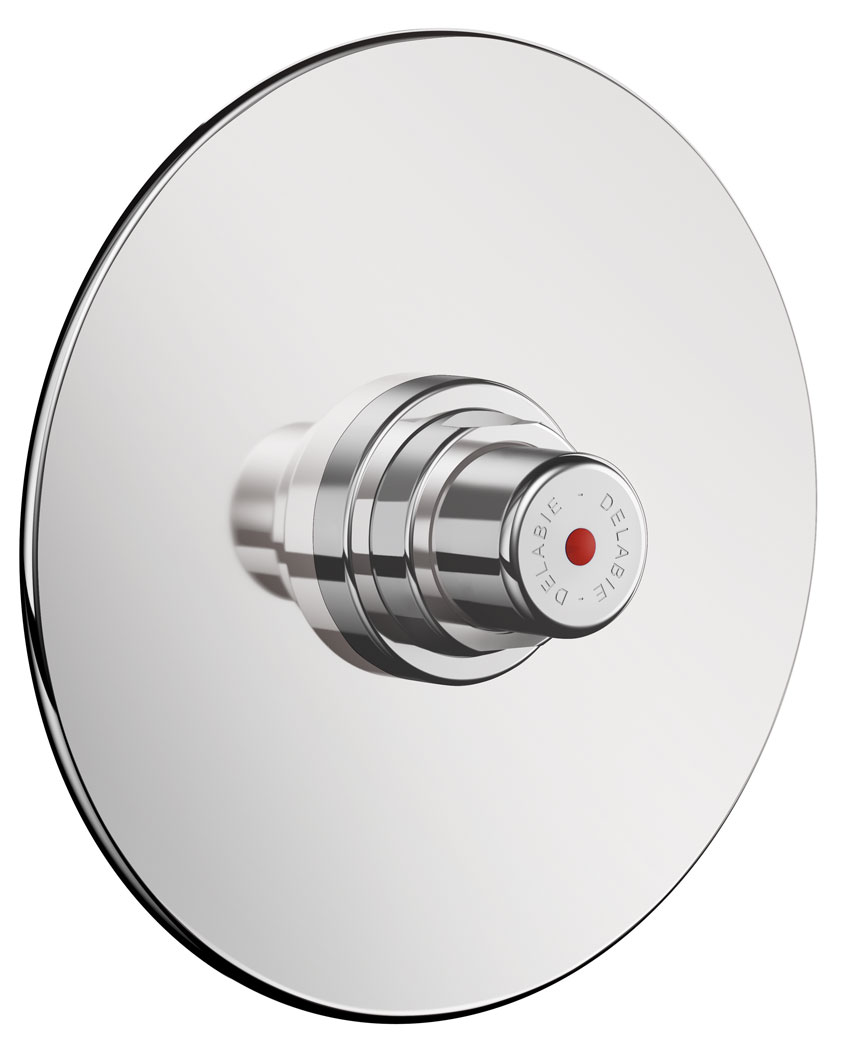

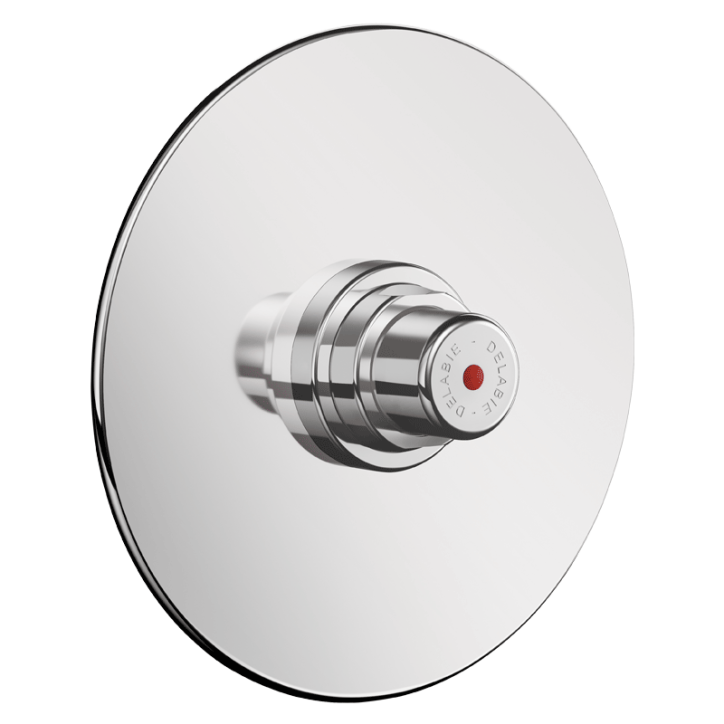

TEMPOSTOP time flow shower valve

Ref. 749128
Recessed time flow shower valve:
TEMPOSTOP F1/2" time flow valve for mixed water supply.
For recessed installation.

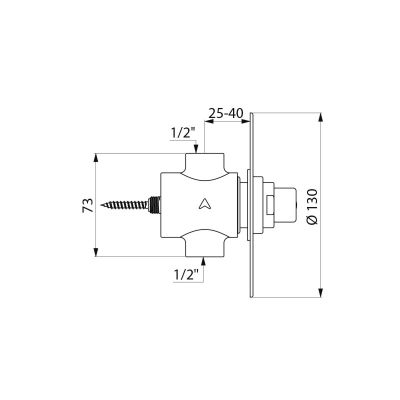

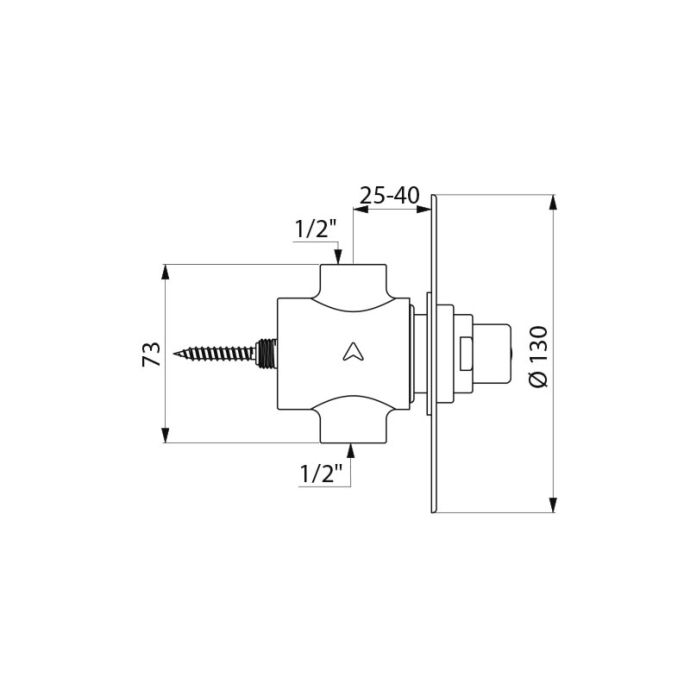

Stainless steel wall plate Ø 130mm.
Recessing depth between 25 to 40mm .
Time flow ~30 seconds.
Flow rate 12 lpm at 3 bar, can be adjusted.
Solid brass body and button.
30-year warranty.

This model does not have a waterproof recessing box. The installer must ensure that the recessing area is waterproof and any leaks or condensates can drain away (see installation guide).

ADVANTAGES

Endurance - Fiabilité

System tested to over 500,000 operations

Anti-vandalisme

Recessed, solid brass

Characteristics

TECHNICAL CHARACTERISTICS

TEMPOSTOP time flow shower valve

Ref. 749128
Connector ½"
Technology Time flow
Flow rate 12 lpm
Certificates ACS Logo PZH Logo DoP
Warranty 30-Year

Downloads

DOWNLOADS

TEMPOSTOP time flow shower valve

Ref. 749128

To download one or several documents linked to this product, please select the type of file you require :
