TEMPOSTOP time flow shower valve

Ref. 749000
Time flow
See variants See variants
TEMPOSTOP time flow shower valve

Presentation

DESCRIPTION

TEMPOSTOP time flow shower valve

Ref. 749000
Time flow shower valve for exposed installation:
TEMPOSTOP M¾" time flow valve for in-line mixed water supply.
For wall-mounted exposed installation.
Time flow ~30 seconds.
Flow rate 75 lpm at 3 bar.
Chrome-plated solid brass body and push-button.
30-year warranty.

ADVANTAGES

Endurance - Fiabilité

System tested to over 500,000 operations

Anti-vandalisme

Chrome-plated solid brass

Characteristics

TECHNICAL CHARACTERISTICS

TEMPOSTOP time flow shower valve

Ref. 749000

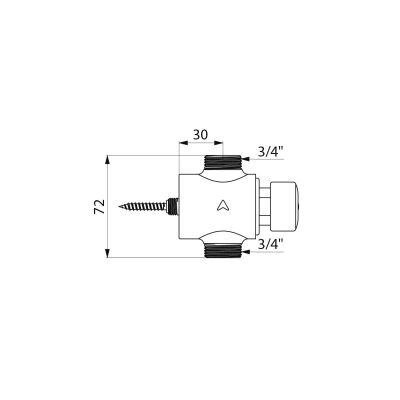

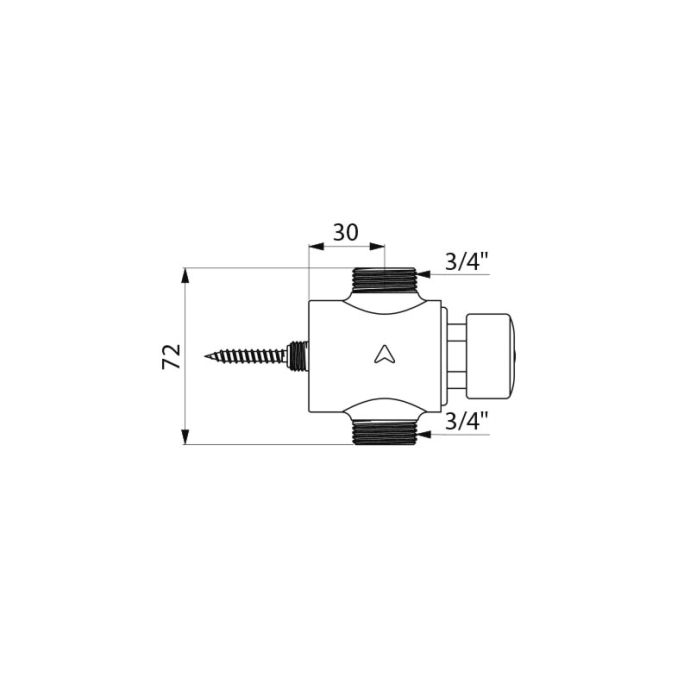

Connector ¾"
Technology Time flow
Height 72mm
Flow rate 75 lpm
Certificates ACS Logo PZH Logo DoP
Warranty 30-Year
TEMPOSTOP time flow shower valve
Ref. 749000

Downloads

DOWNLOADS

TEMPOSTOP time flow shower valve

Ref. 749000

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

749700 M3/4", inline inlet, 12 lpm
749721 Ø 15mm compression fittings, M3/4" outlet, inline inlet, 12 lpm

Associated products

VARIANTS

749700 M3/4", inline inlet, 12 lpm
749721 Ø 15mm compression fittings, M3/4" outlet, inline inlet, 12 lpm
