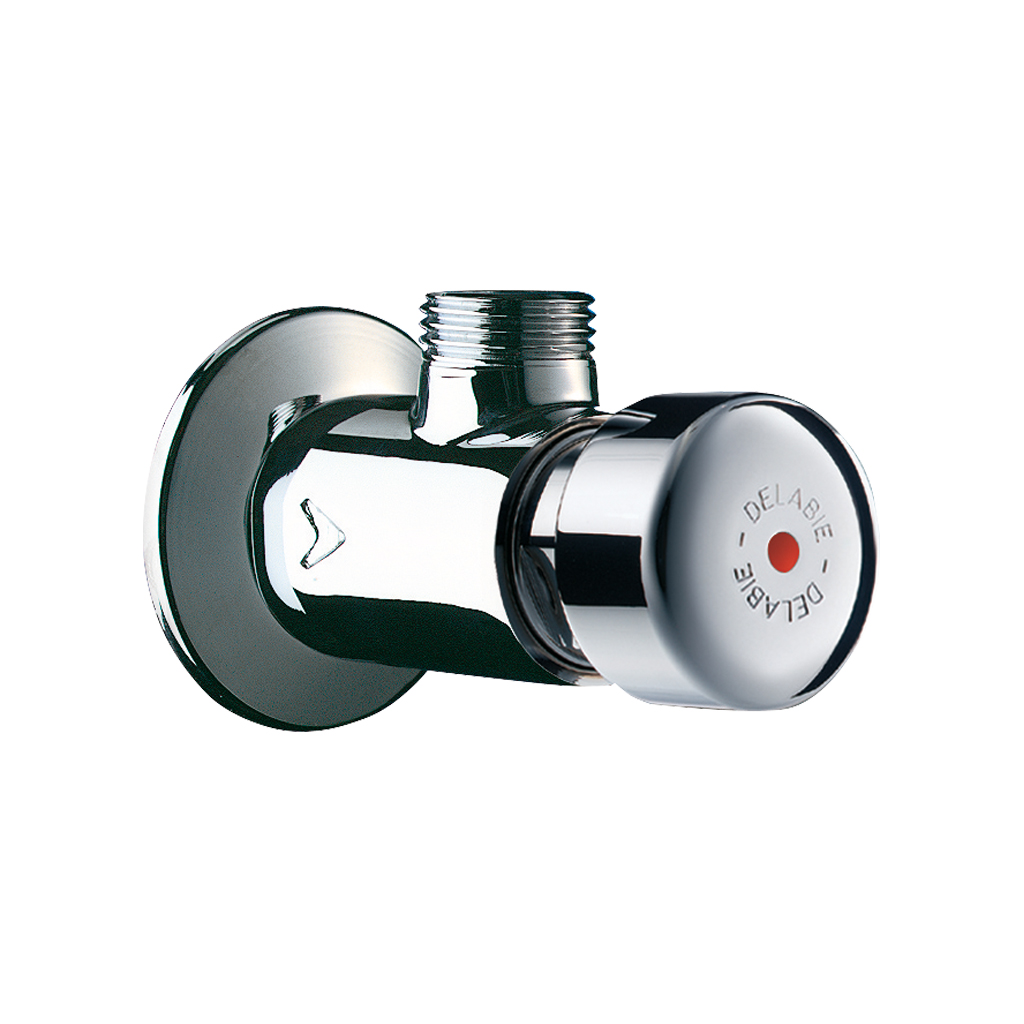

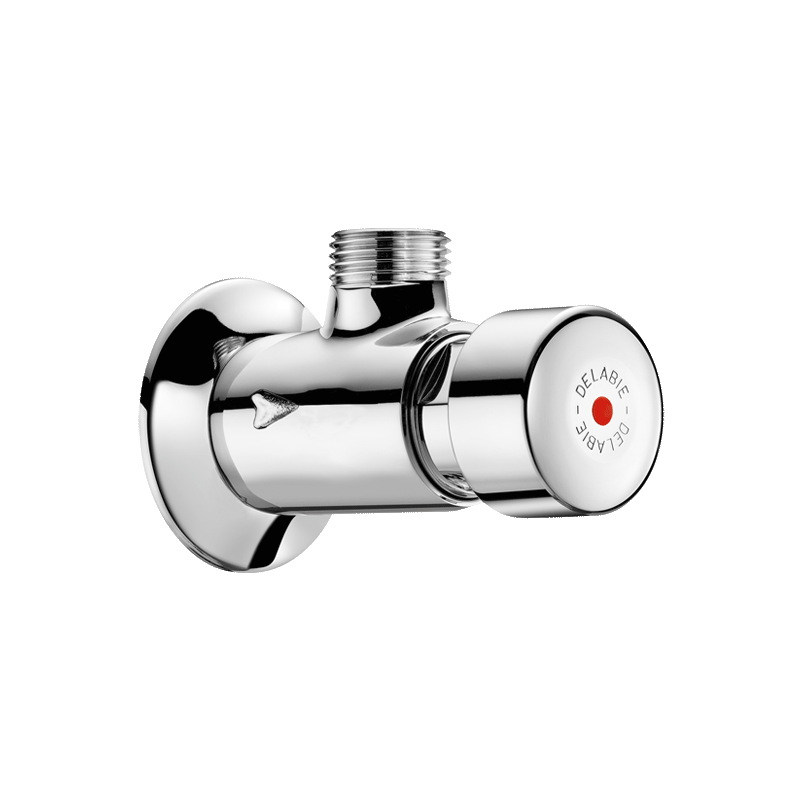

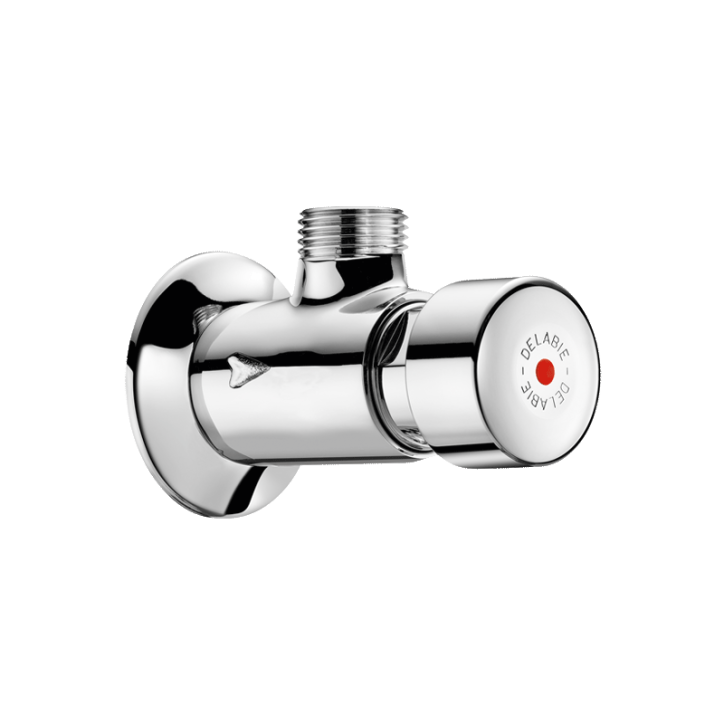

TEMPOSTOP time flow shower valve

Ref. 748000
Time flow
See variants See variants
TEMPOSTOP time flow shower valve

Presentation

DESCRIPTION

TEMPOSTOP time flow shower valve

Ref. 748000
Time flow shower valve for exposed installation:
TEMPOSTOP M1/2" time flow valve for mixed water supply.
For wall-mounted exposed installation.
Angled for recessed inlet.
Time flow ~15 seconds.
Flow rate pre-set at 9 lpm at 3 bar, can be adjusted.
Chrome-plated solid brass body and push-button.
30-year warranty.

ADVANTAGES

Endurance - Fiabilité

System tested to over 500,000 operations

Anti-vandalisme

Chrome-plated solid brass

Characteristics

TECHNICAL CHARACTERISTICS

TEMPOSTOP time flow shower valve

Ref. 748000
Connector 1/2"
Technology Time flow
Flow rate 9 lpm
Certificates ACS Logo PZH Logo DoP
Warranty 30-Year
TEMPOSTOP time flow shower valve
Ref. 748000

Downloads

DOWNLOADS

TEMPOSTOP time flow shower valve

Ref. 748000

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

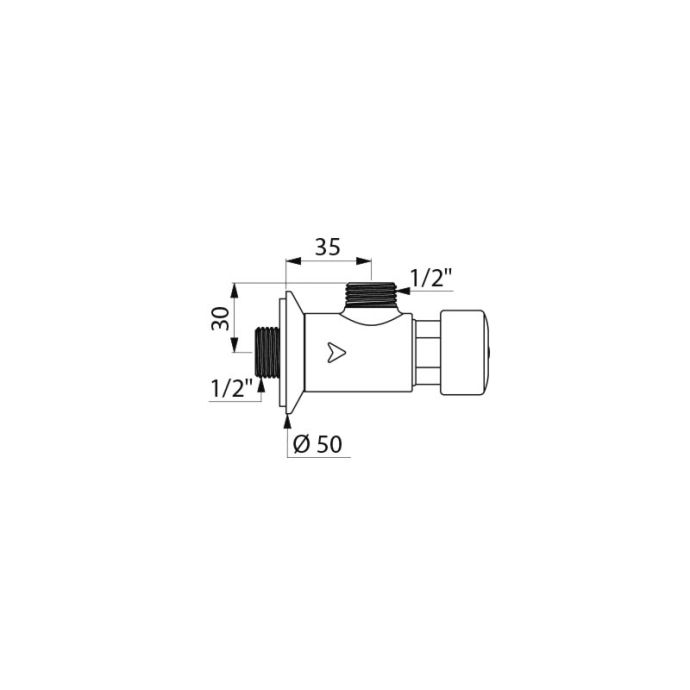

747000 M1/2", inline inlet, round st steel plate Ø50mm, 9 lpm

Associated products

VARIANTS

747000 M1/2", inline inlet, round st steel plate Ø50mm, 9 lpm
