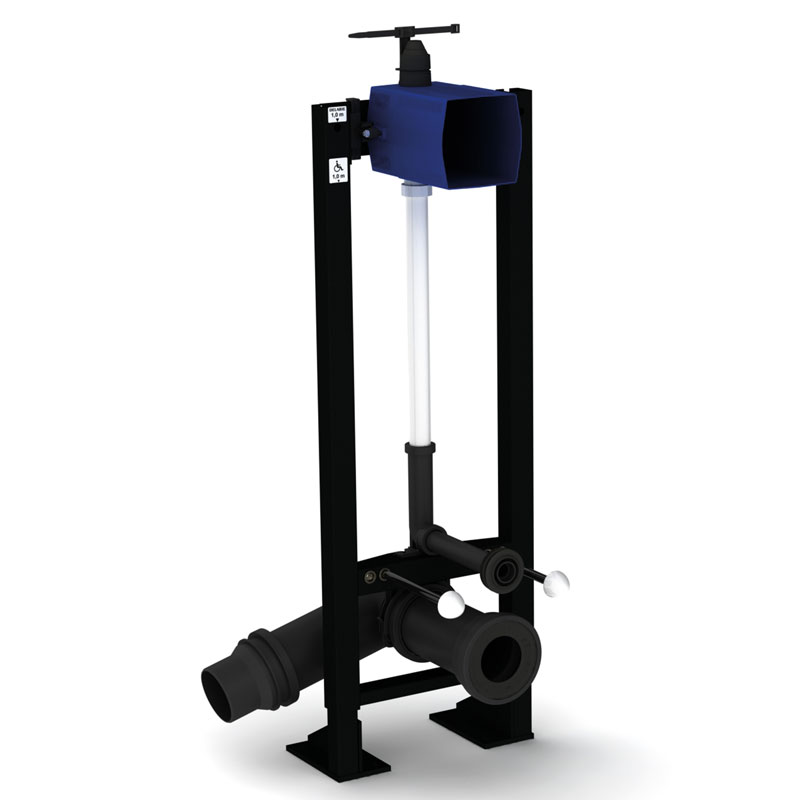

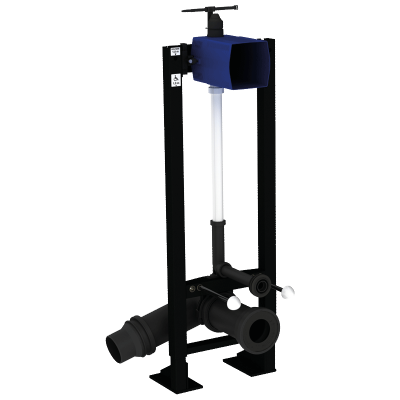

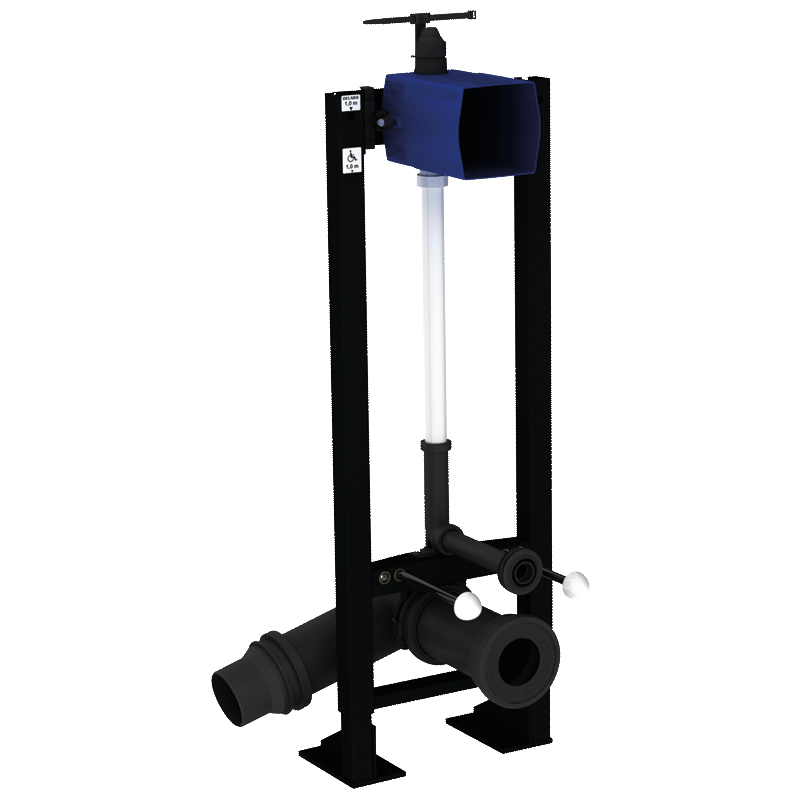

TEMPOFIX 3 self-supporting frame system for WCs

Ref. 564065BE
For battery-operated electronic or time flow flush valve - Ø 90mm
TEMPOFIX 3 self-supporting frame system for WCs

Presentation

DESCRIPTION

TEMPOFIX 3 self-supporting frame system for WCs

Ref. 564065BE
Self-supporting frame system for wall-hung WCs, kit 1/2:
Black powder-coated steel frame:
- With large feet for fixing to load-bearing floors.
- Frame height can be adjusted from 0 - 200mm (with 1m mark).
- Compatible with solid walls from 10 - 120mm.
- Ø 32mm flush tube with Ø 55mm connection washer.
- ABS soil pipe, Ø 90mm HDPE outlet with waterproof seal, with 2 setting positions.
Recessed waterproof housing: for flush system without cistern, directly connected to pipework.
- Compatible with electronic or time flow WC valve.
- Compatible with CR123 6V Lithium batteries.
- Backflow prevention device inside the housing.
- Integrated stopcock and flow rate regulation.
Supplied pre-mounted.
30-year warranty.

Order with control plate references 464006, 464056, 465006, 465056, 763000, 763030, 763040 or 763041.

ADVANTAGES

Maintenance aisée - Installation aisée

Quick and easy to install: delivered pre-mounted

Faible espacement au mur - Encombrement limité

Space-saving

Universel

Adapt to wall thickness

Piles

Compatible with 6V Lithium batteries

Characteristics

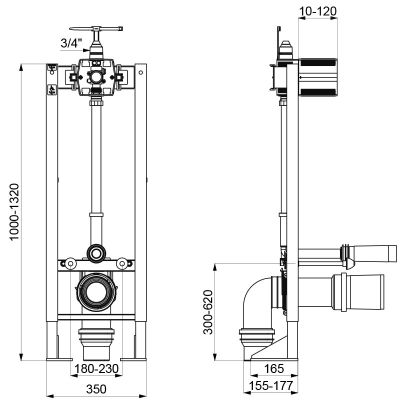

TECHNICAL CHARACTERISTICS

TEMPOFIX 3 self-supporting frame system for WCs

Ref. 564065BE
Connector ¾"
Technology Electronic and time flow
Height 1000 to 1320mm
Depth 157 - 177mm
Width 350mm
Diameter Ø 90mm outlet
Finish Black powder-coated steel
Certificates Logo Belgaqua
Warranty 30-Year

Downloads

DOWNLOADS

Bâti-support autoportant TEMPOFIX 3 pour WC

Ref. 564065BE

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

564005 Mains supply - Self-supporting- Ø100mm outlet connecton - For walls 10 - 120mm
564005BE Mains supply- self-supporting- for walls 10-120mm- F¾" - Ø90mm outlet
564005DE F3/4", mains supply 230/6V, Ø 110mm outlet
564065 Batteries- self-supporting- for walls 10-120mm- F¾" - Ø100mm outlet
564065DE Batteries - self-supporting- for walls 10-120mm - F¾" - Ø 110mm outlet
