TEMPOFIX 3 wall-mounted frame system for WCs
Ref. 564060
For time flow or battery-operated electronic valve - Ø 100mm outlet
For time flow or battery-operated electronic valve - Ø 100mm outlet
DESCRIPTION

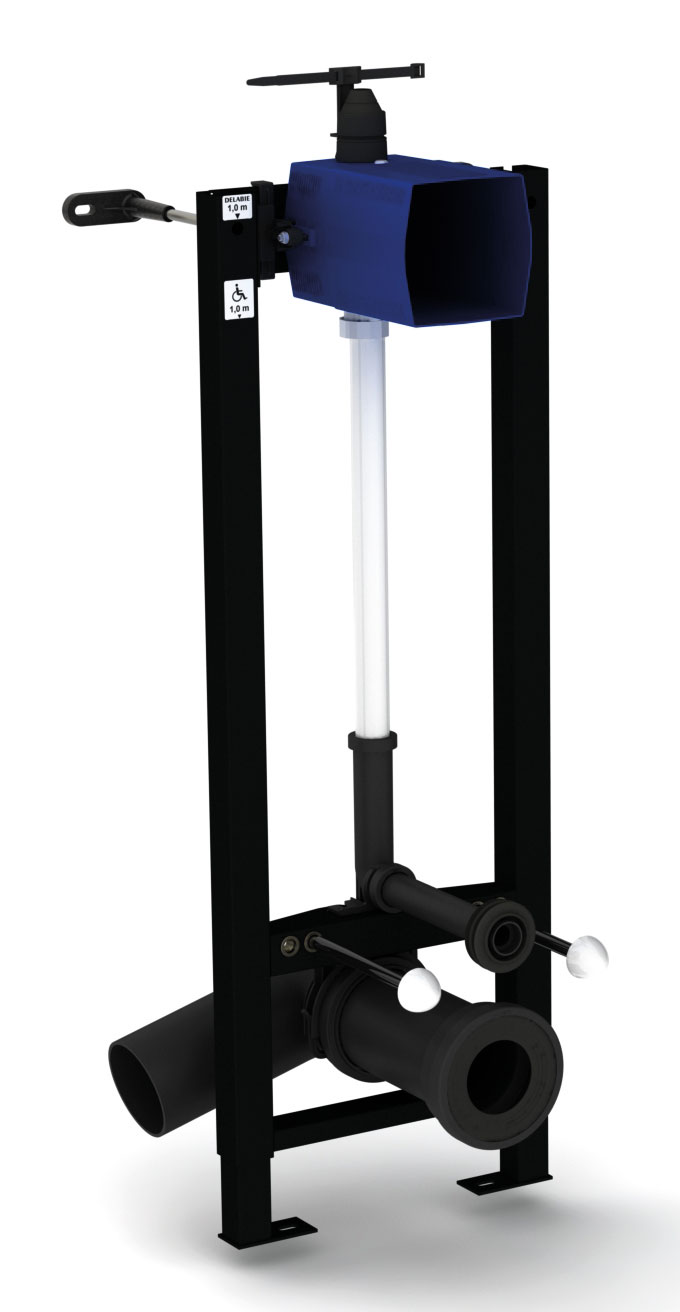

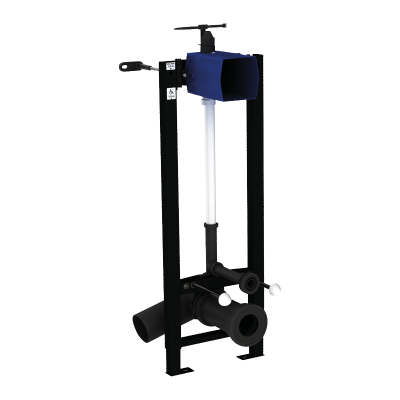

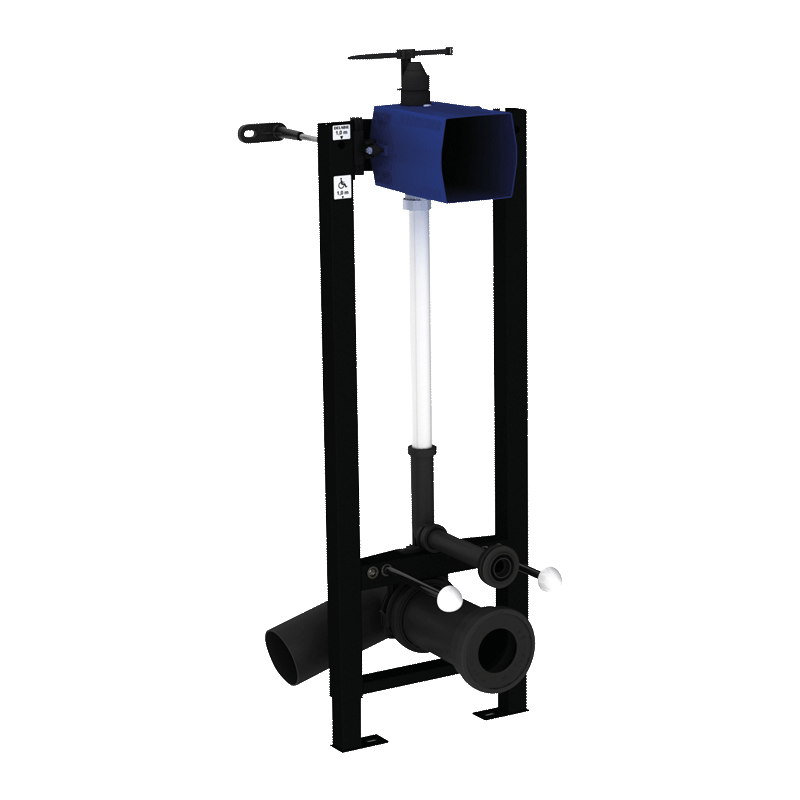

TEMPOFIX 3 wall-mounted frame system for WCs
Ref. 564060Wall-mounted frame system for wall-hung WCs, kit 1/2:
Black powder-coated steel frame:
- For fixing to load-bearing walls.
- Frame height can be adjusted from 0 - 200mm (with 1m mark).
- Compatible with solid walls from 10 - 120mm.
- Ø 32mm flush tube with Ø 55mm connection washer.
- PVC soil pipe, Ø 100mm outlet to glue to waterproof seal, with 2 setting positions.
Recessed waterproof housing: flush system without cistern, directly connected to pipework.
- Compatible with electronic or time flow valves for WCs.
- Compatible with CR123 Lithium 6V battery.
- Backflow prevention device inside the housing.
- Integrated stopcock and flow rate regulation.
Supplied pre-mounted.
30-year warranty.
Order with control plate references 464006, 465006, 465056, 763000, 763030, 763040 or 763041.
Black powder-coated steel frame:
- For fixing to load-bearing walls.
- Frame height can be adjusted from 0 - 200mm (with 1m mark).
- Compatible with solid walls from 10 - 120mm.
- Ø 32mm flush tube with Ø 55mm connection washer.
- PVC soil pipe, Ø 100mm outlet to glue to waterproof seal, with 2 setting positions.
Recessed waterproof housing: flush system without cistern, directly connected to pipework.
- Compatible with electronic or time flow valves for WCs.
- Compatible with CR123 Lithium 6V battery.
- Backflow prevention device inside the housing.
- Integrated stopcock and flow rate regulation.
Supplied pre-mounted.
30-year warranty.
Order with control plate references 464006, 465006, 465056, 763000, 763030, 763040 or 763041.
ADVANTAGES
Quick and easy to install: delivered pre-mounted
Space-saving
Adapt to wall thickness
Compatible with 6V Lithium batteries

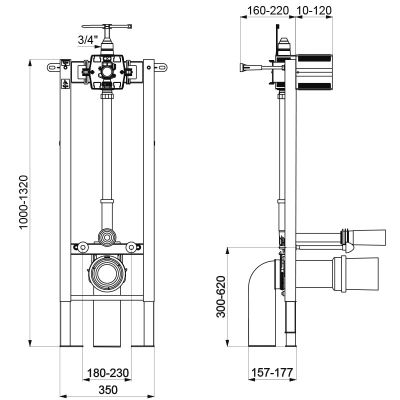

TECHNICAL CHARACTERISTICS
TEMPOFIX 3 wall-mounted frame system for WCs
Ref. 564060| Connector | ¾" |
| Technology | Electronic and time flow |
| Height | 1000 to 1320mm |
| Depth | 157 - 177mm |
| Width | 350mm |
| Diameter | Ø 100mm outlet |
| Finish | Black powder-coated steel |
| Certificates |
|
| Warranty |
|
VARIANTS
| 564000 | Mains supply- wall-mounted- for walls 10-120mm - F¾" - Ø 100mm outlet | ||
|---|---|---|---|
| 564000BE | Mains supply- wall-mounted- for walls 10-120mm - F¾" - Ø 90mm outlet | ||
| 564000DE | Mains supply- wall-mounted- for walls 10-120mm - F¾" - Ø 110mm outlet | ||
| 564060BE | Batteries - wall-mtd- for walls 10-120mm- F¾"- Ø 90mm outlet | ||
| 564060DE | Batteries - wall-mtd- for walls 10-120mm- F¾"- Ø 110mm outlet |
This intelligent, electronic direct flush valve functions without a cistern. Discover its advantages in this video

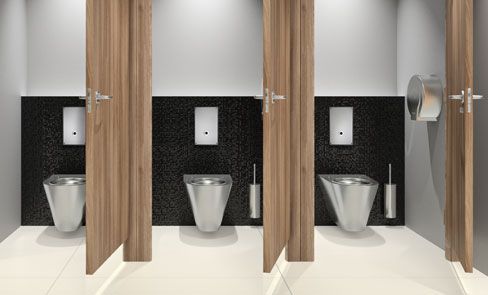

WC direct flush system, a public revolution
