TEMPOFIX 3 wall-mounted frame system for WCs

Ref. 564000BE
For TEMPOMATIC mains supply flush valve - Ø 90mm
TEMPOFIX 3 wall-mounted frame system for WCs

Presentation

DESCRIPTION

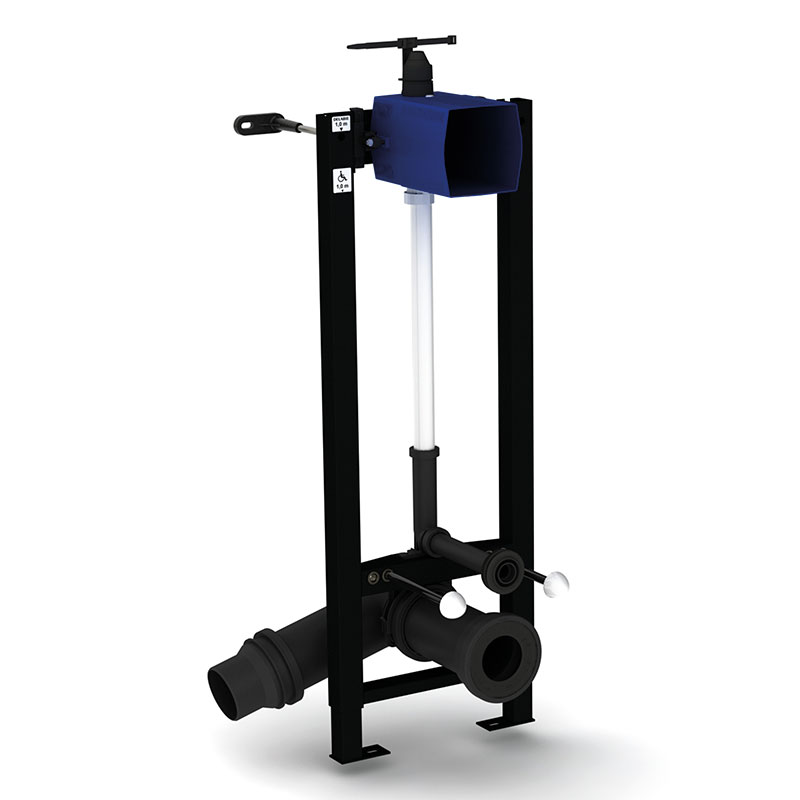

TEMPOFIX 3 wall-mounted frame system for WCs

Ref. 564000BE
Wall-mounted frame system for wall-hung WCs, kit 1/2:
Black powder-coated steel frame:
- For fixing to load-bearing walls.
- Frame height can be adjusted from 0 - 200mm (with 1m mark).
- Compatible with solid walls from 10 - 120mm.
- Ø 32mm flush tube with Ø 55mm connection washer.
- ABS soil pipe, Ø 90mm HDPE outlet with waterproof seal, with 2 setting positions.
Recessed waterproof housing: flush system without cistern, directly connected to pipework.
- Compatible with TEMPOMATIC dual control or TEMPOMATIC Connect electronic WC valves.
- Compatible with 230/6V mains supply.
- Backflow prevention device inside the housing.
- Integrated stopcock and flow rate regulation.
Supplied pre-mounted.
30-year warranty.

Order with control plate references 464000, 464050, 465000 or 465050.

ADVANTAGES

Maintenance aisée - Installation aisée

Quick and easy to install: delivered pre-mounted

Faible espacement au mur - Encombrement limité

Space-saving

Universel

Adapt to wall thickness

Secteur

Compatible with mains supply

Characteristics

TECHNICAL CHARACTERISTICS

TEMPOFIX 3 wall-mounted frame system for WCs

Ref. 564000BE
Connector ¾"
Technology Electronic and time flow
Height 1000 to 1320mm
Depth 157 - 177mm
Width 350mm
Diameter Ø 90mm outlet
Finish Black powder-coated steel
Certificates Logo HKWSD Logo Belgaqua
Warranty 30-Year

Downloads

DOWNLOADS

TEMPOFIX 3 wall-mounted frame system for WCs

Ref. 564000BE

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

564000 Mains supply- wall-mounted- for walls 10-120mm - F¾" - Ø 100mm outlet
564000DE Mains supply- wall-mounted- for walls 10-120mm - F¾" - Ø 110mm outlet
564060 Battery-operated - Wall-mounted - Ø 100mm outlet connection - For walls 10 - 120mm
564060BE Batteries - wall-mtd- for walls 10-120mm- F¾"- Ø 90mm outlet
564060DE Batteries - wall-mtd- for walls 10-120mm- F¾"- Ø 110mm outlet
This intelligent, electronic direct flush valve functions without a cistern. Discover its advantages in this video
This intelligent, electronic direct flush valve functions without a cistern. Discover its advantages in this video

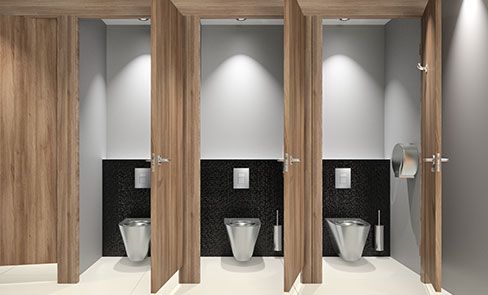

WC direct flush system, a public revolution
WC direct flush system, a public revolution
