DESCRIPTION

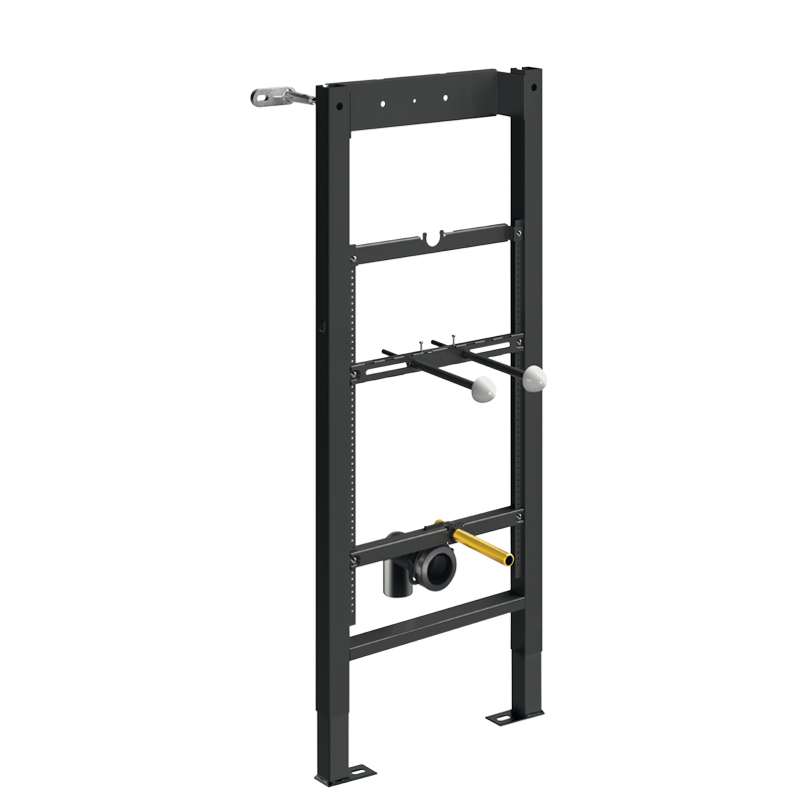

TEMPOFIX 3 frame system for urinals
Ref. 543130Frame system for FINO and DELTACÉRAM urinals:
Black powder-coated steel frame for wall-mounted installation.
Fixes to floor and load-bearing walls, anchoring bolts supplied.
Adjustable bracket.
Frame height can be adjusted from 0 - 200mm.
Ø 50mm soil pipe with waterproof seal.
Delivered pre-mounted.
Compatible with solid wall finishes from 13 - 110mm.
Compatible with HYBRIMATIC urinals (FINO or DELTACÉRAM).
Can also be used with any urinal on the market with flexible supply.
30-year warranty.
Black powder-coated steel frame for wall-mounted installation.
Fixes to floor and load-bearing walls, anchoring bolts supplied.
Adjustable bracket.
Frame height can be adjusted from 0 - 200mm.
Ø 50mm soil pipe with waterproof seal.
Delivered pre-mounted.
Compatible with solid wall finishes from 13 - 110mm.
Compatible with HYBRIMATIC urinals (FINO or DELTACÉRAM).
Can also be used with any urinal on the market with flexible supply.
30-year warranty.
ADVANTAGES
Quick and easy to install: supplied pre-assembled
TECHNICAL CHARACTERISTICS
TEMPOFIX 3 frame system for urinals

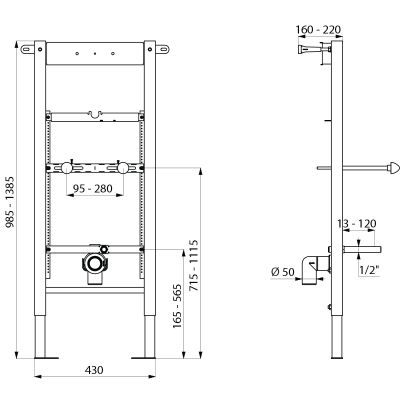

Ref. 543130Height | 985 - 1385mm |
Depth | 160 - 220mm |
Width | 430mm |
Finish | Black powder-coated |
Warranty |
