DESCRIPTION

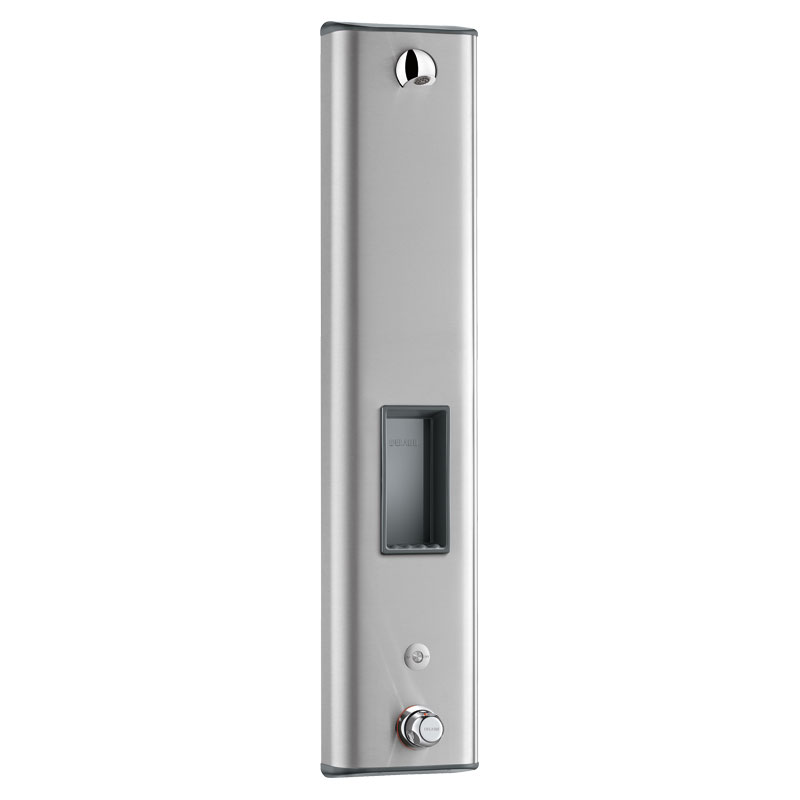

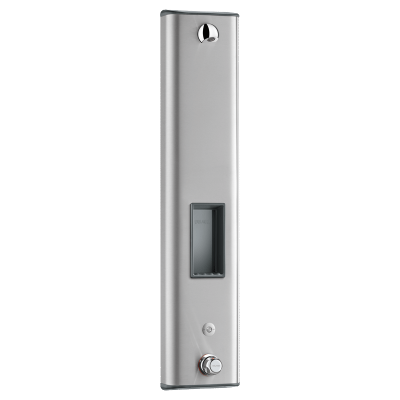

SECURITHERM shower panel
Ref. 792514Electronic thermostatic shower panel:
Large stainless steel panel for wall-mounted, exposed installation.
Concealed inlet via flexibles M½".
SECURITHERM thermostatic mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding failsafe: automatic shut-off if cold water fails.
Anti-cold showers function: automatic shut-off if hot water fails.
Thermal shocks are possible.
Mains supply 230/6V.
Shower starts when electronic push-button is pressed.
Shuts off voluntarily or automatically after ~60 seconds.
Duty flush (~60 seconds every 24 hours after the last use).
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
Integrated soap dish.
Filters and non-return valves.
Stopcocks M½".
Concealed fixings.
Suitable for people with reduced mobility.
30-year warranty.
Large stainless steel panel for wall-mounted, exposed installation.
Concealed inlet via flexibles M½".
SECURITHERM thermostatic mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding failsafe: automatic shut-off if cold water fails.
Anti-cold showers function: automatic shut-off if hot water fails.
Thermal shocks are possible.
Mains supply 230/6V.
Shower starts when electronic push-button is pressed.
Shuts off voluntarily or automatically after ~60 seconds.
Duty flush (~60 seconds every 24 hours after the last use).
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
Integrated soap dish.
Filters and non-return valves.
Stopcocks M½".
Concealed fixings.
Suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES
![Economie d'eau](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/9/5/9/2/2959-12-eng-US/economie-deau.png)
80% water savings
![Rinçage périodique](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/1/7/0/3/3071-12-eng-US/rincage-periodique.png)
Anti-bacterial proliferation duty flush
![Confort - Ergonomie - Déclenchement souple](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/3/0/9/2/2903-13-eng-US/confort.png)
Thermostatic temperature regulation
![Sécurité anti-brûlure](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/1/4/1/3/3141-12-eng-US/antibrulure.png)
Instant shut-off if cold water fails
TECHNICAL CHARACTERISTICS

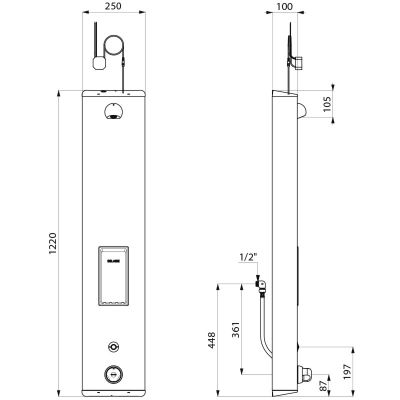

SECURITHERM shower panel
Ref. 792514Supply | 230/6V mains supply |
Connector | M½" |
Technology | Electronic |
Height | 1220mm |
Depth | 100mm |
Width | 250mm |
Flow rate | 6 lpm |
Temperature limiter | Thermostatic |
Finish | Stainless steel |
Certificates |
![]() ![]() ![]() |
Warranty | ![]() |
VARIANTS
792504 | Mains supply 230/6V, M1/2" top, w. soap dish, 6 lpm -adj. temp. limit |
---|
VARIANTS
792504 | Mains supply 230/6V, M1/2" top, w. soap dish, 6 lpm -adj. temp. limit |
---|
