DESCRIPTION

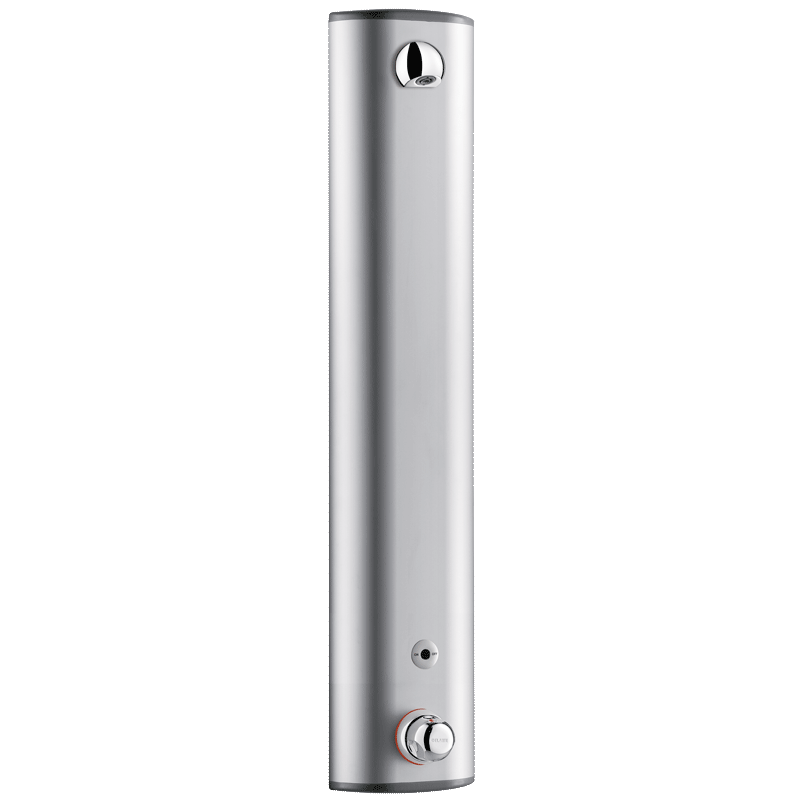

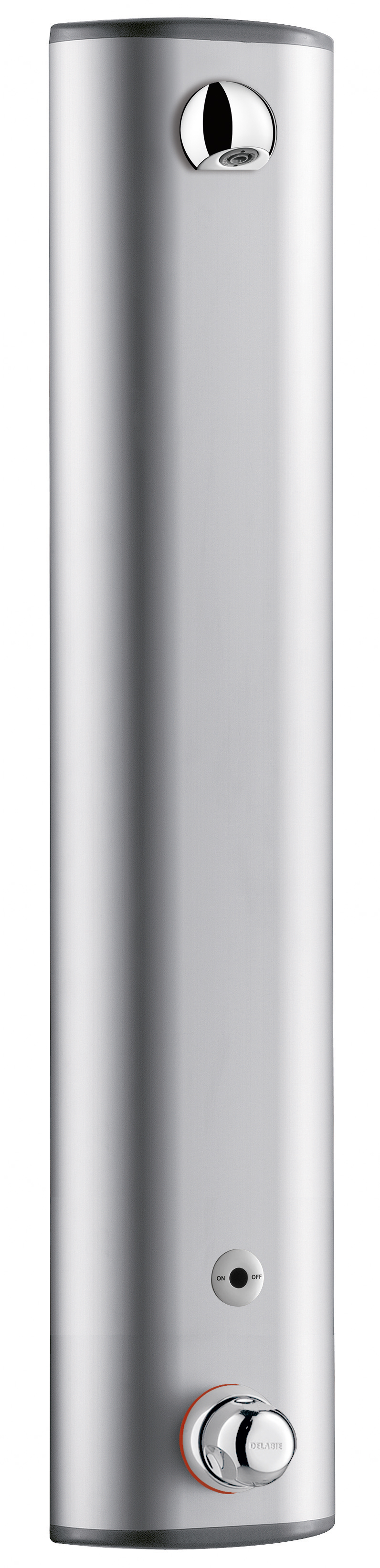

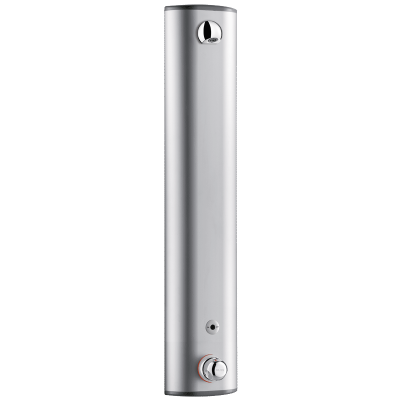

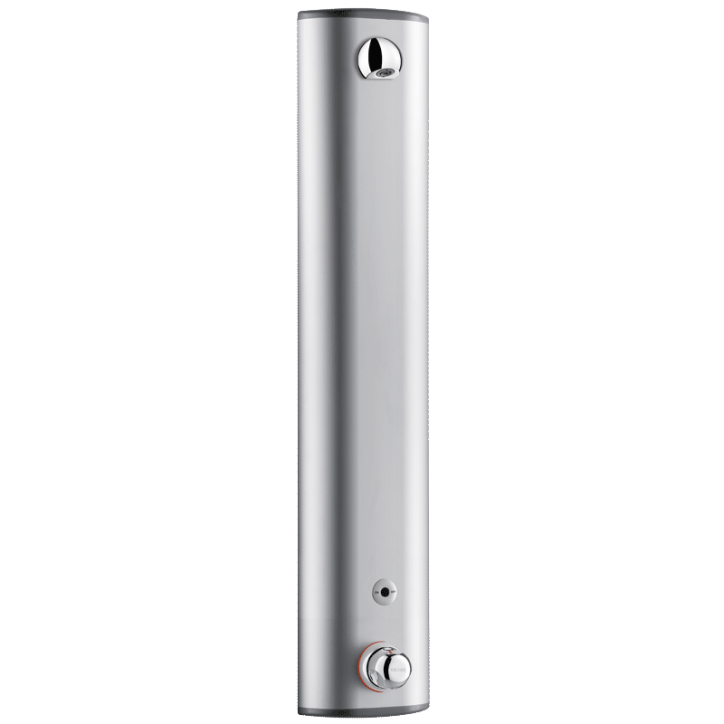

SECURITHERM shower panel
Ref. 792410UKElectronic thermostatic shower panel:
Anodised aluminium shower panel for wall-mounted, exposed installation.
Concealed inlets via flexibles M½".
SECURITHERM thermostatic shower mixer.
Adjustable temperature control from cold water up to 38°C: 1st limiter set at 38°C, 2nd limiter set at 41°C.
Anti-scalding safety: immediate shut-off if cold or hot water supply fails.
Thermal shocks are possible.
Battery-operated with CR-P2 223 6V Lithium battery.
Infrared presence detection. Shower starts when hand is 4cm from the sensor.
Shuts off voluntarily or automatically after ~60 seconds.
Duty flush (~60 seconds every 24 hours after the last use).
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant, fixed, ROUND shower head with automatic flow rate regulation.
Concealed fixings.
Filters and non-return valves.
Electronic shower panel suitable for people with reduced mobility.
30-year warranty.
Anodised aluminium shower panel for wall-mounted, exposed installation.
Concealed inlets via flexibles M½".
SECURITHERM thermostatic shower mixer.
Adjustable temperature control from cold water up to 38°C: 1st limiter set at 38°C, 2nd limiter set at 41°C.
Anti-scalding safety: immediate shut-off if cold or hot water supply fails.
Thermal shocks are possible.
Battery-operated with CR-P2 223 6V Lithium battery.
Infrared presence detection. Shower starts when hand is 4cm from the sensor.
Shuts off voluntarily or automatically after ~60 seconds.
Duty flush (~60 seconds every 24 hours after the last use).
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant, fixed, ROUND shower head with automatic flow rate regulation.
Concealed fixings.
Filters and non-return valves.
Electronic shower panel suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES
Total hygiene: operate without manual contact
Duty flush limits proliferation of bacteria
Thermostatic temperature regulation
Instant shut-off if cold water fails

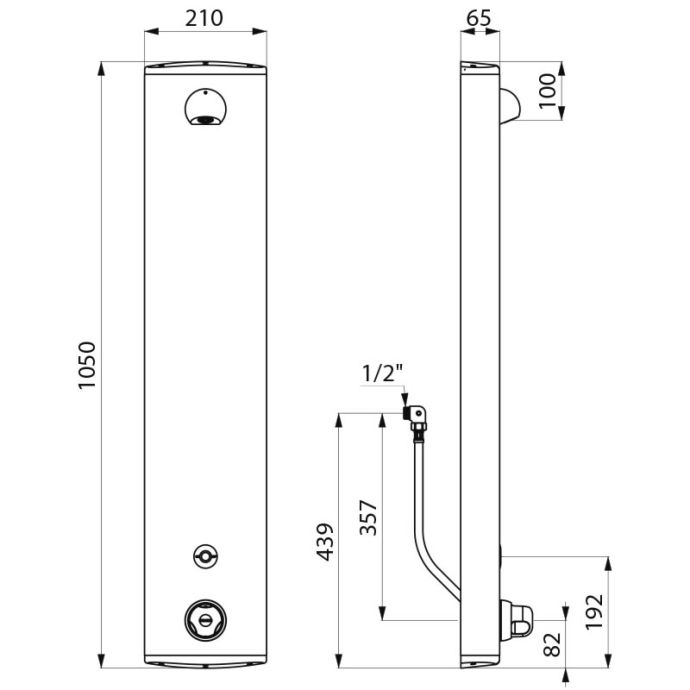

TECHNICAL CHARACTERISTICS
SECURITHERM shower panel
Ref. 792410UKSupply | 6V battery |
Connector | M1/2" |
Technology | Electronic |
Height | 1050mm |
Depth | 65mm |
Width | 210mm |
Flow rate | 6 lpm |
Temperature limiter | thermostatic |
Finish | Aluminium |
Warranty |
VARIANTS
792400 | 6V battery, M1/2" top inlet, without soap dish, 6 lpm | ||
---|---|---|---|
79240015 | 6V battery, Ø 15mm compression fittings, top inlet, no soap dish, 6lpm | ||
792410 | 6V battery, M1/2" concealed flexibles, without soap dish, 6 lpm |
