DESCRIPTION

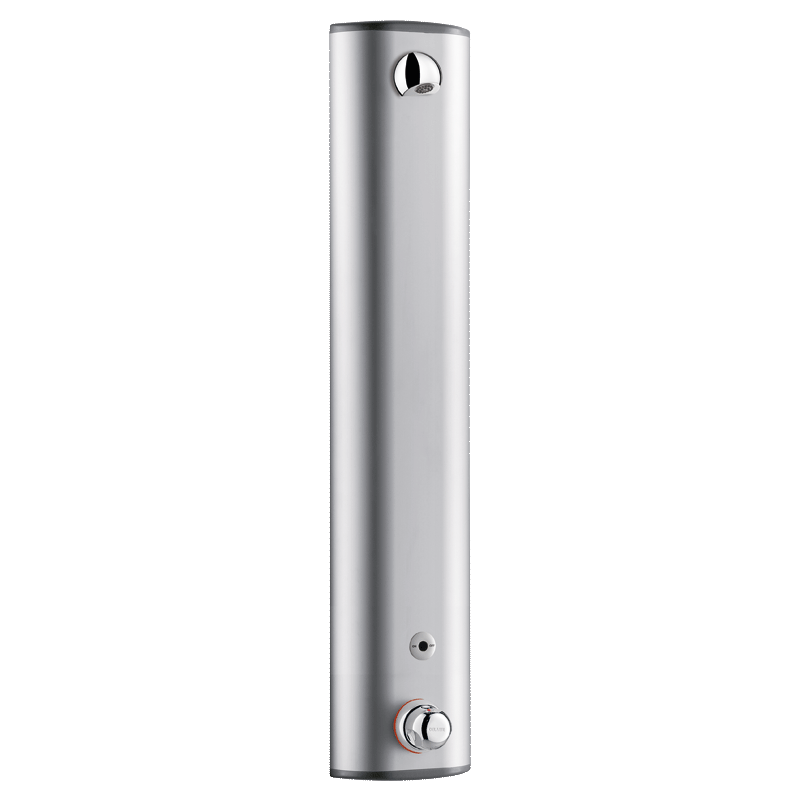

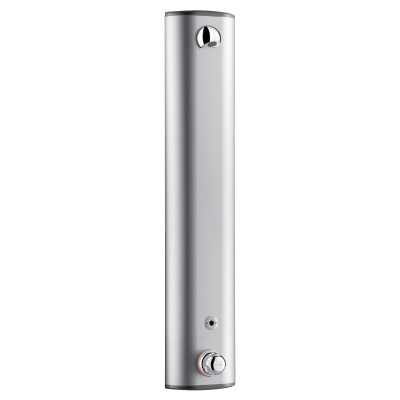

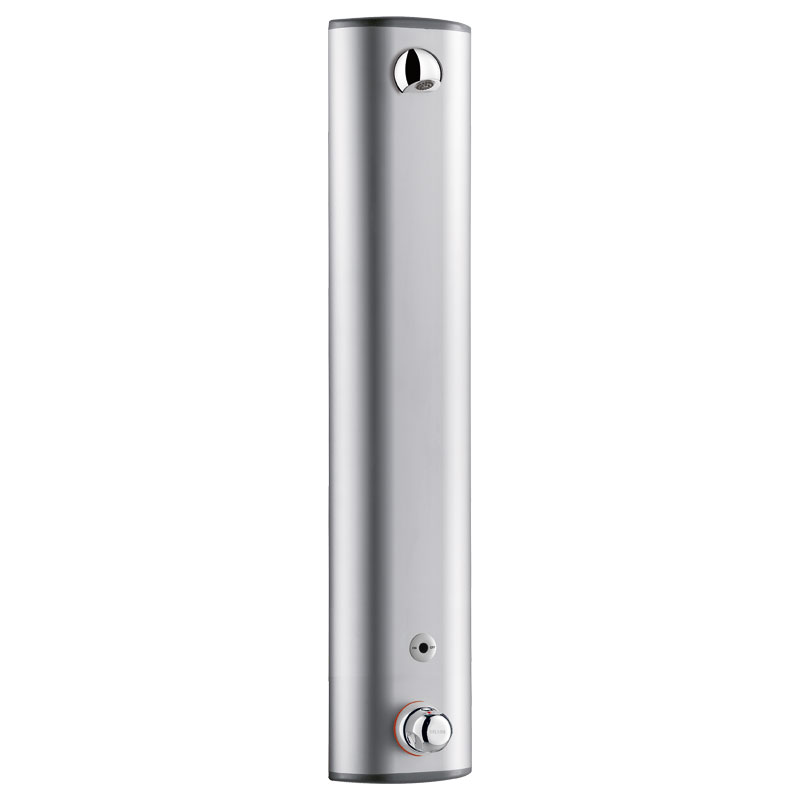

SECURITHERM shower panel
Ref. 792410Electronic thermostatic shower panel:
Anodised aluminium shower panel for wall-mounted, exposed installation.
With concealed inlet via flexibles, M1/2".
SECURITHERM thermostatic mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding failsafe: automatic shut-off if cold water fails.
Anti-cold showers function: automatic shut-off if hot water fails.
Thermal shocks are possible.
Battery-operated with 223 6V Lithium battery.
Infrared presence detection. Shower starts when hand is 4cmfrom the sensor.
Shuts off on demand or automatically after ~60 seconds.
Duty flush (~60 seconds every 24 hours after the last use).
Flow rate set at 6 lpm at 3 bar, can be adjusted, rain-effect spray.
Chrome-plated, tamperproof ROUND shower head.
Concealed fixings.
Filters and non-return valves.
Suitable for people with reduced mobility.
30-year warranty.
Anodised aluminium shower panel for wall-mounted, exposed installation.
With concealed inlet via flexibles, M1/2".
SECURITHERM thermostatic mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding failsafe: automatic shut-off if cold water fails.
Anti-cold showers function: automatic shut-off if hot water fails.
Thermal shocks are possible.
Battery-operated with 223 6V Lithium battery.
Infrared presence detection. Shower starts when hand is 4cmfrom the sensor.
Shuts off on demand or automatically after ~60 seconds.
Duty flush (~60 seconds every 24 hours after the last use).
Flow rate set at 6 lpm at 3 bar, can be adjusted, rain-effect spray.
Chrome-plated, tamperproof ROUND shower head.
Concealed fixings.
Filters and non-return valves.
Suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES
Total hygiene: operate without manual contact
Automatic flush anti-bacterial proliferation
Thermostatic temperature regulation
Instant shut-off if cold water supply fails

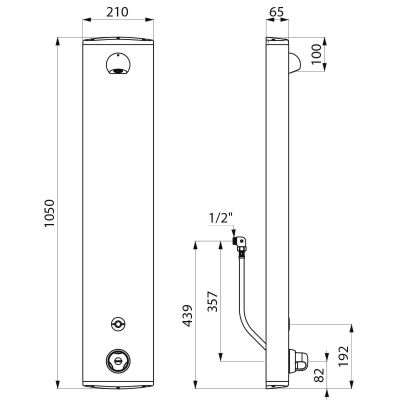

TECHNICAL CHARACTERISTICS
SECURITHERM shower panel
Ref. 792410Supply | 6V battery |
Connector | M1/2" |
Technology | Electronic |
Height | 1050mm |
Depth | 65mm |
Width | 210mm |
Flow rate | 6 lpm |
Temperature limiter | Thermostatic |
Finish | Aluminium |
Certificates | |
Warranty |
VARIANTS
792400 | 6V battery, M1/2" top inlet, without soap dish, 6 lpm | ||
---|---|---|---|
79240015 | 6V battery, Ø 15mm compression fittings, top inlet, no soap dish, 6lpm | ||
792410UK | 6V battery, M1/2" concealed flexibles, without soap dish, 6 lpm |
VARIANTS
792400 | 6V battery, M1/2" top inlet, without soap dish, 6 lpm | ||
---|---|---|---|
79240015 | 6V battery, Ø 15mm compression fittings, top inlet, no soap dish, 6lpm | ||
792410UK | 6V battery, M1/2" concealed flexibles, without soap dish, 6 lpm |
