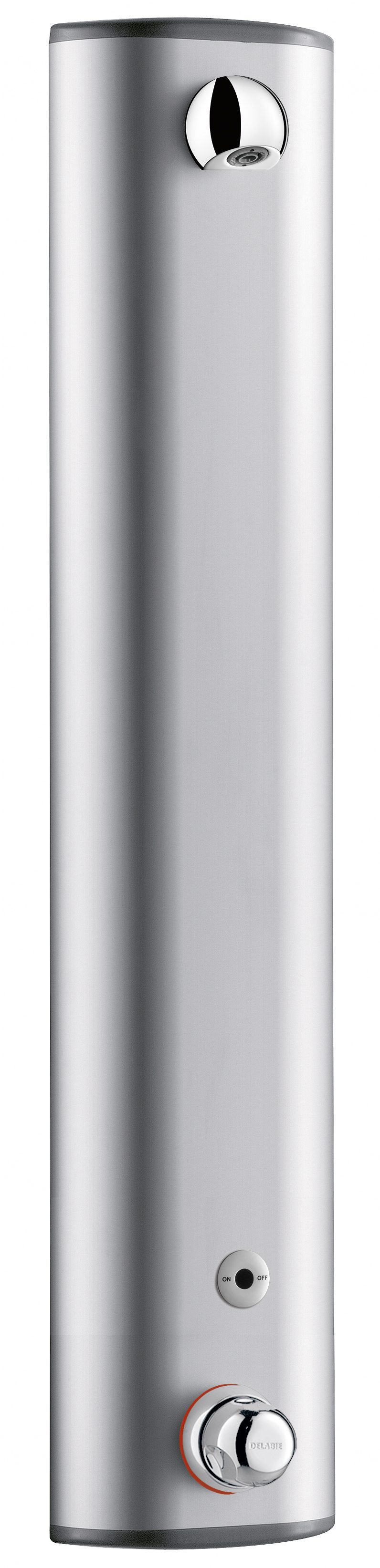

SECURITHERM shower panel
Ref. 79240015
Electronic battery-operated thermostatic
Electronic battery-operated thermostatic
DESCRIPTION
SECURITHERM shower panel
Ref. 79240015Thermostatic electronic shower panel:
Anodised aluminium shower panel for wall-mounted, exposed installation.
With top inlet via in-line stopcocks and Ø 15mm conical inlets.
SECURITHERM thermostatic shower mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding failsafe: automatic shut-off if cold water fails.
Anti-cold showers function: automatic shut-off if hot water fails.
Thermal shocks are possible.
Battery-operated with CR-P2 223 6V Lithium battery.
Infrared presence detection. Shower starts when hand is 4cm from the sensor.
Shuts off on demand or automatically after ~60 seconds.
Duty flush (~60 seconds every 24 hours after the last use).
Flow rate set at 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant, fixed, ROUND shower head with automatic flow rate regulation.
Concealed fixings.
Filters and non-return valves.
Electronic shower panel suitable for people with reduced mobility.
30-year warranty.
Anodised aluminium shower panel for wall-mounted, exposed installation.
With top inlet via in-line stopcocks and Ø 15mm conical inlets.
SECURITHERM thermostatic shower mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding failsafe: automatic shut-off if cold water fails.
Anti-cold showers function: automatic shut-off if hot water fails.
Thermal shocks are possible.
Battery-operated with CR-P2 223 6V Lithium battery.
Infrared presence detection. Shower starts when hand is 4cm from the sensor.
Shuts off on demand or automatically after ~60 seconds.
Duty flush (~60 seconds every 24 hours after the last use).
Flow rate set at 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant, fixed, ROUND shower head with automatic flow rate regulation.
Concealed fixings.
Filters and non-return valves.
Electronic shower panel suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES
Total hygiene: operate without manual contact
Duty flush limits bacterial proliferation
Thermostatic temperature regulation
Instant shut-off if cold water supply fails
TECHNICAL CHARACTERISTICS
SECURITHERM shower panel
Ref. 79240015| Supply | 6V battery |
| Connector | M1/2'' Ø 15mm |
| Technology | Electronic |
| Height | 1050mm |
| Depth | 65mm |
| Width | 210mm |
| Flow rate | 6 lpm |
| Temperature limiter | Thermostatic |
| Finish | Aluminium |
| Warranty |
|
VARIANTS
| 792400 | 6V battery, M1/2" top inlet, without soap dish, 6 lpm | ||
|---|---|---|---|
| 792410 | 6V battery, M1/2" concealed flexibles, without soap dish, 6 lpm | ||
| 792410UK | 6V battery, M1/2" concealed flexibles, without soap dish, 6 lpm |
Associated products
Adjustable height floor trap
For tiles or concrete floors
Ref. 682001UK
Cut-to-size extension
For aluminium shower panel
Ref. 790152
Comfort nozzle
Rain-effect
Ref. DP
VARIANTS
| 792400 | 6V battery, M1/2" top inlet, without soap dish, 6 lpm | ||
|---|---|---|---|
| 792410 | 6V battery, M1/2" concealed flexibles, without soap dish, 6 lpm | ||
| 792410UK | 6V battery, M1/2" concealed flexibles, without soap dish, 6 lpm |
