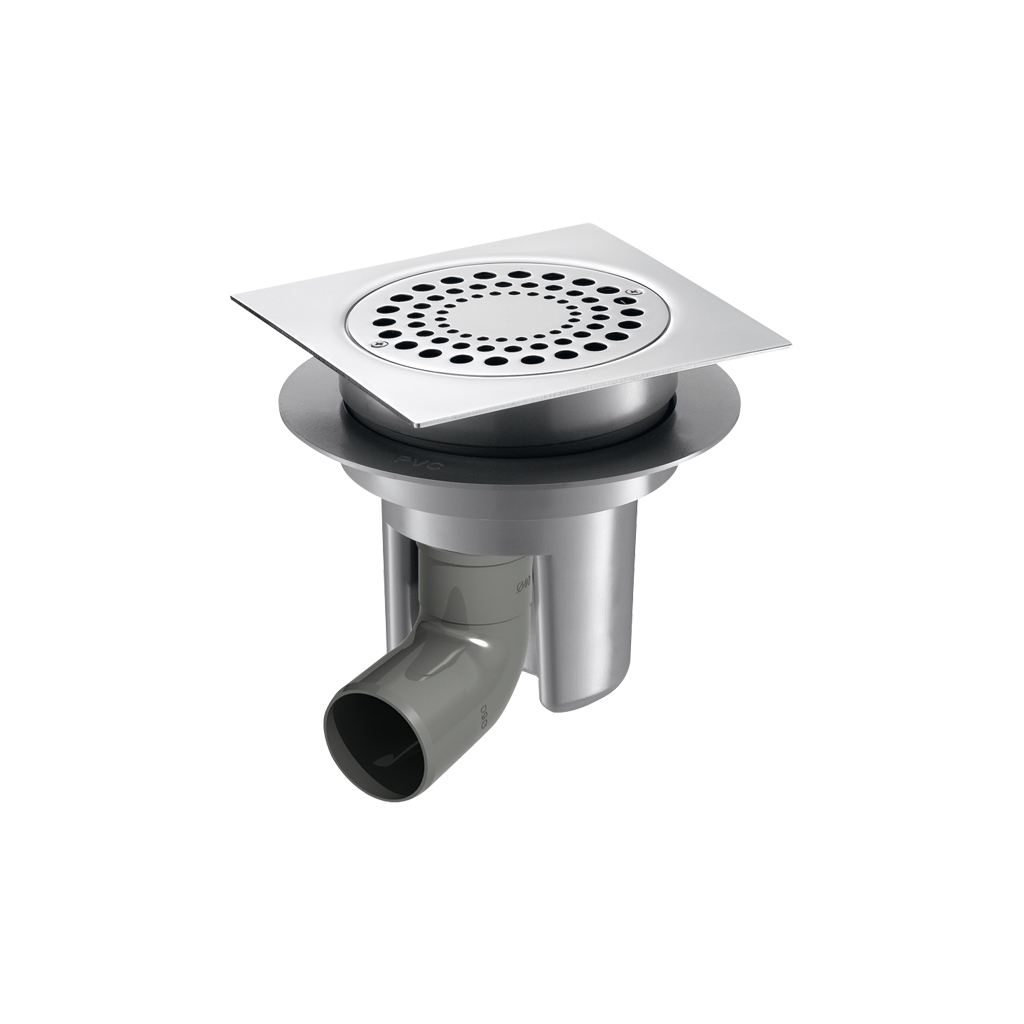

Floor trap

Ref. 683001DE
For tiled or concrete floors
Floor trap

Presentation

DESCRIPTION

Floor trap

Ref. 683001DE
Floor trap for hard floors (tiles or concrete) with adjustable height:
Flow rate 36 lpm (standard).
Water level 50mm.
Bright polished stainless steel plate and grid 150x150mm.
Ø 50mm horizontal outlet integrated into the height of the floor trap (saves height and space in all directions).
Integrated waterproof collar to seal waterproof membrane.
Withstands high temperatures: 60°C continuous, 85°C peak.
Plunger with handle: easy to grip and easy to clean.
Smooth PVC body (prevents build-up of impurities).
Classified non-flammable (American certification UL94).
110mm high, adjusts up to 70mm with extension.
Grill fixed with two stainless steel screws.
30-year warranty.

ADVANTAGES

Maintenance aisée - Installation aisée

Trap adapted to floor type, adjustable height

Nettoyage aisé

Plunger with handle, body free of impurities

Characteristics

TECHNICAL CHARACTERISTICS

Floor trap

Ref. 683001DE
Height 180mm max
Length 150mm
Width 150mm
Flow rate 36 lpm
Warranty 30-Year

Downloads

DOWNLOADS

Floor trap

Ref. 683001DE

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

683001 Ø 40mm outlet- tiled or concrete floors - 150 x 150mm - Height ≤ 70mm
683001UK Ø43mm outlet- tiled or concrete floors - 150 x 150mm - Height ≤ 70mm

VARIANTS

683001 Ø 40mm outlet- tiled or concrete floors - 150 x 150mm - Height ≤ 70mm
683001UK Ø43mm outlet- tiled or concrete floors - 150 x 150mm - Height ≤ 70mm
