Floor trap

Ref. 683001
For tiled or concrete floors
See variants See variants
Floor trap

Presentation

DESCRIPTION

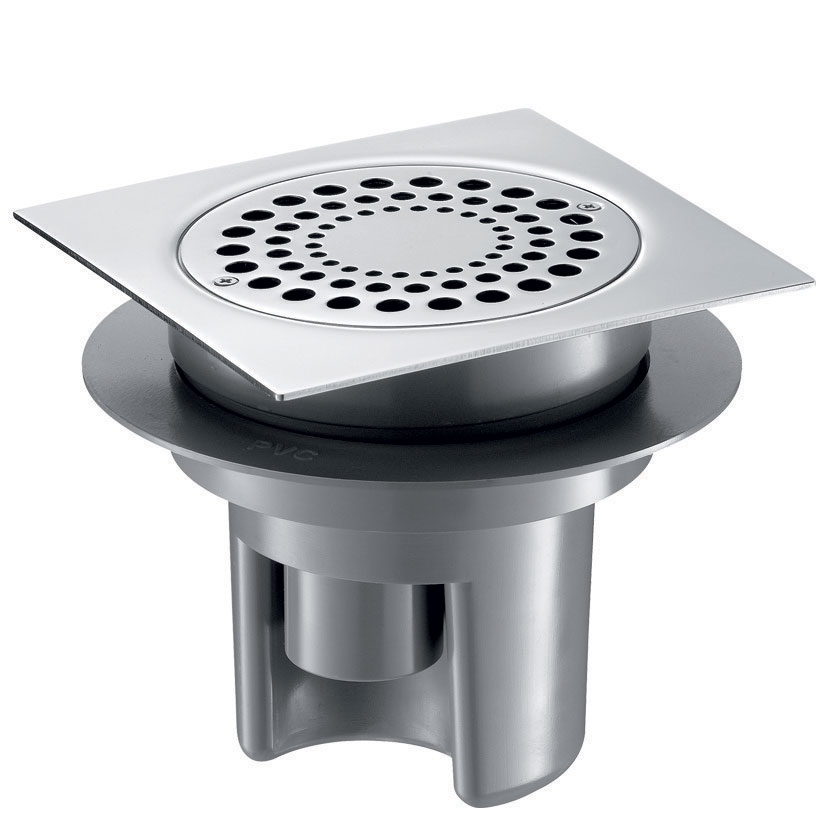

Floor trap

Ref. 683001
Floor trap for hard floors (tiles or concrete) with adjustable height:
Flow rate 36 lpm (meets standards).
Water level 50mm.
150x150mm bright polished stainless steel plate and grid.
Horizontal (elbow joint not supplied) or vertical outlet Ø 40mm integrated into the height of the floor trap (saves height and space in all dimensions).
Integrated waterproof plate to seal waterproof membrane.
Withstands high temperatures: 60°C continuous, 85°C peak.
Plunger with handle: easy to grip and easy to clean.
Smooth PVC body (prevents build-up of impurities).
Classified non-flammable (American certification UL94).
110mm high, adjusts up to 70mm with extension.
Grid fixed with 2 stainless steel screws.
30-year warranty.

ADVANTAGES

Maintenance aisée - Installation aisée

Trap adaptable to type of floor, adjustable height

Nettoyage aisé

Plunger with handle, body is completely smooth

Anti-vandalisme

Tamperproof stainless steel grid

Characteristics

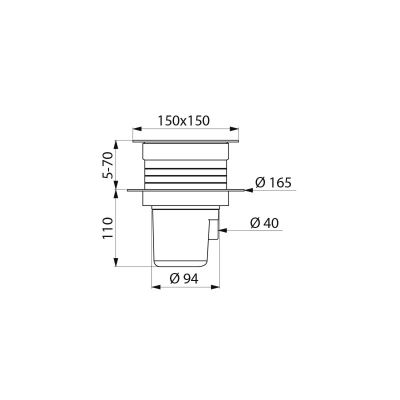

TECHNICAL CHARACTERISTICS

Floor trap

Ref. 683001
Height 180mm max
Length 150mm
Width 150mm
Flow rate 36 lpm
Certificates Logo DoP
Warranty 30-Year

Downloads

DOWNLOADS

Floor trap

Ref. 683001

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

683001DE Bright pol st steel plate & grid 150x150mm, Ø 50mm horizontal outlet
683001UK Ø43mm outlet- tiled or concrete floors - 150 x 150mm - Height ≤ 70mm

VARIANTS

683001DE Bright pol st steel plate & grid 150x150mm, Ø 50mm horizontal outlet
683001UK Ø43mm outlet- tiled or concrete floors - 150 x 150mm - Height ≤ 70mm
