DESCRIPTION

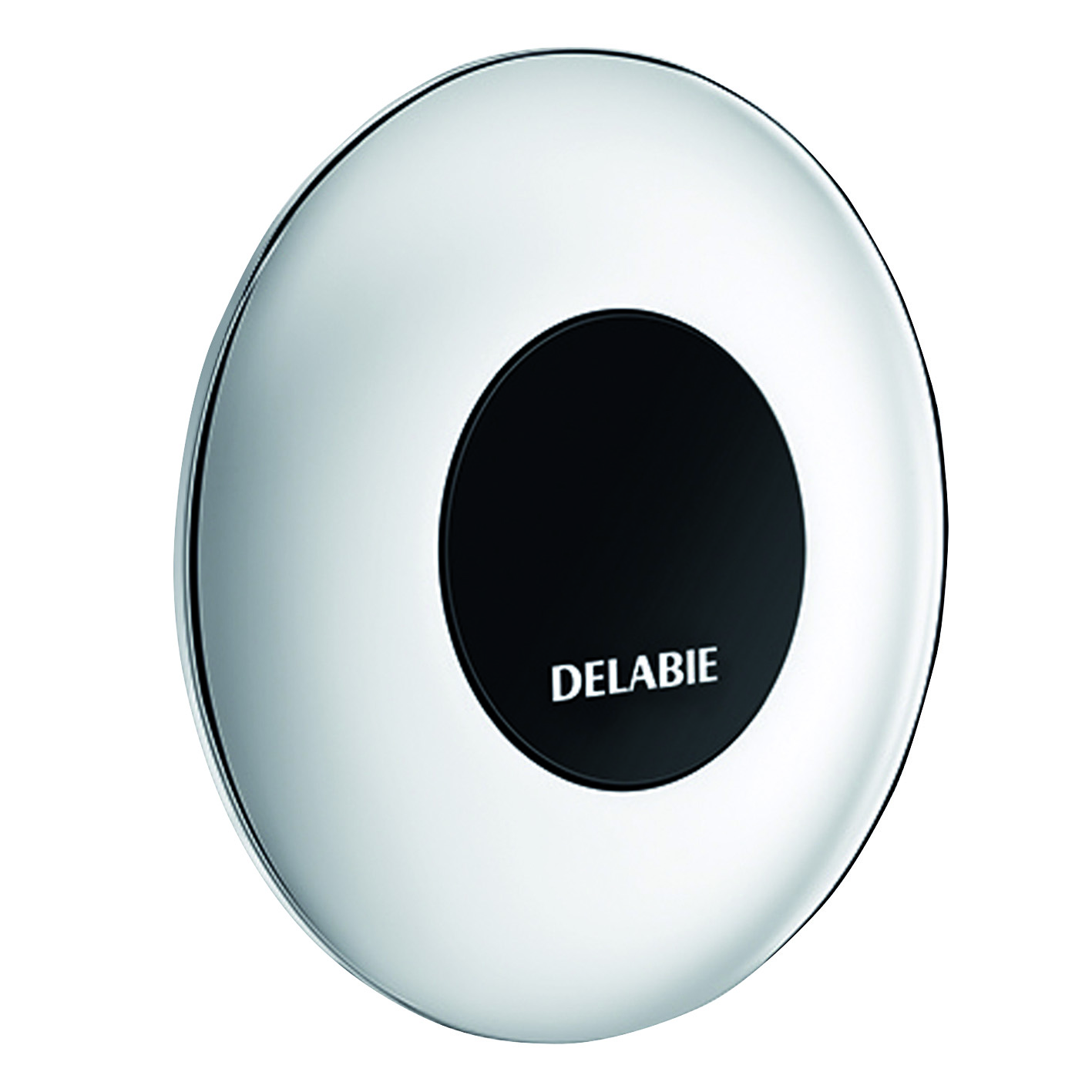

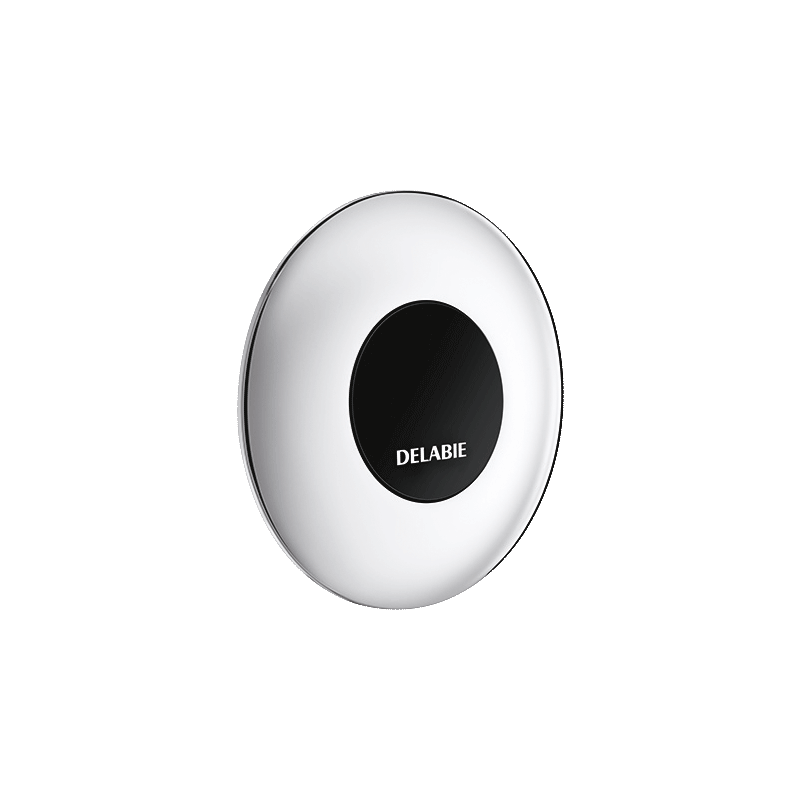

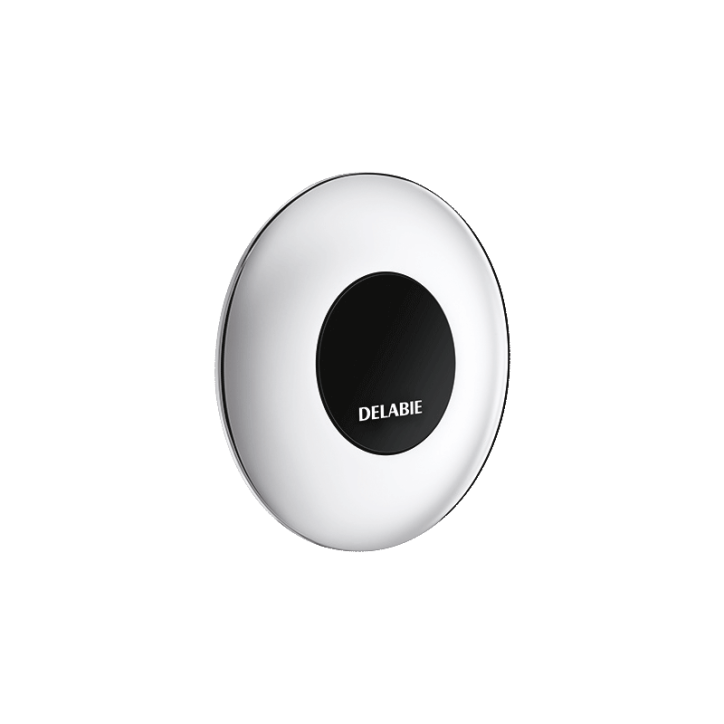

TEMPOMATIC electronic shower valve
Ref. 452150Cross wall electronic shower valve:
TEMPOMATIC electronic valve for mixed water supply.
For walls ≤ 155mm.
Power supply by electronic unit with solenoid valve ½".
230/12V transformer.
2 operation modes:
- Automatic activation using presence detection.
- Voluntary ON/OFF activation by passing the hand in front of sensor ~10 cm.
Duty flush (~60 seconds every 24 hours after the last use).
Adjustable time flow from 30 to 60 seconds.
Flow rate 20 lpm.
Chrome-plated solid brass.
Wall plate flush to the wall.
Threaded rods can be cut-to-size.
Electronic shower valve suitable for people with reduced mobility.
30-year warranty.
TEMPOMATIC electronic valve for mixed water supply.
For walls ≤ 155mm.
Power supply by electronic unit with solenoid valve ½".
230/12V transformer.
2 operation modes:
- Automatic activation using presence detection.
- Voluntary ON/OFF activation by passing the hand in front of sensor ~10 cm.
Duty flush (~60 seconds every 24 hours after the last use).
Adjustable time flow from 30 to 60 seconds.
Flow rate 20 lpm.
Chrome-plated solid brass.
Wall plate flush to the wall.
Threaded rods can be cut-to-size.
Electronic shower valve suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES
230/12V
Total hygiene: no manual contact
Anti-bacterial duty flush
2 operation modes

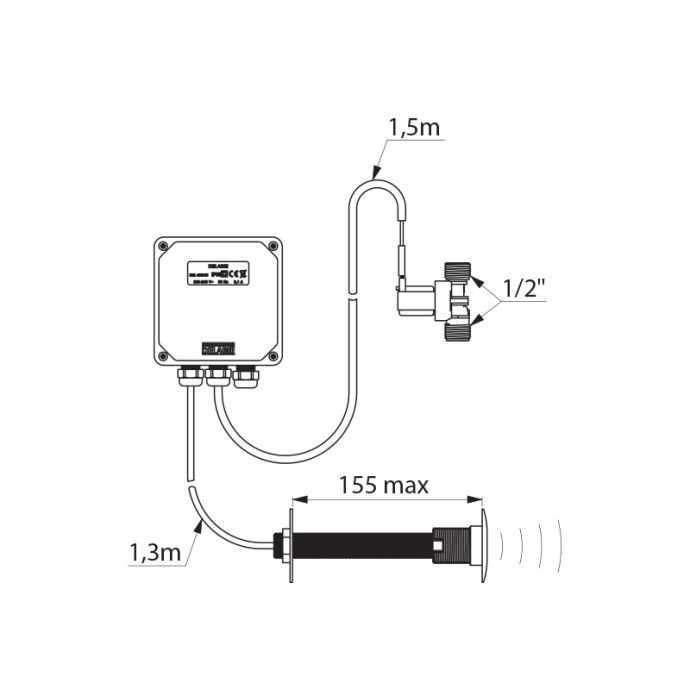

TECHNICAL CHARACTERISTICS
TEMPOMATIC electronic shower valve
Ref. 452150Supply | 230/12V mains supply |
Connector | ½" |
Technology | Electronic |
Length | 155mm |
Flow rate | 20 lpm |
Certificates | |
Warranty |
VARIANTS
452569 | Shower kit with valve and shower head - power supply 230/12V, M1/2" | ||
---|---|---|---|
452159 | Valve & shower head kit - mains supply 230/12V, M1/2", walls ≤ 155mm | ||
452565 | Shower valve only - power supply 230/12V, M1/2" |
VARIANTS
452569 | Shower kit with valve and shower head - power supply 230/12V, M1/2" | ||
---|---|---|---|
452159 | Valve & shower head kit - mains supply 230/12V, M1/2", walls ≤ 155mm | ||
452565 | Shower valve only - power supply 230/12V, M1/2" |
