DESCRIPTION

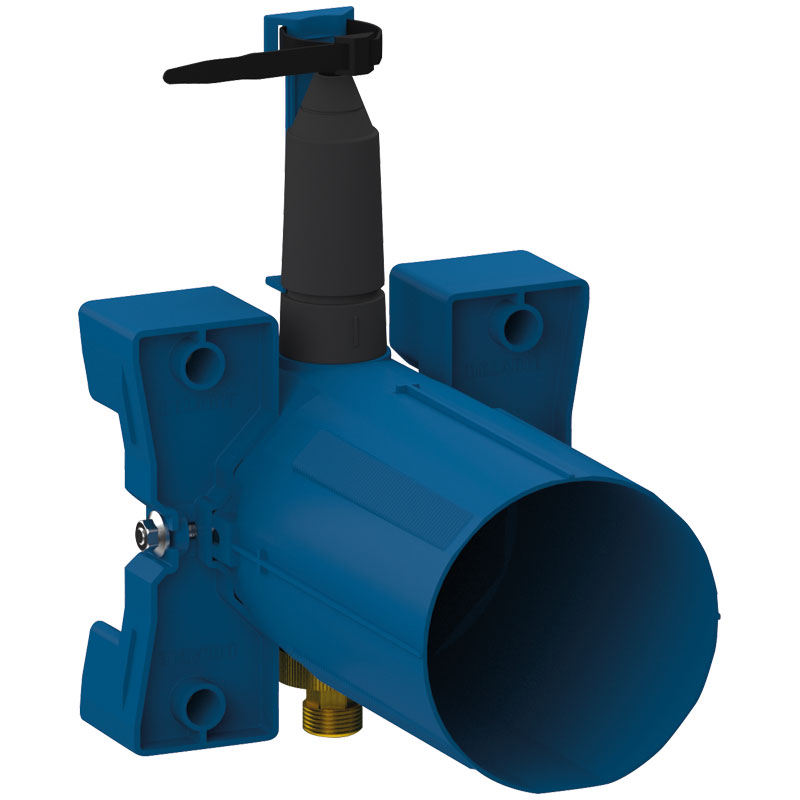

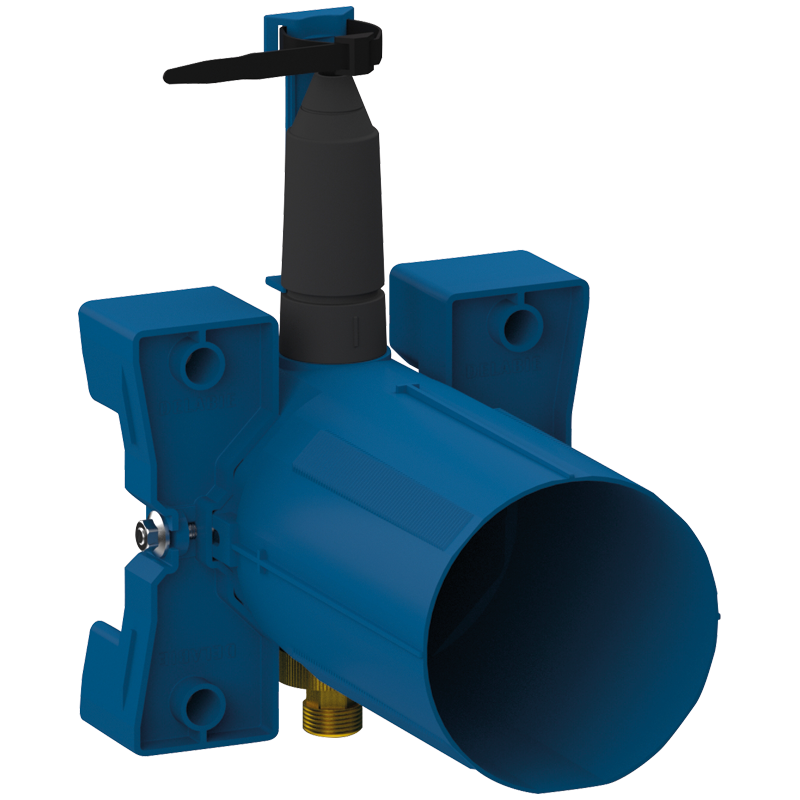

TEMPOMATIC 4 recessed housing for showers
Ref. 443PBOX
Product currently under development.
Waterproof recessed housing for TEMPOMATIC 4 for showers, kit 1/2:
Collar with waterproof seal.
Hydraulic connection from the outside and maintenance from the front.
Adjusts to all types of installations (rails, solid walls, panels).
Compatible with wall finishes 10 - 120mm (while maintaining the minimum recessing depth of 93mm).
Stopcocks and flow rate adjustment, filters, non-return valves and cartridge are all integrated and accessible from the front.
Supplied in 2 kits: secure system flush without sensitive elements.
30-year warranty.

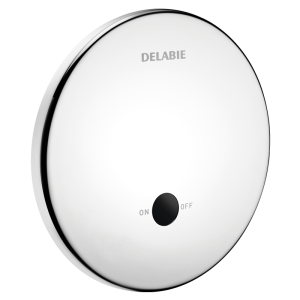

Order with control plate reference 443218.
Collar with waterproof seal.
Hydraulic connection from the outside and maintenance from the front.
Adjusts to all types of installations (rails, solid walls, panels).
Compatible with wall finishes 10 - 120mm (while maintaining the minimum recessing depth of 93mm).
Stopcocks and flow rate adjustment, filters, non-return valves and cartridge are all integrated and accessible from the front.
Supplied in 2 kits: secure system flush without sensitive elements.
30-year warranty.
Order with control plate reference 443218.
ADVANTAGES

Installation recessed in wall

Waterproof housing is adjustable and modular

System tested to over 500,000 operations

100% waterproof housing
TECHNICAL CHARACTERISTICS
TEMPOMATIC 4 recessed housing for showers

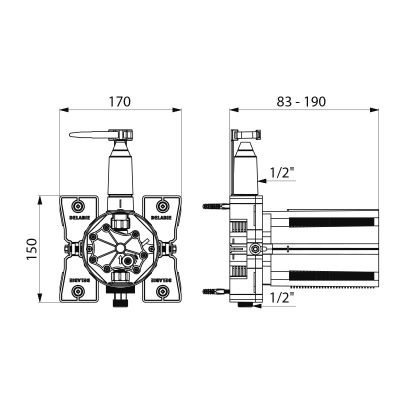

Ref. 443PBOXConnector | 1/2" |
Technology | Electronic |
Depth | 10 - 120mm |
Width | 170mm |
Certificates |
![]() |
Warranty | ![]() |
VARIANTS
443SBOX | For TEMPOMATIC 4 valve, mains supply 230/6V, kit 1/2 |
---|
VARIANTS
443SBOX | For TEMPOMATIC 4 valve, mains supply 230/6V, kit 1/2 |
---|
