DESCRIPTION

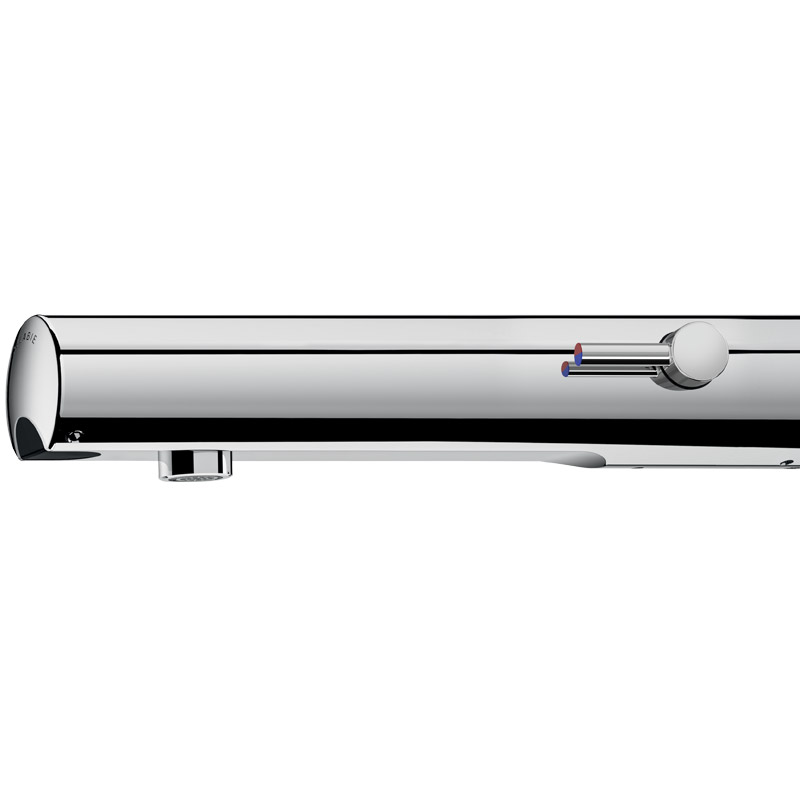

TEMPOMATIC MIX 4 electronic mixer
Ref. 493516Wall-mounted electronic basin mixer:
Battery-operated with integrated 123 6V Lithium batteries.
Reduced-stagnation solenoid valve and electronic unit integrated into the body of the mixer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Duty flush (~60 seconds every 24 hours after last use).
Presence detection sensor at the end of the spout optimises detection.
Chrome-plated stainless steel body L. 190mm.
Cap fixed in place by 2 concealed screws.
F3/8" stopcocks.

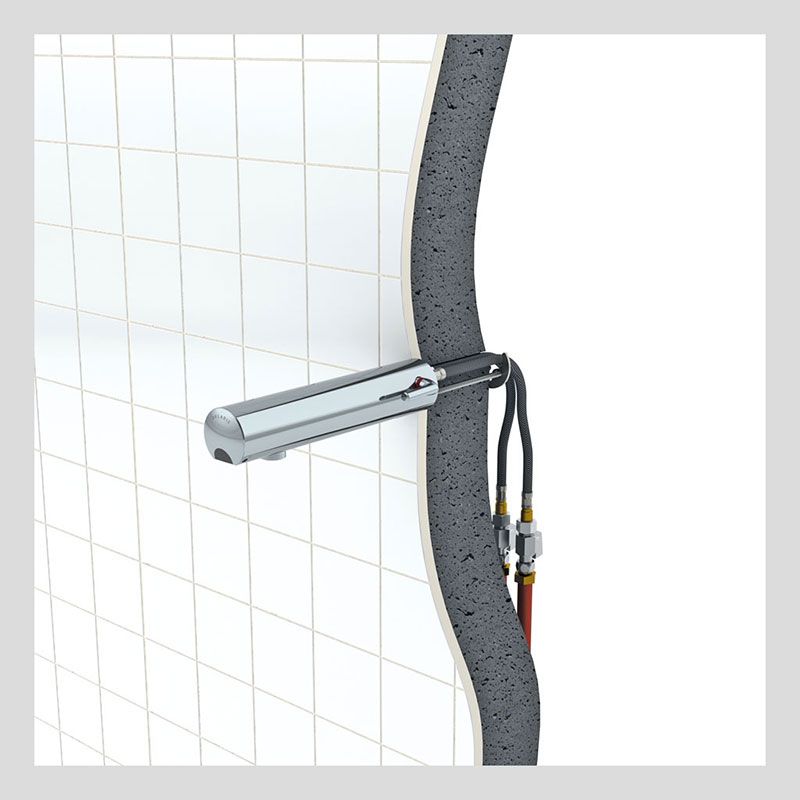

For cross wall installation.
Anti-blocking security.
Side temperature control with adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.
Battery-operated with integrated 123 6V Lithium batteries.
Reduced-stagnation solenoid valve and electronic unit integrated into the body of the mixer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Duty flush (~60 seconds every 24 hours after last use).
Presence detection sensor at the end of the spout optimises detection.
Chrome-plated stainless steel body L. 190mm.
Cap fixed in place by 2 concealed screws.
F3/8" stopcocks.
For cross wall installation.
Anti-blocking security.
Side temperature control with adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES

Exceptional water savings: 90%

Hygiene: no manual contact

Integrated electronics

Replace batteries without removing mixer
TECHNICAL CHARACTERISTICS
TEMPOMATIC MIX 4 electronic mixer
Ref. 493516Supply | 6V batteries |
Connector | F3/8" |
Technology | Electronic |

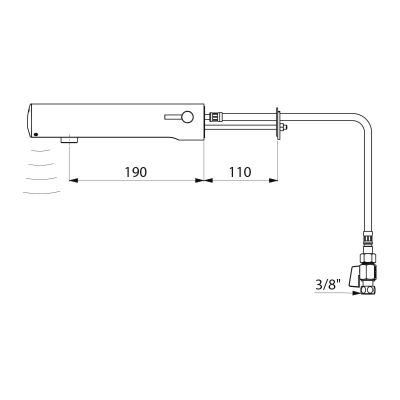

Spout length | 190mm |
Flow rate | 3 lpm |
Certificates |
![]() ![]() |
Warranty | ![]() |
Repairability | ![]() |
Spare parts
SPARE PARTS
TEMPOMATIC MIX 4 electronic mixer
Ref. 493516
1. | 490454 |
|
Electronic control unit |
2. | 479650 |
|
Solenoid valve |
3. | 922016.2P |
|
Flow straightener |
4. | 900010 |
|
Non-return valve |
5. | 60440.10P |
|
Filter with mesh screen |
6. | 825212 |
|
In-line STOP union |
VARIANTS
493510 | Mains supply, recessed unit - L.190mm - Wall-mounted, recessed inlets |
---|
VARIANTS
493510 | Mains supply, recessed unit - L.190mm - Wall-mounted, recessed inlets |
---|
