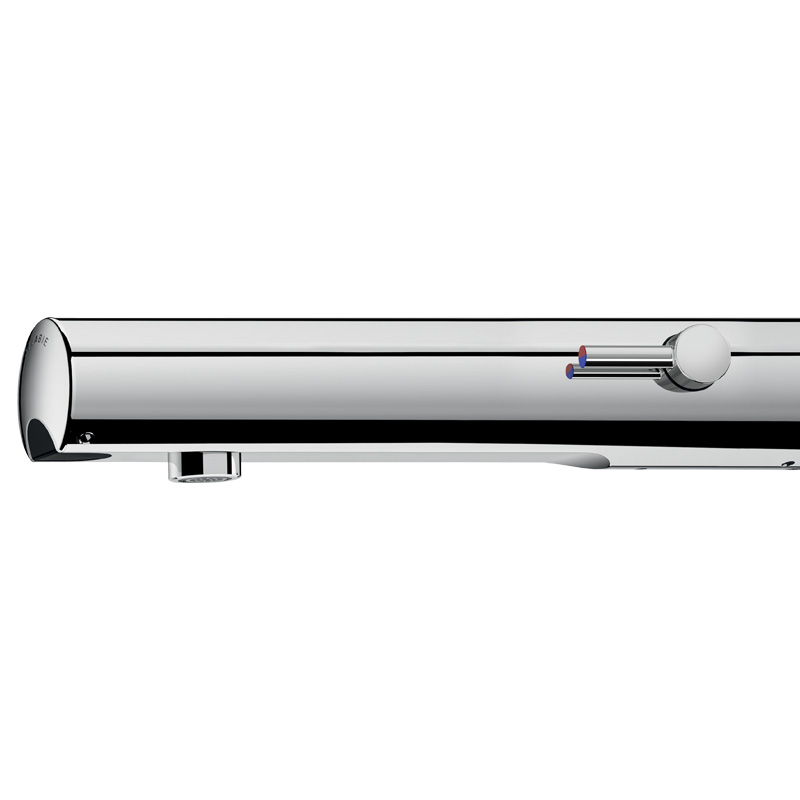

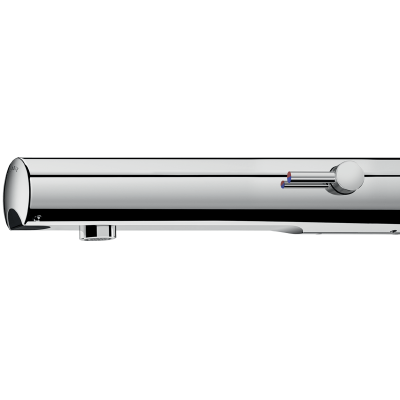

TEMPOMATIC MIX 4 electronic mixer
Ref. 493510
Recessed mains supply, stopcocks
Recessed mains supply, stopcocks
DESCRIPTION
TEMPOMATIC MIX 4 electronic mixer
Ref. 493510Wall-mounted electronic basin mixer:
230/6V recessed mains supply.
Reduced-stagnation solenoid valve and electronic unit integrated into the body of the mixer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Duty flush (~60 seconds every 24 hours after last use).
Active, infrared presence detection, sensor at the end of the spout optimises detection.

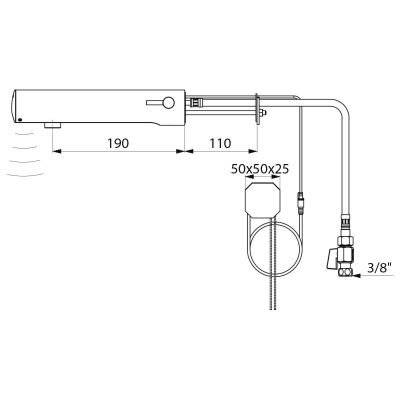

Chrome-plated stainless steel body L. 190mm.
Cap fixed in place by 2 concealed screws.
F3/8" stopcocks.

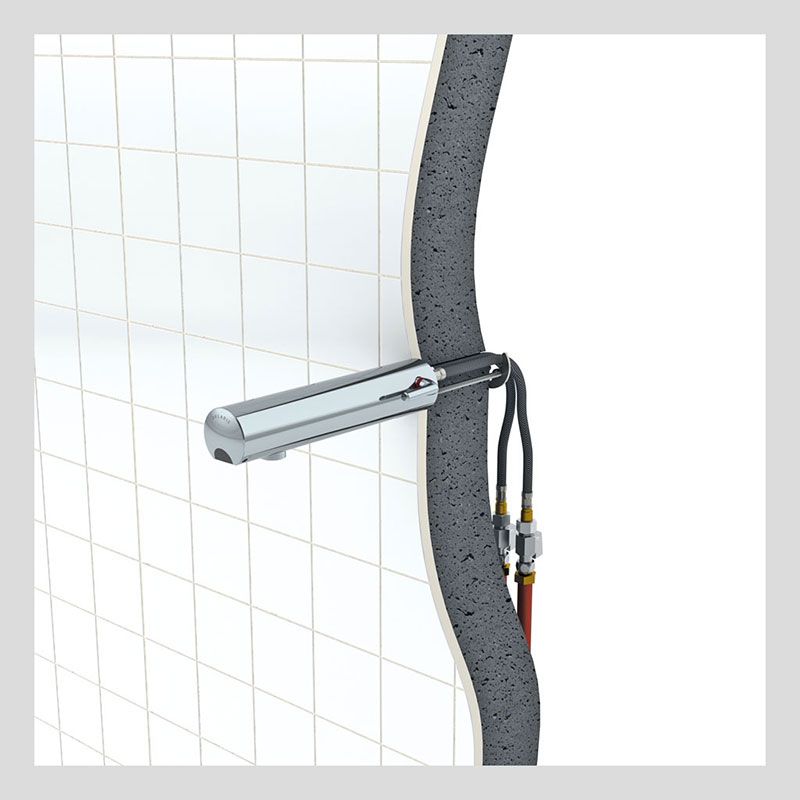

For wall-mounted cross wall installation.
Anti-blocking security.
Side temperature control with adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.
230/6V recessed mains supply.
Reduced-stagnation solenoid valve and electronic unit integrated into the body of the mixer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Duty flush (~60 seconds every 24 hours after last use).
Active, infrared presence detection, sensor at the end of the spout optimises detection.
Chrome-plated stainless steel body L. 190mm.
Cap fixed in place by 2 concealed screws.
F3/8" stopcocks.
For wall-mounted cross wall installation.
Anti-blocking security.
Side temperature control with adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES

Exceptional water savings: 90%

Hygiene: no manual contact

Integrated electronic unit

Anti-bacterial duty flush
TECHNICAL CHARACTERISTICS
TEMPOMATIC MIX 4 electronic mixer
Ref. 493510Supply | 230/6V mains (recessed) |
Connector | F3/8" |
Technology | Electronic |
Spout length | 190mm |
Flow rate | 3 lpm |
Certificates |
![]() ![]() ![]() |
Warranty | ![]() |
Repairability | ![]() |
Spare parts
SPARE PARTS
TEMPOMATIC MIX 4 electronic mixer
Ref. 493510
1. | 490452T |
|
Electronic control unit |
2. | 479650 |
|
Solenoid valve |
3. | 922016.2P |
|
Flow straightener |
4. | 490240 |
|
Power supply |
5. | 900010 |
|
Non-return valve |
6. | 60440.10P |
|
Filter with mesh screen |
7. | 825212 |
|
In-line STOP union |
VARIANTS
493516 | Batteries - L.190mm - Cross wall installation |
---|
VARIANTS
493516 | Batteries - L.190mm - Cross wall installation |
---|
