DESCRIPTION
TEMPOMATIC MIX 4 electronic mixer
Ref. 493506Wall-mounted electronic basin mixer:
Battery-operated with integrated 123 6V Lithium batteries.
Reduced-stagnation solenoid valve and electronic unit integrated into the body of the mixer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Duty flush (~60 seconds every 24 hours after last use).
Presence detection sensor at the end of the spout optimises detection.

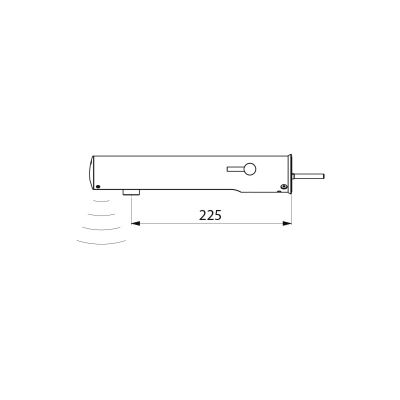

Chrome-plated stainless steel body L. 220mm.
Cap fixed in place by 2 concealed screws.
Stopcocks.
Wall-mounted.
Recessed inlets ½".
Top or bottom supply.
Anti-blocking security.
Side temperature control with adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.
Battery-operated with integrated 123 6V Lithium batteries.
Reduced-stagnation solenoid valve and electronic unit integrated into the body of the mixer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Duty flush (~60 seconds every 24 hours after last use).
Presence detection sensor at the end of the spout optimises detection.
Chrome-plated stainless steel body L. 220mm.
Cap fixed in place by 2 concealed screws.
Stopcocks.
Wall-mounted.
Recessed inlets ½".
Top or bottom supply.
Anti-blocking security.
Side temperature control with adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES
![Economie d'eau](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/9/5/9/2/2959-12-eng-US/economie-deau.png)
Exceptional water savings: 90%
![Sans contact manuel](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/9/9/0/3/3099-12-eng-US/sans-contact.png)
Hygiene: no manual contact
![Piles](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/3/4/0/3/3043-12-eng-US/pile.png)
Integrated electronics
![Maintenance aisée - Installation aisée](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/5/1/0/3/3015-17-eng-US/maintenance.png)
Replace batteries without removing mixer
TECHNICAL CHARACTERISTICS
TEMPOMATIC MIX 4 electronic mixer
Ref. 493506Supply | 6V batteries |
Connector | 1/2" |
Technology | Electronic |
Spout length | 220mm |
Flow rate | 3 lpm |
Certificates |
![]() ![]() ![]() |
Warranty | ![]() |
Repairability | ![]() |
Spare parts
SPARE PARTS
TEMPOMATIC MIX 4 electronic mixer
Ref. 493506![](https://www.delabie.com/var/site/storage/images/3/0/6/9/3239603-1-fre-FR/PD_493506.jpg)
1. | 490454 |
|
Electronic control unit |
2. | 479650 |
|
Solenoid valve |
3. | 922016.2P |
|
Flow straightener |
VARIANTS
493400 | Mains supply, recessed unit - L.160mm - Wall-mounted, recessed inlets | ||
---|---|---|---|
493406 | Batteries - L.160mm - Wall-mounted, recessed inlets | ||
493500 | Mains supply, recessed unit - L.220mm - Wall-mounted, recessed inlets | ||
493510 | Mains supply, recessed unit - L.190mm - Wall-mounted, recessed inlets | ||
493516 | Batteries - L.190mm - Cross wall installation |
VARIANTS
493400 | Mains supply, recessed unit - L.160mm - Wall-mounted, recessed inlets | ||
---|---|---|---|
493406 | Batteries - L.160mm - Wall-mounted, recessed inlets | ||
493500 | Mains supply, recessed unit - L.220mm - Wall-mounted, recessed inlets | ||
493510 | Mains supply, recessed unit - L.190mm - Wall-mounted, recessed inlets | ||
493516 | Batteries - L.190mm - Cross wall installation |
