DESCRIPTION

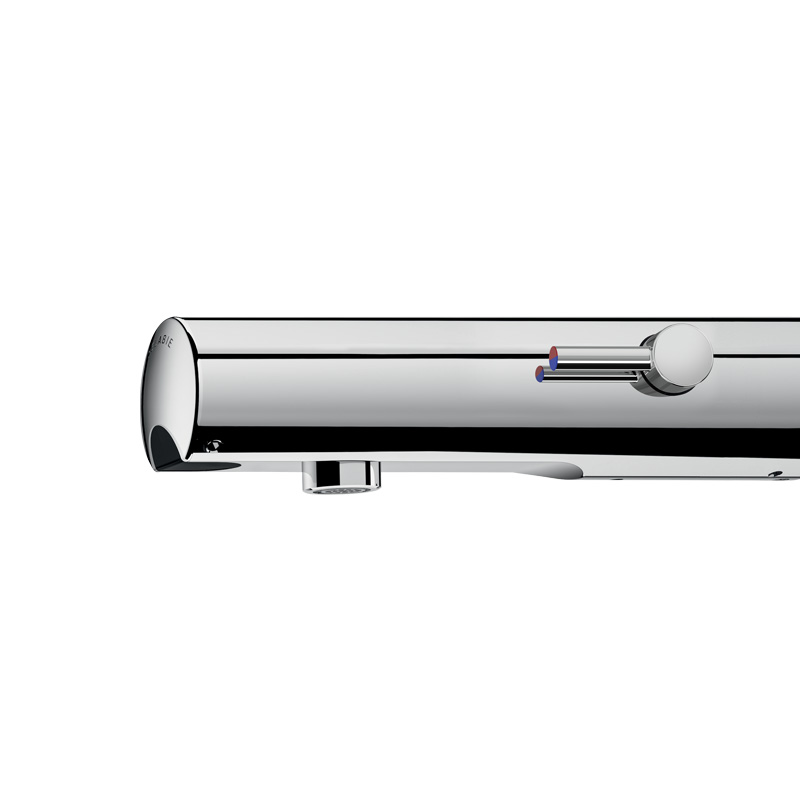

TEMPOMATIC MIX 4 electronic mixer
Ref. 493406Wall-mounted electronic basin mixer, kit 2/2:
Battery-operated with integrated 123 6V Lithium batteries.
Reduced-stagnation solenoid valve and electronic unit integrated into the body of the mixer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Duty flush (~60 seconds every 24 hours after last use).
Presence detection sensor at the end of the spout optimises detection.

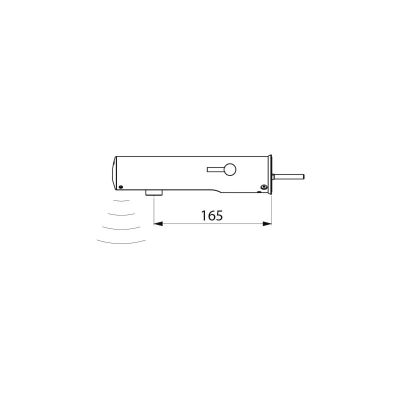

Chrome-plated stainless steel body L. 160mm.
Cap fixed in place by 2 concealed screws.
Stopcocks.
Wall-mounted.

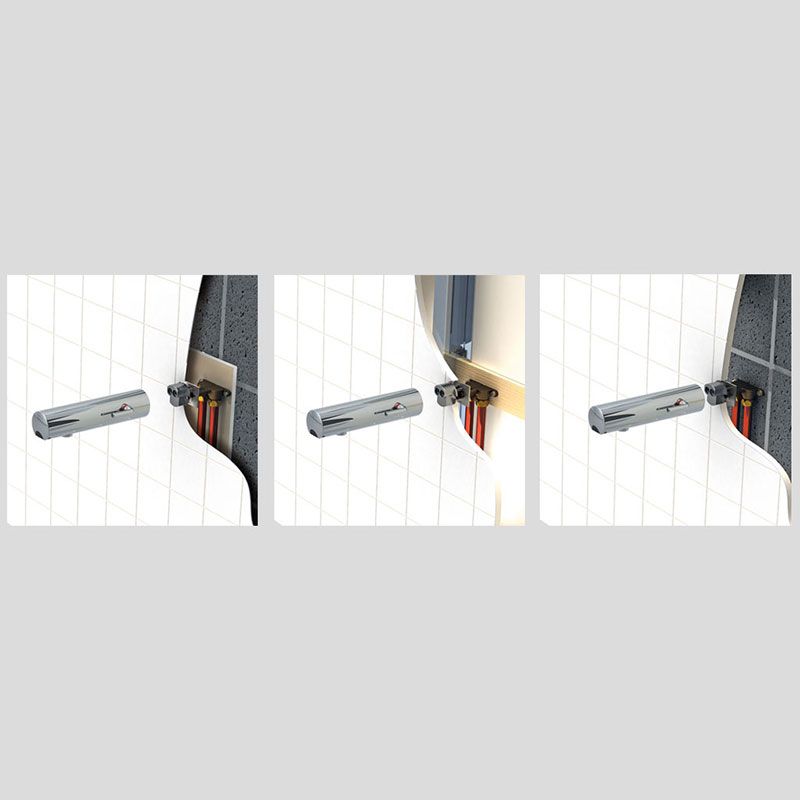

Recessed inlets ½".
Top or bottom supply.
Anti-blocking security.
Side temperature control with adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.
Order with nanny joint for recessed inlet, reference: 484612
Battery-operated with integrated 123 6V Lithium batteries.
Reduced-stagnation solenoid valve and electronic unit integrated into the body of the mixer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Duty flush (~60 seconds every 24 hours after last use).
Presence detection sensor at the end of the spout optimises detection.
Chrome-plated stainless steel body L. 160mm.
Cap fixed in place by 2 concealed screws.
Stopcocks.
Wall-mounted.
Recessed inlets ½".
Top or bottom supply.
Anti-blocking security.
Side temperature control with adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.
Order with nanny joint for recessed inlet, reference: 484612
ADVANTAGES
Exceptional water savings: 90%
Hygiene: no manual contact
Integrated electronics
Replace batteries without removing mixer
TECHNICAL CHARACTERISTICS
TEMPOMATIC MIX 4 electronic mixer
Ref. 493406Supply | 6V batteries |
Connector | 1/2" |
Technology | Electronic |
Spout length | 160mm |
Flow rate | 3 lpm |
Certificates | |
Warranty | |
Repairability |
Spare parts
SPARE PARTS
TEMPOMATIC MIX 4 electronic mixer
Ref. 4934061. | 490454 |
|
Electronic control unit |
2. | 479650 |
|
Solenoid valve |
3. | 922016.2P |
|
Flow straightener |
VARIANTS
493400 | Mains supply, recessed unit - L.160mm - Wall-mounted, recessed inlets - Kit 2/2 | ||
---|---|---|---|
493500 | Mains supply, recessed unit - L.220mm - Wall-mounted, recessed inlets - Kit 2/2 | ||
493506 | Batteries - L.220mm - Wall-mounted, recessed inlets - Kit 2/2 |
VARIANTS
493400 | Mains supply, recessed unit - L.160mm - Wall-mounted, recessed inlets - Kit 2/2 | ||
---|---|---|---|
493500 | Mains supply, recessed unit - L.220mm - Wall-mounted, recessed inlets - Kit 2/2 | ||
493506 | Batteries - L.220mm - Wall-mounted, recessed inlets - Kit 2/2 |
