DESCRIPTION

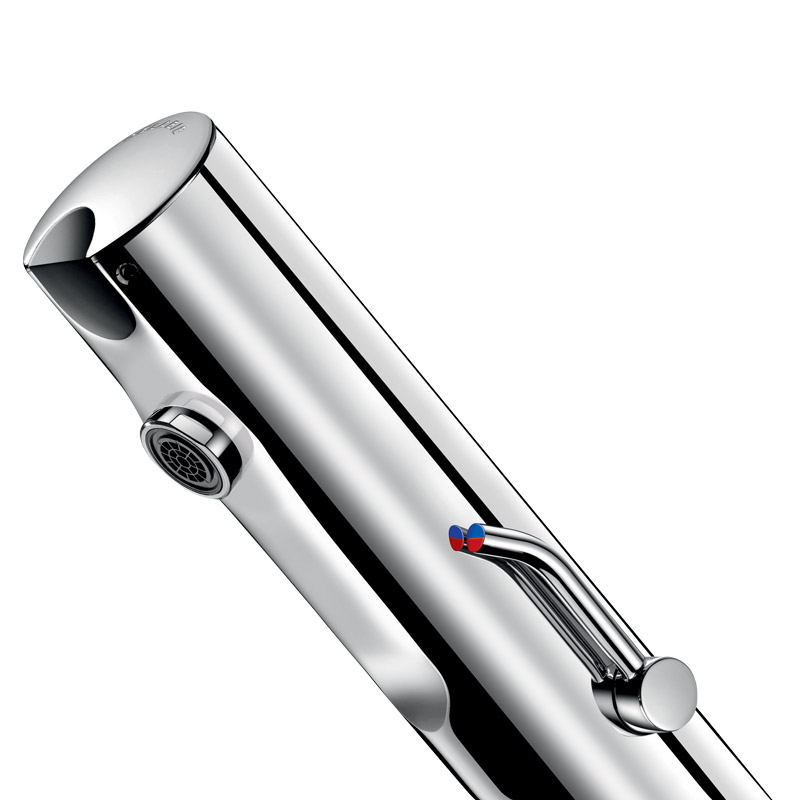

TEMPOMATIC MIX 4 electronic mixer
Ref. 490106LHDeck-mounted electronic basin mixer:
Battery-operated with integrated 123 6V Lithium batteries.
Reduced-stagnation solenoid valve and electronic unit integrated into the body of the mixer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Duty flush (~60 seconds every 24 hours after last use).
Sensor at the end of the spout optimises presence detection.
Chrome-plated stainless steel body.
Cap fixed in place by 2 concealed screws.
PEX flexibles with filters and non-return valves .
Fixing reinforced by two stainless steel rods.
Anti-blocking security.
Side temperature control with long lever and adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.
Battery-operated with integrated 123 6V Lithium batteries.
Reduced-stagnation solenoid valve and electronic unit integrated into the body of the mixer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Duty flush (~60 seconds every 24 hours after last use).
Sensor at the end of the spout optimises presence detection.
Chrome-plated stainless steel body.
Cap fixed in place by 2 concealed screws.
PEX flexibles with filters and non-return valves .
Fixing reinforced by two stainless steel rods.
Anti-blocking security.
Side temperature control with long lever and adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES
![Economie d'eau](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/9/5/9/2/2959-12-eng-US/economie-deau.png)
Exceptional water savings: 90%
![Sans contact manuel](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/9/9/0/3/3099-12-eng-US/sans-contact.png)
Hygiene: no manual contact
![Piles](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/3/4/0/3/3043-12-eng-US/pile.png)
Batteries integrated into the body of the mixer
![Maintenance aisée - Installation aisée](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/5/1/0/3/3015-17-eng-US/maintenance.png)
Integrated solenoid valve

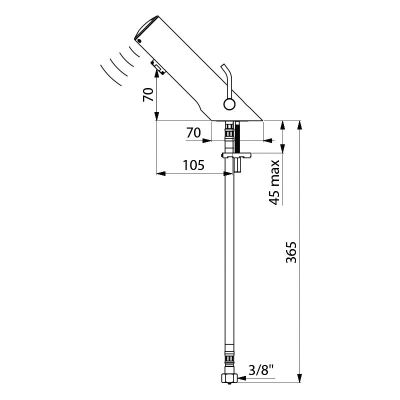

TECHNICAL CHARACTERISTICS
TEMPOMATIC MIX 4 electronic mixer
Ref. 490106LHSupply | 6V batteries |
Connector | F3/8" |
Technology | Electronic |
Drop height | 70mm |
Spout length | 105mm |
Flow rate | 3 lpm |
Certificates |
![]() ![]() ![]() |
Warranty | ![]() |
Repairability | ![]() |

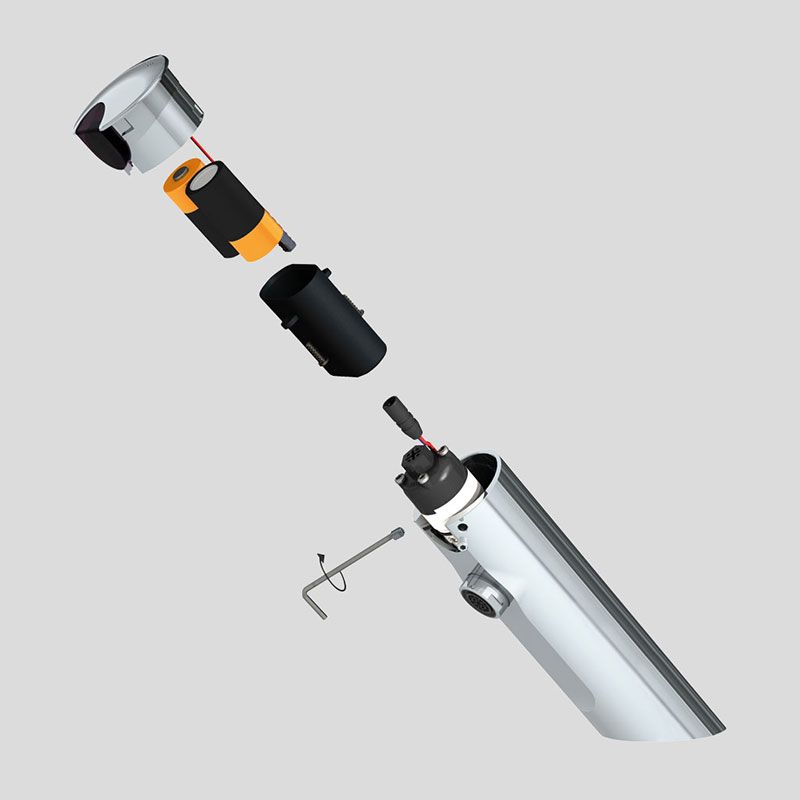

Spare parts
SPARE PARTS
TEMPOMATIC MIX 4 electronic mixer
Ref. 490106LH![](https://www.delabie.com/var/site/storage/images/9/8/0/0/3240089-1-fre-FR/PD_490106LH.jpg)
1. | 490446 |
|
Electronic control unit |
2. | 479650 |
|
Solenoid valve |
3. | 921024.2P |
|
Star-shaped flow straightener |
4. | 900010 |
|
Non-return valve |
5. | 60440.10P |
|
Filter with mesh screen |
VARIANTS
490000LH | Mains supply, recessed unit - long lever - With stopcocks | ||
---|---|---|---|
490006LH | Battery operated - long lever - With stopcocks | ||
490100LH | Mains supply, recessed unit - long lever -Without stopcocks |
