DESCRIPTION

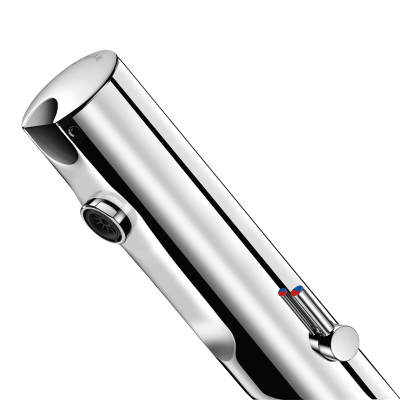

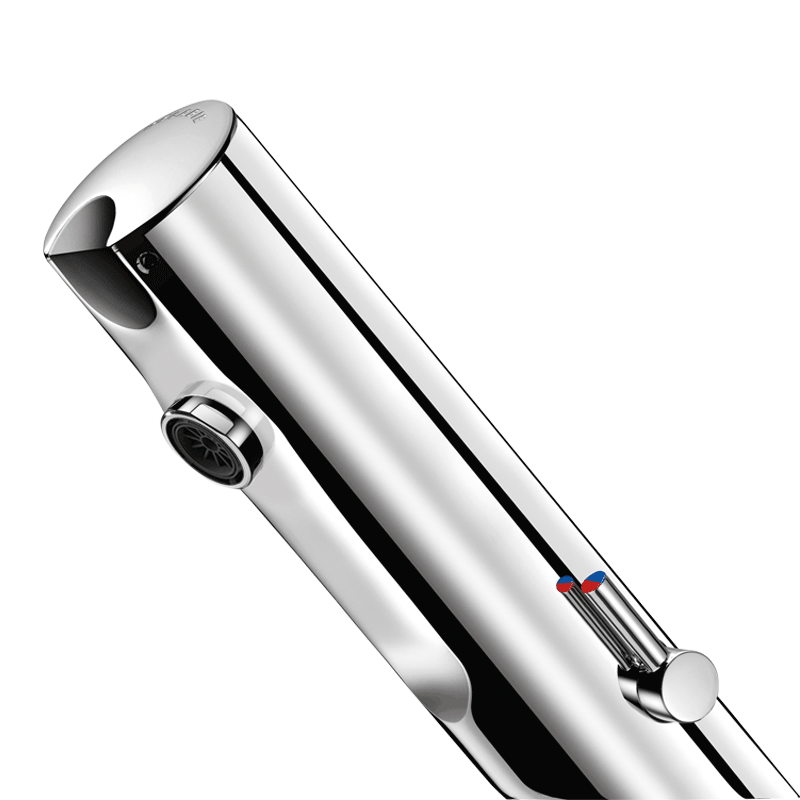

TEMPOMATIC MIX 4 electronic mixer
Ref. 490106Deck-mounted electronic basin mixer:
Battery-operated with integrated 123 6V Lithium batteries.
Reduced-stagnation solenoid valve and electronic unit integrated into the body of the mixer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Duty flush (~60 seconds every 24 hours after last use).
Presence detection, sensor at the end of the spout optimises detection.
Chrome-plated stainless steel body.
Cap fixed in place by 2 concealed screws.
PEX flexibles F3/8" with filters and non-return valves .
Fixing reinforced by two stainless steel rods.
Anti-blocking security.
Side temperature control lever and adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.
Battery-operated with integrated 123 6V Lithium batteries.
Reduced-stagnation solenoid valve and electronic unit integrated into the body of the mixer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Duty flush (~60 seconds every 24 hours after last use).
Presence detection, sensor at the end of the spout optimises detection.
Chrome-plated stainless steel body.
Cap fixed in place by 2 concealed screws.
PEX flexibles F3/8" with filters and non-return valves .
Fixing reinforced by two stainless steel rods.
Anti-blocking security.
Side temperature control lever and adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES

Exceptional water savings: 90%

Hygiene: no manual contact

Batteries integrated into the body of the tap

Integrated solenoid valve
TECHNICAL CHARACTERISTICS
TEMPOMATIC MIX 4 electronic mixer
Ref. 490106Supply | 6V batteries |
Connector | F3/8" |
Technology | Electronic |

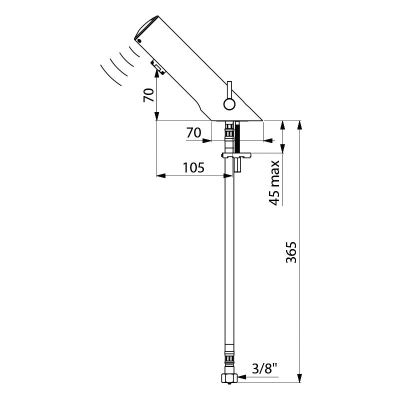

Drop height | 70mm |
Spout length | 105mm |
Flow rate | 3 lpm |
Certificates |
![]() ![]() ![]() ![]() ![]() ![]() |
Warranty | ![]() |
Repairability | ![]() |
Spare parts

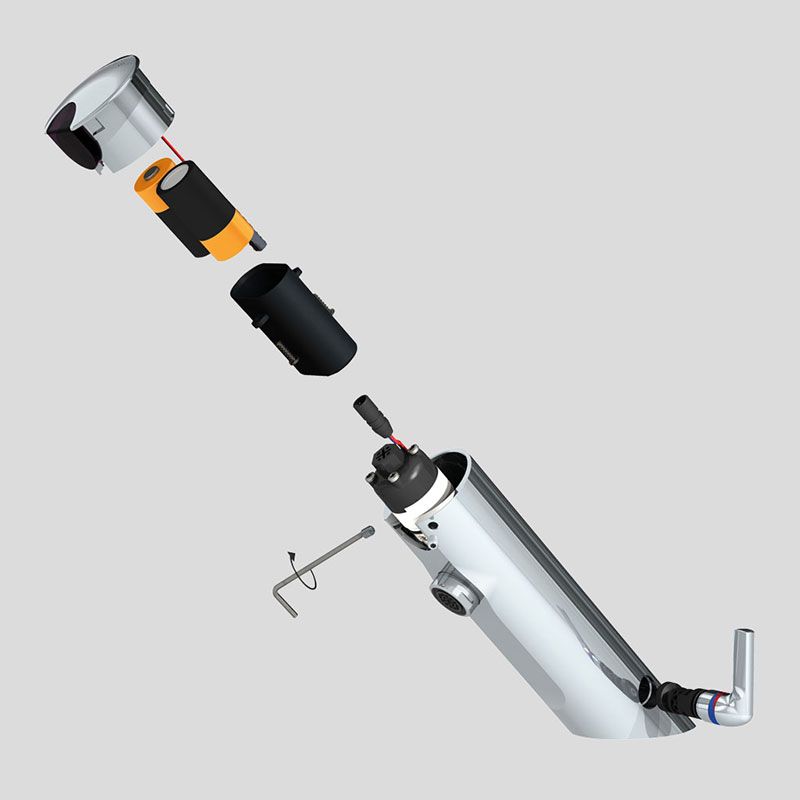

SPARE PARTS
TEMPOMATIC MIX 4 electronic mixer
Ref. 490106
1. | 490454 |
|
Electronic control unit |
2. | 479650 |
|
Solenoid valve |
3. | 922016.2P |
|
Flow straightener |
4. | 742MSP |
|
Mixing key |
5. | 900010 |
|
Non-return valve |
6. | 60440.10P |
|
Filter with mesh screen |
VARIANTS
490000 | Mains supply, recessed unit - standard lever - Stopcocks | ||
---|---|---|---|
49000015 | Mains supply, recessed unit - standard lever Stopcocks - Ø15mm | ||
490100 | Mains supply, recessed unit - standard lever - Without stopcocks | ||
490001 | Mains supply, plug - standard lever - With stopcocks | ||
49000115 | Mains supply, UK plug - standard lever - With stopcocks- Ø15mm | ||
490101 | Mains supply, plug - standard lever - Without stopcocks | ||
490006 | Battery operated - standard lever - With stopcocks | ||
49000615 | Battery operated - standard lever - With stopcocks - Ø15mm | ||
49000615CO | Battery operated - standard lever - Stopcocks - copper tails |
