DESCRIPTION

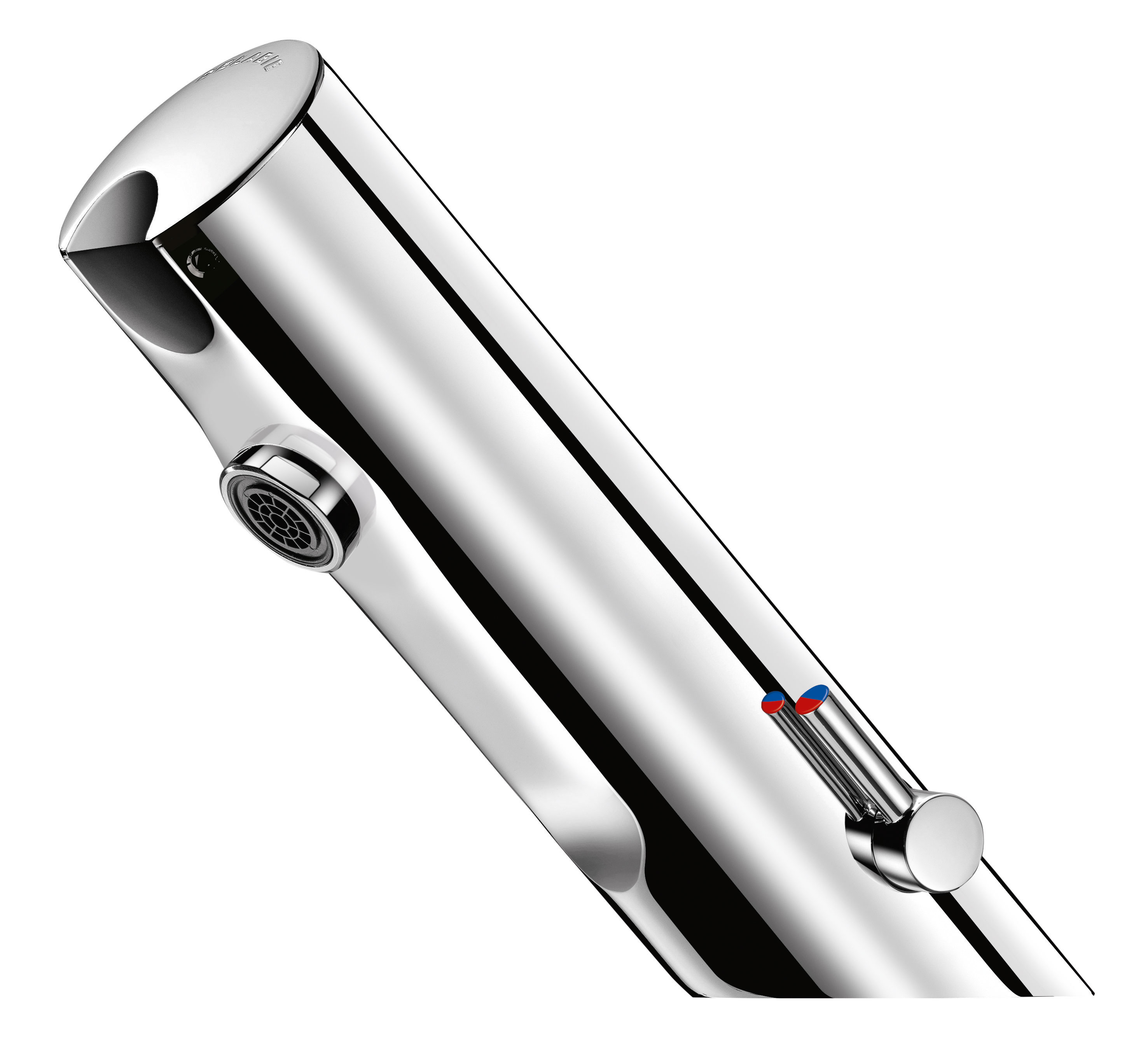

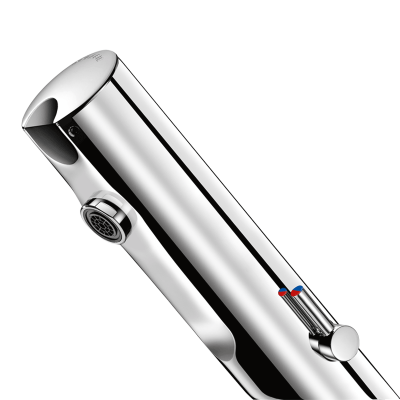

TEMPOMATIC MIX 4 electronic mixer
Ref. 49000615Deck-mounted electronic basin mixer:
Battery-operated with integrated 123 6V Lithium batteries.
Reduced stagnation solenoid valve and electronic unit integrated into the body of the mixer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Duty flush (~60 seconds every 24 hours after last use).
Presence detection sensor at the end of the spout optimises detection.
Chrome-plated stainless steel body.
Cap fixed in place by two concealed screws.
PEX flexibles Ø 15mm for compression fittings with stopcocks, filters and non-return valves.
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Side temperature control with adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.
Battery-operated with integrated 123 6V Lithium batteries.
Reduced stagnation solenoid valve and electronic unit integrated into the body of the mixer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Duty flush (~60 seconds every 24 hours after last use).
Presence detection sensor at the end of the spout optimises detection.
Chrome-plated stainless steel body.
Cap fixed in place by two concealed screws.
PEX flexibles Ø 15mm for compression fittings with stopcocks, filters and non-return valves.
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Side temperature control with adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES
Exceptional water savings: 90%
Hygiene: no manual contact
Batteries integrated in mixer body
Integrated solenoid valve

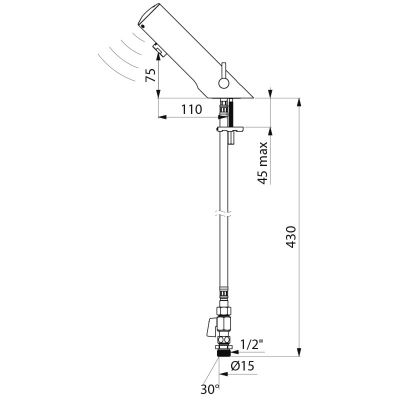

TECHNICAL CHARACTERISTICS
TEMPOMATIC MIX 4 electronic mixer
Ref. 49000615Supply | 6V batteries |
Connector | M½" Ø 15mm |
Technology | Electronic |
Drop height | 70mm |
Spout length | 105mm |
Flow rate | 3 lpm |
Certificates | |
Warranty | |
Repairability |
Spare parts
SPARE PARTS
TEMPOMATIC MIX 4 electronic mixer
Ref. 490006151. | 490454 |
|
Electronic control unit |
2. | 479650 |
|
Solenoid valve |
3. | 922024.2P |
|
ECO flow straightener |
4. | 742MSP |
|
Mixing key |
5. | 900010 |
|
Non-return valve |
6. | 60440.10P |
|
Filter with mesh screen |
7. | 825212 |
|
In-line STOP union |
VARIANTS
490000 | Mains supply, recessed unit - standard lever - Stopcocks | ||
---|---|---|---|
49000015 | Mains supply, recessed unit - standard lever Stopcocks - Ø15mm | ||
490100 | Mains supply, recessed unit - standard lever - Without stopcocks | ||
490001 | Mains supply, plug - standard lever - With stopcocks | ||
49000115 | Mains supply, UK plug - standard lever - With stopcocks- Ø15mm | ||
490101 | Mains supply, plug - standard lever - Without stopcocks | ||
490006 | Battery operated - standard lever - With stopcocks | ||
490106 | Battery operated - standard lever - Without stopcocks | ||
49000615CO | Battery operated - standard lever - Stopcocks - copper tails |
VARIANTS
490000 | Mains supply, recessed unit - standard lever - Stopcocks | ||
---|---|---|---|
49000015 | Mains supply, recessed unit - standard lever Stopcocks - Ø15mm | ||
490100 | Mains supply, recessed unit - standard lever - Without stopcocks | ||
490001 | Mains supply, plug - standard lever - With stopcocks | ||
49000115 | Mains supply, UK plug - standard lever - With stopcocks- Ø15mm | ||
490101 | Mains supply, plug - standard lever - Without stopcocks | ||
490006 | Battery operated - standard lever - With stopcocks | ||
490106 | Battery operated - standard lever - Without stopcocks | ||
49000615CO | Battery operated - standard lever - Stopcocks - copper tails |
