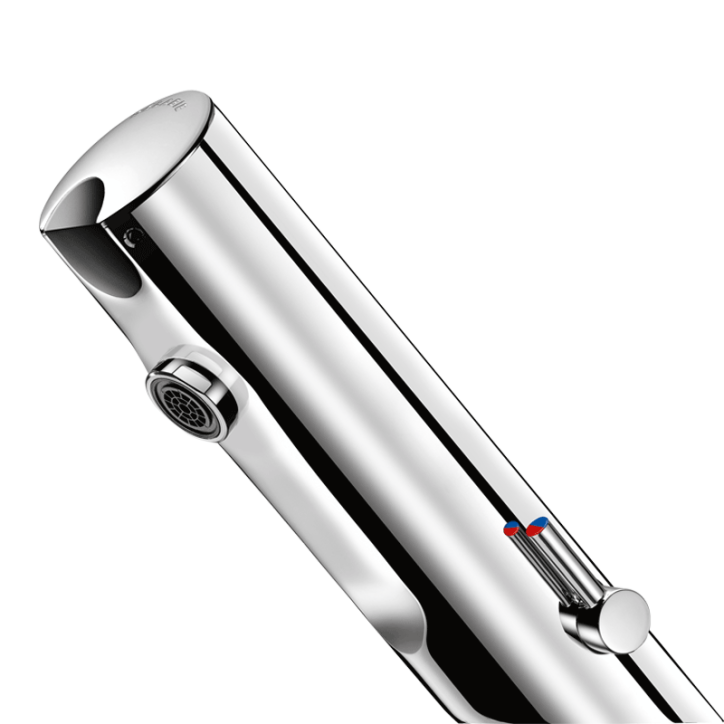

TEMPOMATIC MIX 4 electronic mixer

Ref. 490001
Plug-in mains supply, stopcocks
TEMPOMATIC MIX 4 electronic mixer

Presentation

DESCRIPTION

TEMPOMATIC MIX 4 electronic mixer

Ref. 490001
Deck-mounted electronic basin mixer:
230/6V plug-in mains supply.
Reduced-stagnation solenoid valve and electronic unit integrated into the body of the mixer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Duty flush (~60 seconds every 24 hours after the last use).
Presence detection sensor at the end of the spout optimises detection.
Chrome-plated stainless steel body.
Cap fixed in place by 2 concealed screws.
PEX flexibles F3/8" with stopcocks, filters and non-return valves.
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Side temperature control lever with adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.

ADVANTAGES

Economie d'eau

Exceptional water savings: 90%

Sans contact manuel

Hygiene: no manual contact

Secteur

Plug-in mains supply

Maintenance aisée - Installation aisée

Integrated solenoid valve

Characteristics

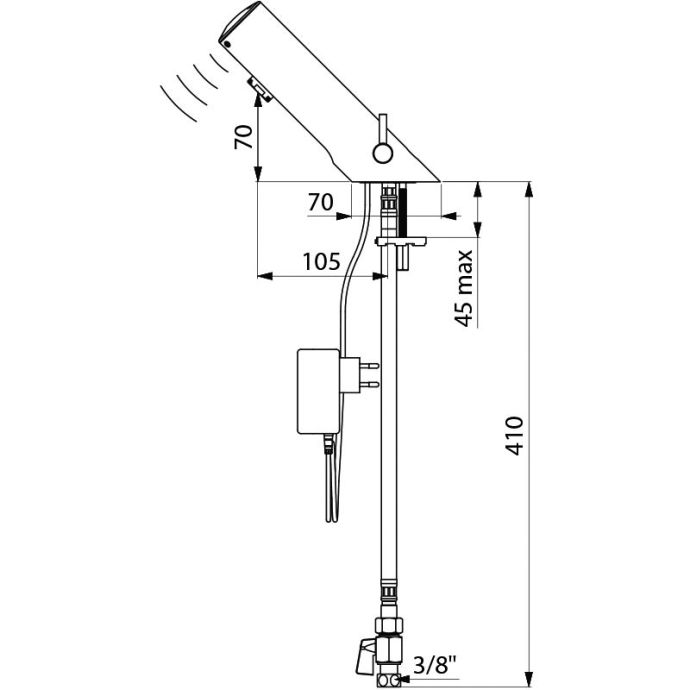

TECHNICAL CHARACTERISTICS

TEMPOMATIC MIX 4 electronic mixer

Ref. 490001
Supply 230/6V plug-in mains supply
Connector F3/8"
Technology Electronic
Drop height 70mm
Spout length 105mm
Flow rate 3 lpm
Certificates Logo CE ACS Logo PZH
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

Mitigeur de lavabo automatique TEMPOMATIC MIX 4

Ref. 490001

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

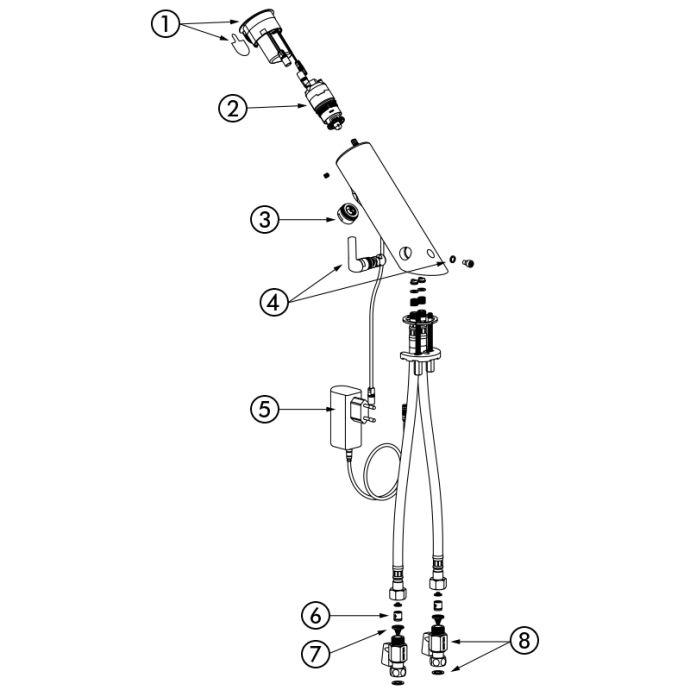

SPARE PARTS

TEMPOMATIC MIX 4 electronic mixer

Ref. 490001
1. 490452T
Electronic control unit
2. 479650
Solenoid valve
3. 922016.2P
Flow straightener
4. 742MSP
Mixing key
5. 490241
Electrical plug
6. 900010
Non-return valve
7. 60440.10P
Filter with mesh screen
8. 825212
In-line STOP union

VARIANTS

490000 Mains supply, recessed unit - standard lever - Stopcocks
49000015 Mains supply, recessed unit - standard lever Stopcocks - Ø15mm
490100 Mains supply, recessed unit - standard lever - Without stopcocks
49000115 Mains supply, UK plug - standard lever - With stopcocks- Ø15mm
490101 Mains supply, plug - standard lever - Without stopcocks
490006 Battery operated - standard lever - With stopcocks
49000615 Battery operated - standard lever - With stopcocks - Ø15mm
490106 Battery operated - standard lever - Without stopcocks
49000615CO Battery operated - standard lever - Stopcocks - copper tails
