DESCRIPTION

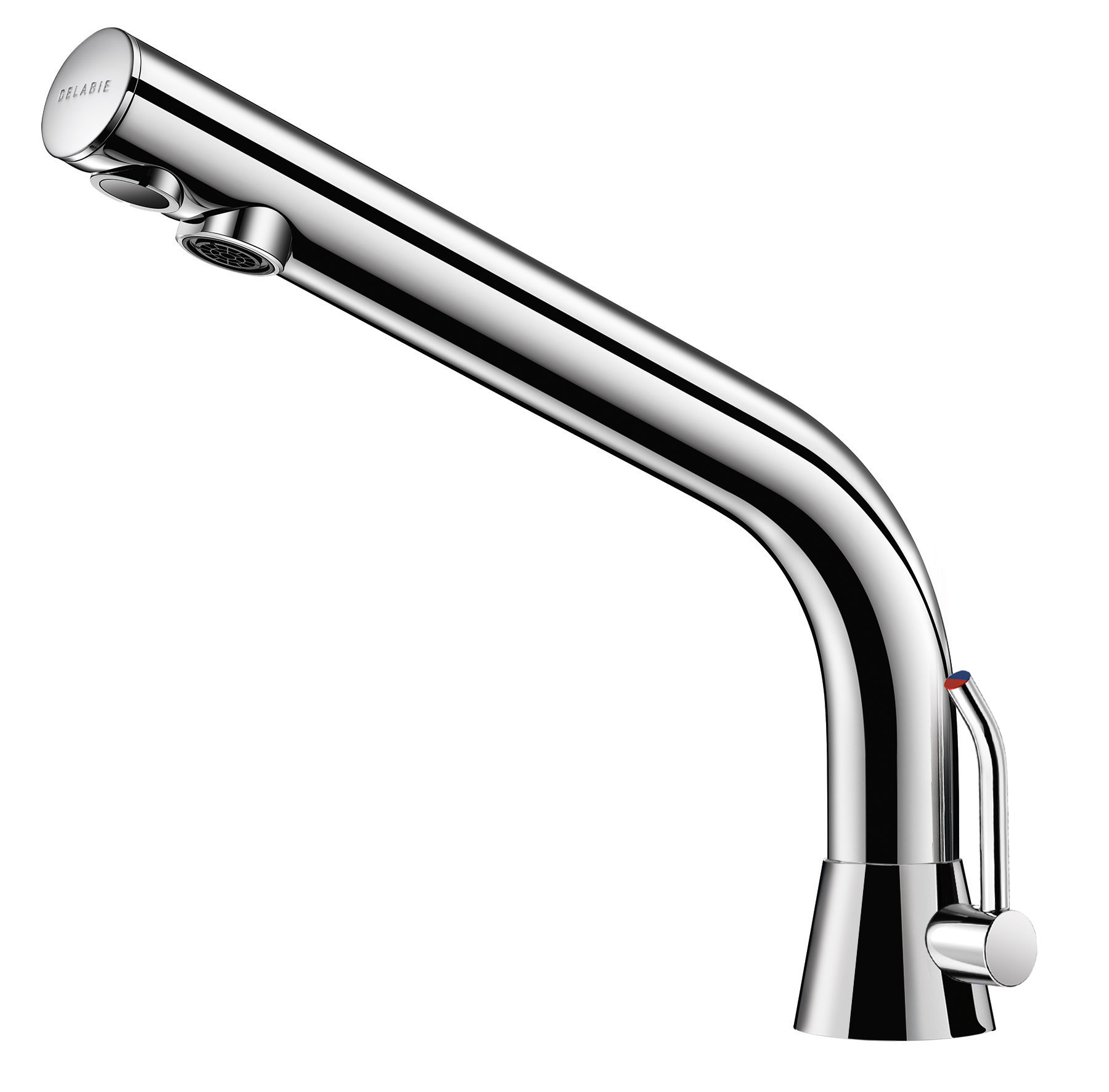

BINOPTIC MIX electronic mixer
Ref. 488MCHLH15Deck-mounted electronic basin mixer:
Independent IP65 electronic control unit.
123 6V Lithium batteries.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush 60 seconds every 24 hours after last use).
Active, infrared presence detection, sensor at the end of the spout optimises detection.
Chrome-plated brass body.
PEX flexibles with filters and solenoid valve Ø 15mm compression fittings.
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Spout with smooth interior and low water volume (reduces bacterial development).
Side temperature control with long lever and adjustable maximum temperature limiter.
Drop height: 170mm for semi-recessed washbasins.
Suitable for people with reduced mobility.
30-year warranty.
Independent IP65 electronic control unit.
123 6V Lithium batteries.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush 60 seconds every 24 hours after last use).
Active, infrared presence detection, sensor at the end of the spout optimises detection.
Chrome-plated brass body.
PEX flexibles with filters and solenoid valve Ø 15mm compression fittings.
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Spout with smooth interior and low water volume (reduces bacterial development).
Side temperature control with long lever and adjustable maximum temperature limiter.
Drop height: 170mm for semi-recessed washbasins.
Suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES
Exceptional water savings: 90%
Hygiene: no manual contact
Anti-bacterial duty flush
LED diagnostic aid

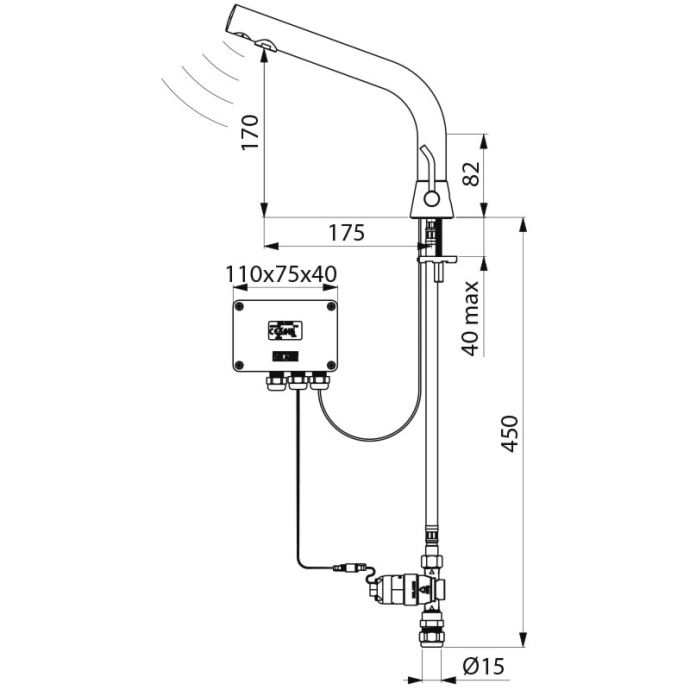

TECHNICAL CHARACTERISTICS
BINOPTIC MIX electronic mixer
Ref. 488MCHLH15Supply | 6V batteries |
Connector | M1/2'' Ø 15 |
Technology | Electronic |
Drop height | 170mm |
Spout length | 175mm |
Flow rate | 3 lpm |
Certificates | |
Warranty |
VARIANTS
388MCHLH | Mains supply - Spout H. 170mm - long lever - M3/8" | ||
---|---|---|---|
388MCHLH15 | Mains supply - Spout H. 170mm- long lever -Ø15mm compression fittings | ||
398MCHLH | Mains supply - Spout H. 250mm - long lever - M3/8" | ||
398MCHLH15 | Mains supply - Spout H. 250mm- long lever - Ø15mm compression fittings | ||
488MCHLH | Battery operated - Spout H. 170mm - long lever - M3/8" | ||
498MCHLH | Battery operated - Spout H. 250mm - long lever - M3/8" | ||
498MCHLH15 | Battery op. - Spout H.250mm - long lever - Ø15mm compression fittings |
VARIANTS
388MCHLH | Mains supply - Spout H. 170mm - long lever - M3/8" | ||
---|---|---|---|
388MCHLH15 | Mains supply - Spout H. 170mm- long lever -Ø15mm compression fittings | ||
398MCHLH | Mains supply - Spout H. 250mm - long lever - M3/8" | ||
398MCHLH15 | Mains supply - Spout H. 250mm- long lever - Ø15mm compression fittings | ||
488MCHLH | Battery operated - Spout H. 170mm - long lever - M3/8" | ||
498MCHLH | Battery operated - Spout H. 250mm - long lever - M3/8" | ||
498MCHLH15 | Battery op. - Spout H.250mm - long lever - Ø15mm compression fittings |
