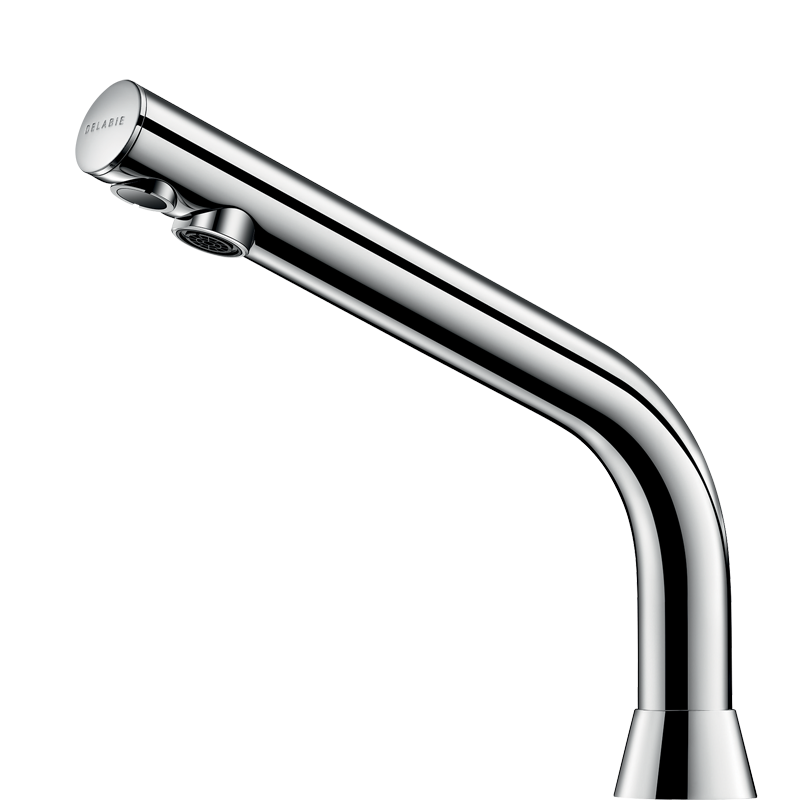

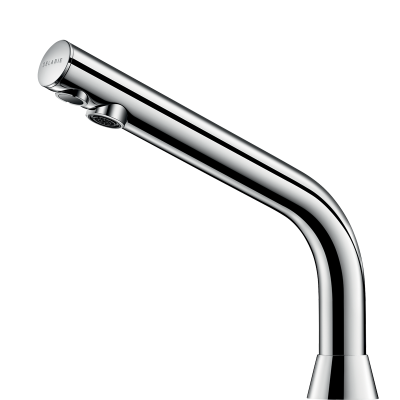

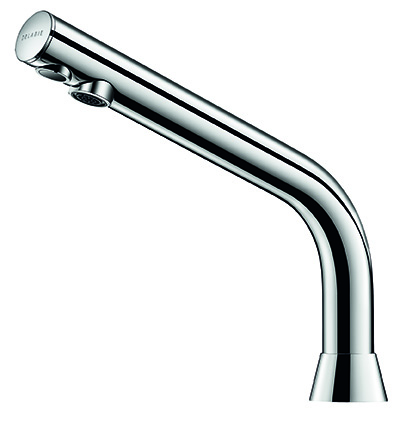

BINOPTIC electronic tap

Ref. 488015
Battery-operated
BINOPTIC electronic tap

Presentation

DESCRIPTION

BINOPTIC electronic tap

Ref. 488015
Deck-mounted electronic basin tap:
Independent IP65 electronic control unit.
123 6V Lithium batteries.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush ~60 seconds every 24 hours after last use).
Active, infrared presence detection, sensor at the end of the spout optimises detection.
Chrome-plated brass body.
PEX flexible with filter and solenoid valve M⅜".
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Spout with smooth interior and low water volume (reduces bacterial development).
Drop height: 170mm for semi-recessed washbasins.
Suitable for people with reduced mobility.
30-year warranty.

ADVANTAGES

Economie d'eau

90% water savings

Sans contact manuel

Hygiene: no manual contact

Maintenance aisée - Installation aisée

LED diagnostic aids

Design

Sleek design

Characteristics

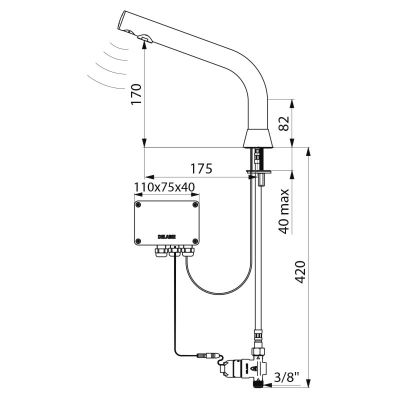

TECHNICAL CHARACTERISTICS

BINOPTIC electronic tap

Ref. 488015
Supply 6V battery
Connector M3/8"
Technology Electronic
Drop height 170mm
Spout length 175mm
Flow rate 3 lpm
Certificates ACS
Warranty 30-Year

Downloads

DOWNLOADS

BINOPTIC electronic tap

Ref. 488015

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

388015 Mains supply - Spout H. 170mm - M3/8"
38801515 Mains supply - Spout H. 170mm - Ø15mm compression fittings
398015 Mains supply - Spout H. 250mm - M3/8"
39801515 Mains supply - Spout H. 250mm - Ø15mm compression fittings
48801515 Battery operated - Spout H. 170mm - Ø15mm compression fittings
498015 Battery operated - Spout H. 250mm - M3/8"
49801515 Battery operated - Spout H.250mm - Ø15mm compression fittings
