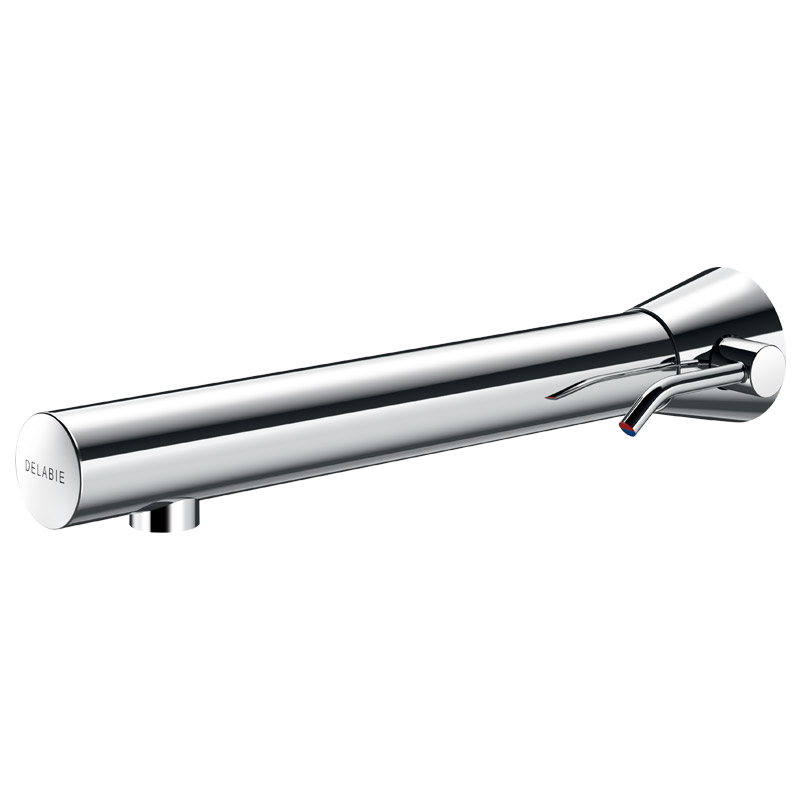

BINOPTIC MIX 2 electronic basin mixer

Ref. 482010

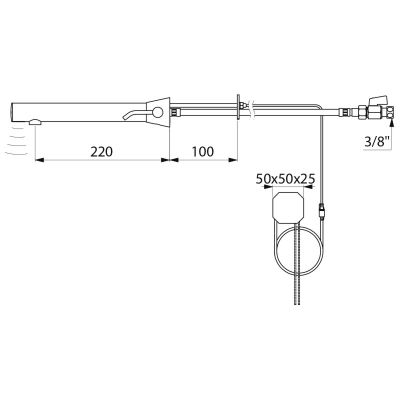

Mains, cross wall 100mm, stopcocks, L. 220mm
BINOPTIC MIX 2 electronic basin mixer

Presentation

DESCRIPTION

BINOPTIC MIX 2 electronic basin mixer

Ref. 482010
Provisional availability 1st half
2025
.
Please contact the sales office to check availability.
Cross wall chrome-plated electronic basin mixer:
230/6V mains supply.
Reduced-stagnation solenoid valve and electronic unit are integrated into the body of the mixer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant aerator.
Adjustable duty flush (pre-set flush ~60 seconds every 24 hours after last use).
Wall-mounted stainless steel mixer.
Sensor at the end of the spout optimises presence detection.
Anti-blocking security.
Spout with smooth interior and low water volume (reduces bacterial development).
Side temperature control with adjustable maximum temperature limiter.
Set presence detection range, duty flush and launch thermal shocks manually.
Suitable for people with reduced mobility.
30-year warranty.

ADVANTAGES

Economie d'eau

Exceptional water savings: 90%

Sans contact manuel

Hygiene: no manual contact

Rinçage périodique

Anti-bacterial proliferation duty flush

Maintenance aisée - Installation aisée

LED diagnostic aid

Characteristics

TECHNICAL CHARACTERISTICS

BINOPTIC MIX 2 electronic basin mixer

Ref. 482010
Supply 230/6V mains supply
Connector F3/8"
Technology Electronic
Spout length 220mm
Flow rate 3 lpm
Finish Chrome-plated
Warranty 30-Year

Downloads

DOWNLOADS

BINOPTIC MIX 2 electronic basin mixer

Ref. 482010

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

48201015 Chrome-plated: L.220mm, Ø 15mm compression fittings, cross wall
482110 Chrome-plated: L.220mm, F3/8", for cross wall installation
484000 Satin: L.240mm, for cross wall installation, M1/2"
484010 Chrome-plated: L.240mm, recessed supply M1/2"
484010E Chrome-plated: L.240mm, recessed union M1/2", Bluetooth connectivity
