BINOPTIC MIX 2 electronic basin mixer

Ref. 47501015
Mains, deck-mounted, stopcocks, H. 250mm

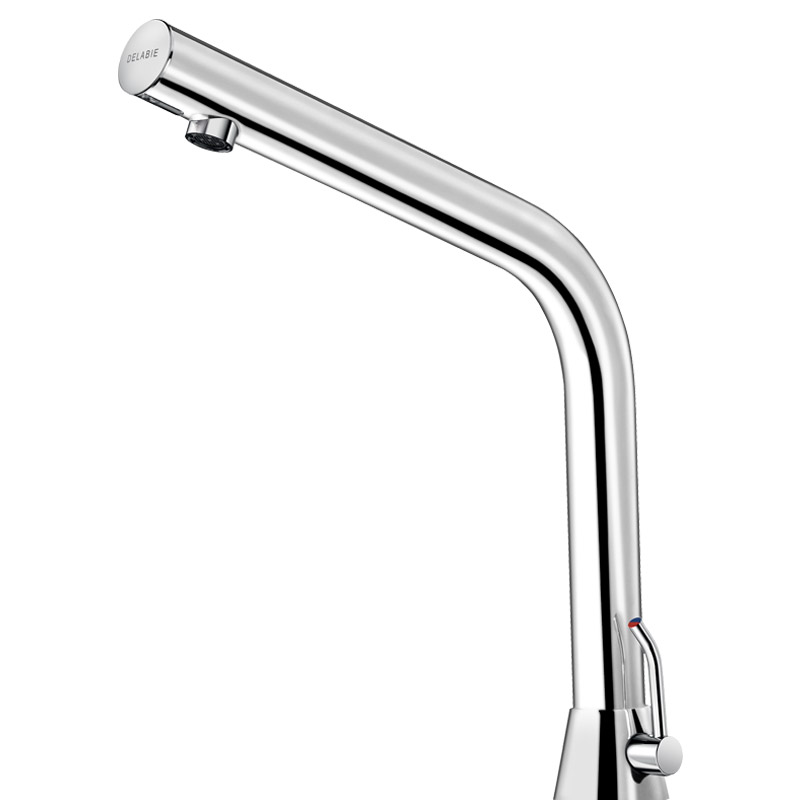

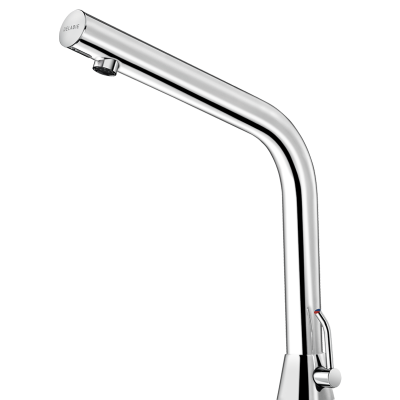

BINOPTIC MIX 2 electronic basin mixer

Presentation

DESCRIPTION

BINOPTIC MIX 2 electronic basin mixer

Ref. 47501015
Provisional availability 2nd half
2025
.
Please contact the sales office to check availability.
Deck-mounted chrome-plated electronic basin mixer:
230/6V mains supply.
Reduced stagnation solenoid valve and electronic unit integrated into the body of the mixer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant aerator.
Adjustable duty flush (~60 seconds every 24 hours after the last use).
Stainless steel mixer, 250mm high for countertop basins.
Presence detection sensor at the end of the spout optimises detection.
PEX flexibles with stopcocks, filters, non-return valves and Ø 15mm conical inlets.
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Smooth spout interior with low water volume (reduces bacterial development).
Side temperature control with adjustable maximum temperature limiter.
Set detection distance, duty flush and launch thermal shocks manually.
Suitable for people with reduced mobility.
30-year warranty.

ADVANTAGES

Economie d'eau

Exceptional water savings: 90%

Sans contact manuel

Hygiene: no manual contact

Rinçage périodique

Anti-bacterial proliferation duty flush

Maintenance aisée - Installation aisée

LED diagnostic aids

Characteristics

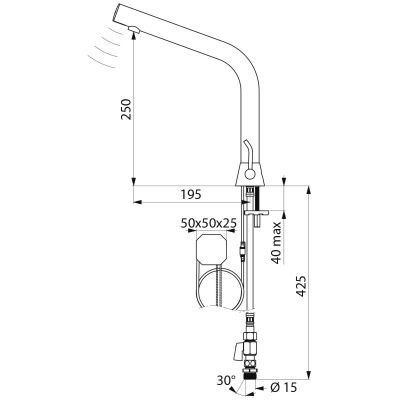

TECHNICAL CHARACTERISTICS

BINOPTIC MIX 2 electronic basin mixer

Ref. 47501015
Supply 230/6V mains supply
Connector M½" Ø 15mm
Technology Electronic
Drop height 250mm
Flow rate 3 lpm
Finish Chrome-plated
Warranty 30-Year

Downloads

DOWNLOADS

BINOPTIC MIX 2 electronic basin mixer

Ref. 47501015

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

475110 Chrome finish - mains supply 230/6V - F3/8"
475110E Chrome finish -bluetooth connectivity - mains supply 230/6V
475116 Chrome finish - 6V batteries - F3/8"
47501615 Chrome finish - 6V batteries - Ø 15mm compression fittings
475100 Satin finish - mains supply 230/6V - F3/8"
47500015 Satin finish - mains supply 230/6V - Ø 15mm compression fittings
475106 Satin finish - 6V batteries - F3/8"
47500615 Satin finish - 6V batteries - Ø 15mm compression fittings
475130 Mains supply 230/6V - F3/8"
475136 Operated by 6V batteries - F3/8"

VARIANTS

475110 Chrome finish - mains supply 230/6V - F3/8"
475110E Chrome finish -bluetooth connectivity - mains supply 230/6V
475116 Chrome finish - 6V batteries - F3/8"
47501615 Chrome finish - 6V batteries - Ø 15mm compression fittings
475100 Satin finish - mains supply 230/6V - F3/8"
47500015 Satin finish - mains supply 230/6V - Ø 15mm compression fittings
475106 Satin finish - 6V batteries - F3/8"
47500615 Satin finish - 6V batteries - Ø 15mm compression fittings
475130 Mains supply 230/6V - F3/8"
475136 Operated by 6V batteries - F3/8"
