DESCRIPTION

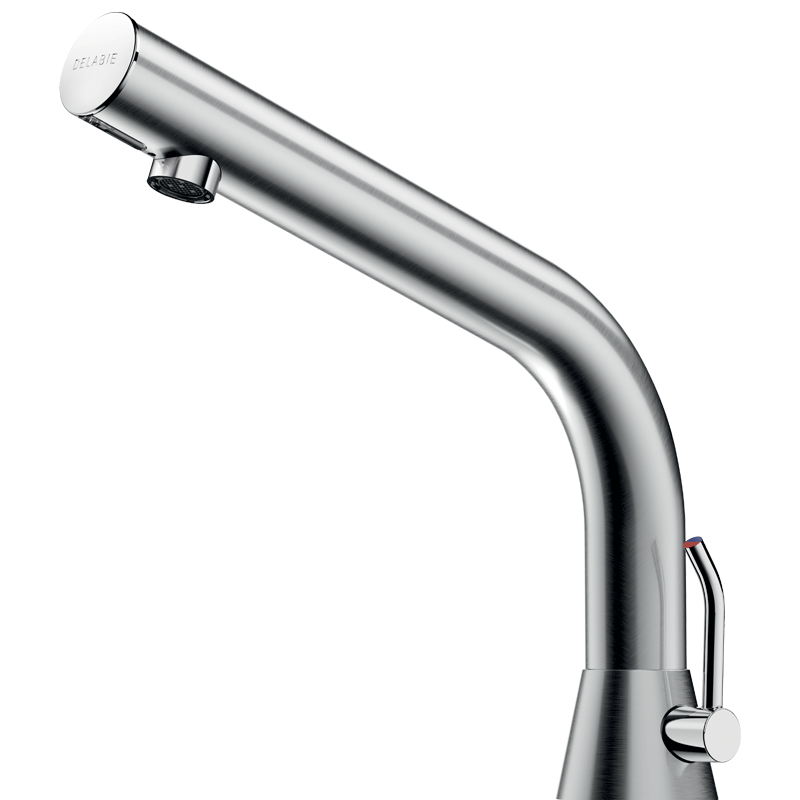

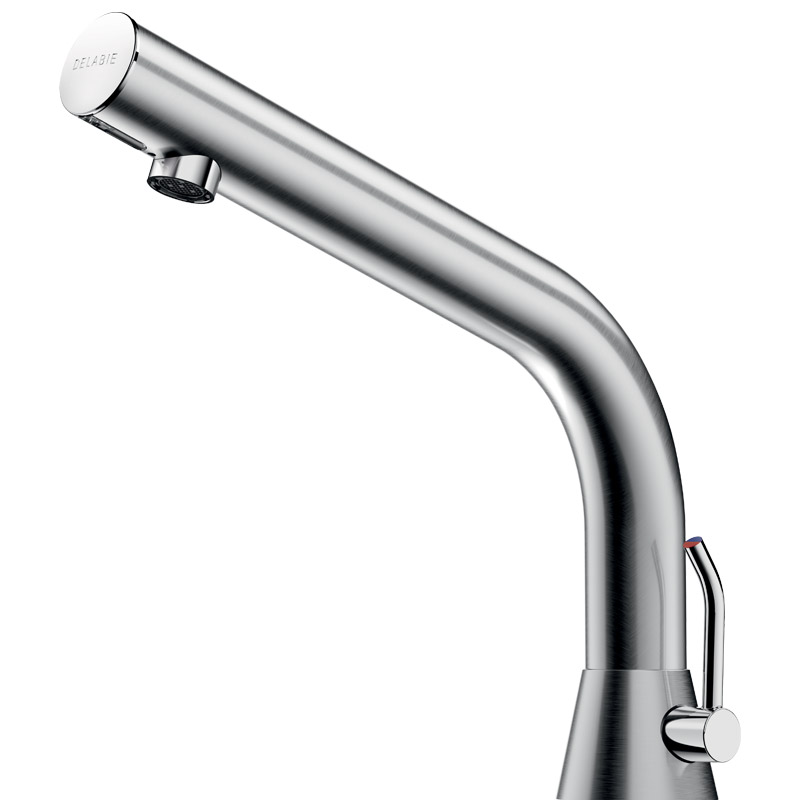

BINOPTIC MIX 2 electronic basin mixer
Ref. 474106
Provisional availability 1st half
Please contact the sales office to check availability.
2026
.
Please contact the sales office to check availability.
Deck-mounted satin electronic basin mixer:
Operated by CR123 6V Lithium batteries.
Reduced stagnation solenoid valve and electronic unit integrated into the body of the mixer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant aerator.
Adjustable duty flush (~60 seconds every 24 hours after the last use).

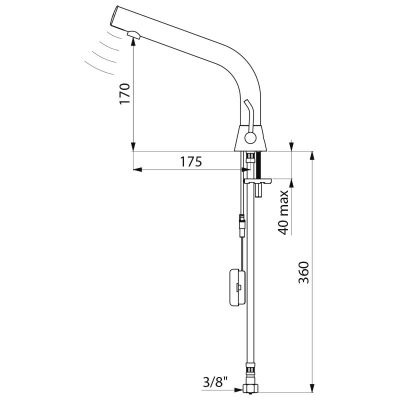

Stainless steel mixer, 170mm high for semi-recessed basins.
Sensor at the end of the spout optimises detection.
PEX flexibles F3/8" with filters and non-return valves.
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Spout with smooth interior and low water volume (reduces niches where bacteria can develop).
Side temperature control with adjustable maximum temperature limiter.
Set presence detection range, duty flush and launch thermal shocks manually.
Suitable for people with reduced mobility.
30-year warranty.
Operated by CR123 6V Lithium batteries.
Reduced stagnation solenoid valve and electronic unit integrated into the body of the mixer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant aerator.
Adjustable duty flush (~60 seconds every 24 hours after the last use).
Stainless steel mixer, 170mm high for semi-recessed basins.
Sensor at the end of the spout optimises detection.
PEX flexibles F3/8" with filters and non-return valves.
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Spout with smooth interior and low water volume (reduces niches where bacteria can develop).
Side temperature control with adjustable maximum temperature limiter.
Set presence detection range, duty flush and launch thermal shocks manually.
Suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES
Exceptional water savings: 90%
Hygiene: no manual contact
Anti-bacterial proliferation duty flush
LED diagnostic aids
TECHNICAL CHARACTERISTICS
BINOPTIC MIX 2 electronic basin mixer
Ref. 474106Supply | 6V batteries |
Connector | M3/8" |
Technology | Electronic |
Drop height | 170mm |
Flow rate | 3 lpm |
Finish | Satin |
Certificates | |
Warranty |
VARIANTS
474110 | Chrome finish - mains supply 230/6V - F3/8" | ||
---|---|---|---|
47401015 | Chrome finish - mains supply 230/6V - Ø 15mm compression fittings | ||
474110E | Chrome finish -bluetooth connectivity - mains supply 230/6V | ||
47400615 | Brushed finish - 6V batteries - Ø 15mm compression fittings | ||
474116 | Chrome finish - 6V batteries - F3/8" | ||
47401615 | Chrome finish - 6V batteries - Ø 15mm compression fittings | ||
474100 | Satin finish - mains supply 230/6V - F3/8" | ||
47400015 | Satin finish - mains supply 230/6V - Ø 15mm compression fittings | ||
474130 | Mains supply 230/6V - F3/8" | ||
474136 | Operated by 6V batteries - F3/8" |
VARIANTS
474110 | Chrome finish - mains supply 230/6V - F3/8" | ||
---|---|---|---|
47401015 | Chrome finish - mains supply 230/6V - Ø 15mm compression fittings | ||
474110E | Chrome finish -bluetooth connectivity - mains supply 230/6V | ||
47400615 | Brushed finish - 6V batteries - Ø 15mm compression fittings | ||
474116 | Chrome finish - 6V batteries - F3/8" | ||
47401615 | Chrome finish - 6V batteries - Ø 15mm compression fittings | ||
474100 | Satin finish - mains supply 230/6V - F3/8" | ||
47400015 | Satin finish - mains supply 230/6V - Ø 15mm compression fittings | ||
474130 | Mains supply 230/6V - F3/8" | ||
474136 | Operated by 6V batteries - F3/8" |
