DESCRIPTION

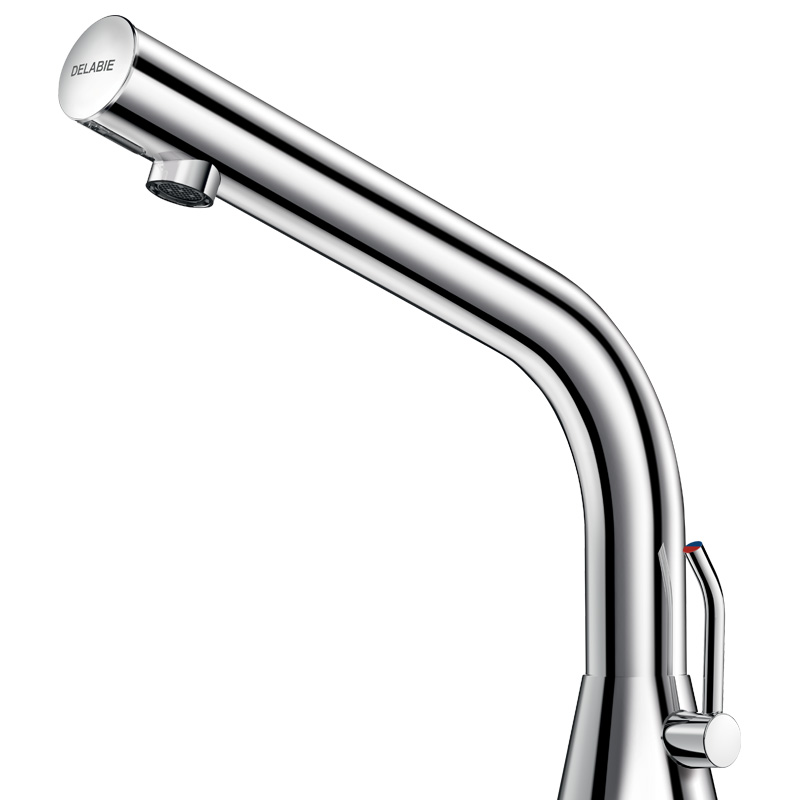

BINOPTIC MIX 2 electronic basin mixer
Ref. 47401015
Provisional availability 2nd half
Please contact the sales office to check availability.
2025
.
Please contact the sales office to check availability.
Deck-mounted chrome-plated electronic basin mixer:
230/6V mains supply.
Reduced stagnation solenoid valve and electronic unit integrated into the body of the mixer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant aerator.
Adjustable duty flush (~60 seconds every 24 hours after the last use).
Stainless steel mixer, 170mm high for semi-recessed basins.
Presence detection sensor at the end of the spout optimises detection.
PEX flexibles with stopcocks, filters, non-return valves and Ø 15mm conical inlets.
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Smooth spout interior with low water volume (reduces bacterial development).
Side temperature control with adjustable maximum temperature limiter.
Set detection presence duty flush and launch thermal shocks manually.
Suitable for people with reduced mobility.
30-year warranty.
230/6V mains supply.
Reduced stagnation solenoid valve and electronic unit integrated into the body of the mixer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant aerator.
Adjustable duty flush (~60 seconds every 24 hours after the last use).
Stainless steel mixer, 170mm high for semi-recessed basins.
Presence detection sensor at the end of the spout optimises detection.
PEX flexibles with stopcocks, filters, non-return valves and Ø 15mm conical inlets.
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Smooth spout interior with low water volume (reduces bacterial development).
Side temperature control with adjustable maximum temperature limiter.
Set detection presence duty flush and launch thermal shocks manually.
Suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES
Exceptional water savings: 90%
Hygiene: no manual contact
Anti-bacterial proliferation duty flush
LED diagnostic aids

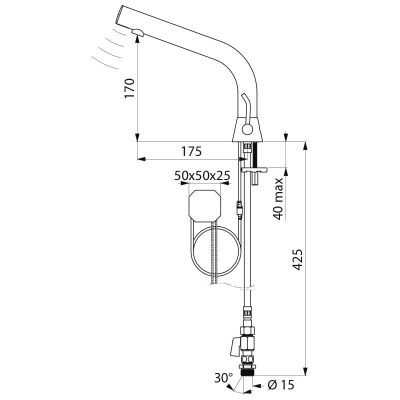

TECHNICAL CHARACTERISTICS
BINOPTIC MIX 2 electronic basin mixer
Ref. 47401015Supply | 230/6V mains supply |
Connector | M½" Ø 15mm |
Technology | Electronic |
Drop height | 170mm |
Flow rate | 3 lpm |
Finish | Chrome-plated |
Warranty |
VARIANTS
474110 | Chrome finish - mains supply 230/6V - F3/8" | ||
---|---|---|---|
474110E | Chrome finish -bluetooth connectivity - mains supply 230/6V | ||
474116 | Chrome finish - 6V batteries - F3/8" | ||
47400615 | Brushed finish - 6V batteries - Ø 15mm compression fittings | ||
47401615 | Chrome finish - 6V batteries - Ø 15mm compression fittings | ||
474100 | Satin finish - mains supply 230/6V - F3/8" | ||
47400015 | Satin finish - mains supply 230/6V - Ø 15mm compression fittings | ||
474106 | Satin finish - 6V batteries - F3/8" | ||
474130 | Mains supply 230/6V - F3/8" | ||
474136 | Operated by 6V batteries - F3/8" |
VARIANTS
474110 | Chrome finish - mains supply 230/6V - F3/8" | ||
---|---|---|---|
474110E | Chrome finish -bluetooth connectivity - mains supply 230/6V | ||
474116 | Chrome finish - 6V batteries - F3/8" | ||
47400615 | Brushed finish - 6V batteries - Ø 15mm compression fittings | ||
47401615 | Chrome finish - 6V batteries - Ø 15mm compression fittings | ||
474100 | Satin finish - mains supply 230/6V - F3/8" | ||
47400015 | Satin finish - mains supply 230/6V - Ø 15mm compression fittings | ||
474106 | Satin finish - 6V batteries - F3/8" | ||
474130 | Mains supply 230/6V - F3/8" | ||
474136 | Operated by 6V batteries - F3/8" |
